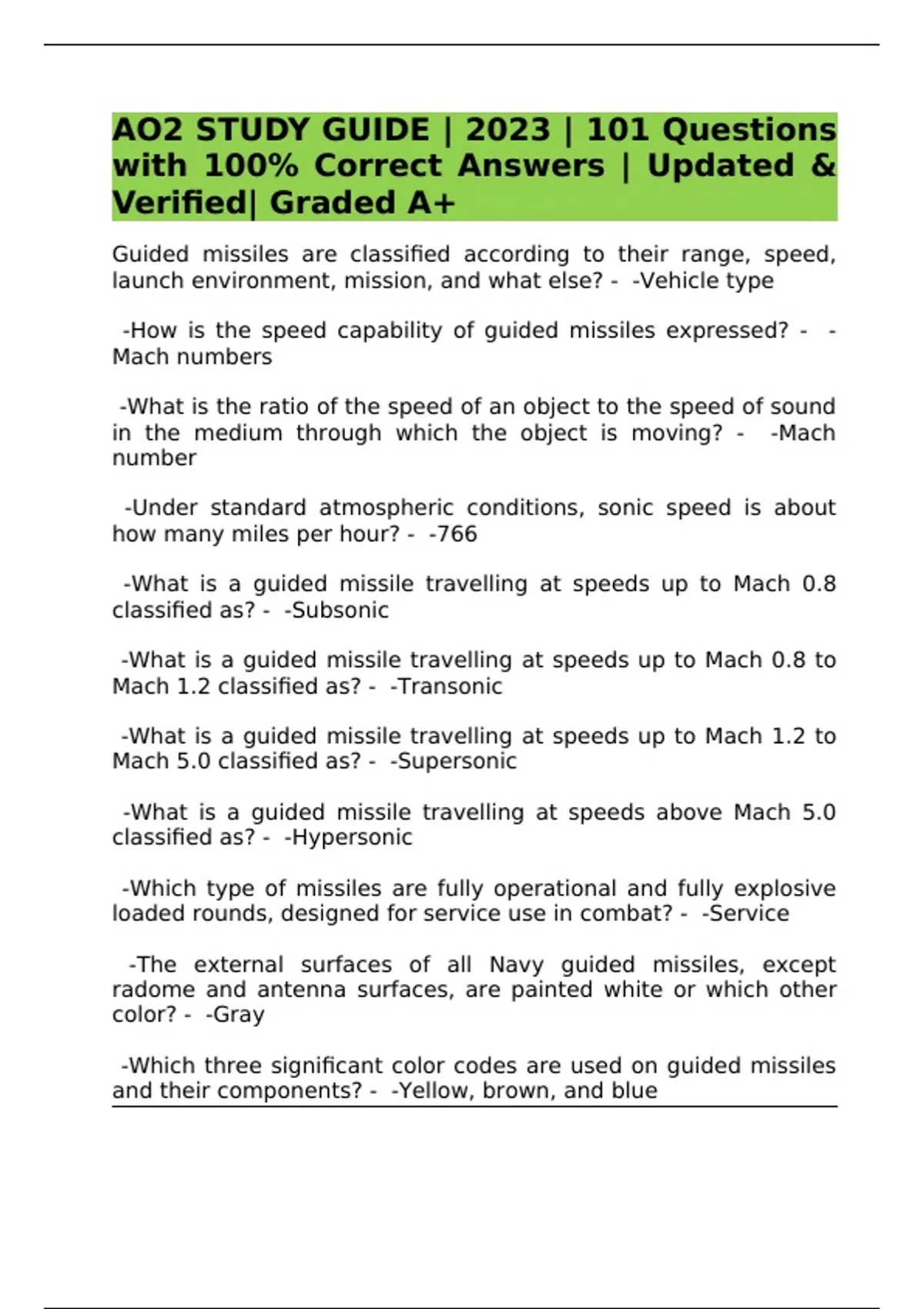

AO2 STUDY GUIDE | 2023 | 101 Questions
with 100% Correct Answers | Updated &
Verified| Graded A+
Guided missiles are classified according to their range, speed,
launch environment, mission, and what else? - -Vehicle type
-How is the speed capability of guided missiles expressed? - -
Mach numbers
-What is the ratio of the speed of an object to the speed of sound
in the medium through which the object is moving? - -Mach
number
-Under standard atmospheric conditions, sonic speed is about
how many miles per hour? - -766
-What is a guided missile travelling at speeds up to Mach 0.8
classified as? - -Subsonic
-What is a guided missile travelling at speeds up to Mach 0.8 to
Mach 1.2 classified as? - -Transonic
-What is a guided missile travelling at speeds up to Mach 1.2 to
Mach 5.0 classified as? - -Supersonic
-What is a guided missile travelling at speeds above Mach 5.0
classified as? - -Hypersonic
-Which type of missiles are fully operational and fully explosive
loaded rounds, designed for service use in combat? - -Service
-The external surfaces of all Navy guided missiles, except
radome and antenna surfaces, are painted white or which other
color? - -Gray
-Which three significant color codes are used on guided missiles
and their components? - -Yellow, brown, and blue
, -Which section is the brain of the missile which directs it's
maneuvers and causes the maneuvers to be executed by the
control section? - -Guidance
-In which type of homing system does the missile get its target
illumination from an external source, such as a transmitter carried
in the launching aircraft? - -Semi-active
-Which element or part of the missile that does what a particular
missile is launched to do? - -Payload
-There are two general types of fuzes used in guided missiles--
proximity fuzes and which other type? - -Contact
-What are electronic detecting devices similar to the detecting
systems in VT fuzes that detect the presence of a target and
determine the moment of firing? - -TDDs
-There are three types of atmospheric jet propulsion systems--the
turbojet, pulsejet, and what else? - -Ramjet engines
-Which type of rocket motor does the majority of air-launched
guided missiles used by the Navy use? - -Solid propellant
-Which type of missile is the AIM-7M/P missile? - -Semi-active
-Which type of missile has a low-level cruise trajectory with over-
the-horizon range that makes it less susceptible to radar
detection? - -Harpoon
-Which type of guided missiles are supersonic, air-to-air weapons
with weapons with passive infrared target detection, proportional
navigation guidance, and torque-balance control systems? - -
Sidewinder
-What provides AIM-9X flight control and connects to the aft end
of the rocket motor? - -FAU
