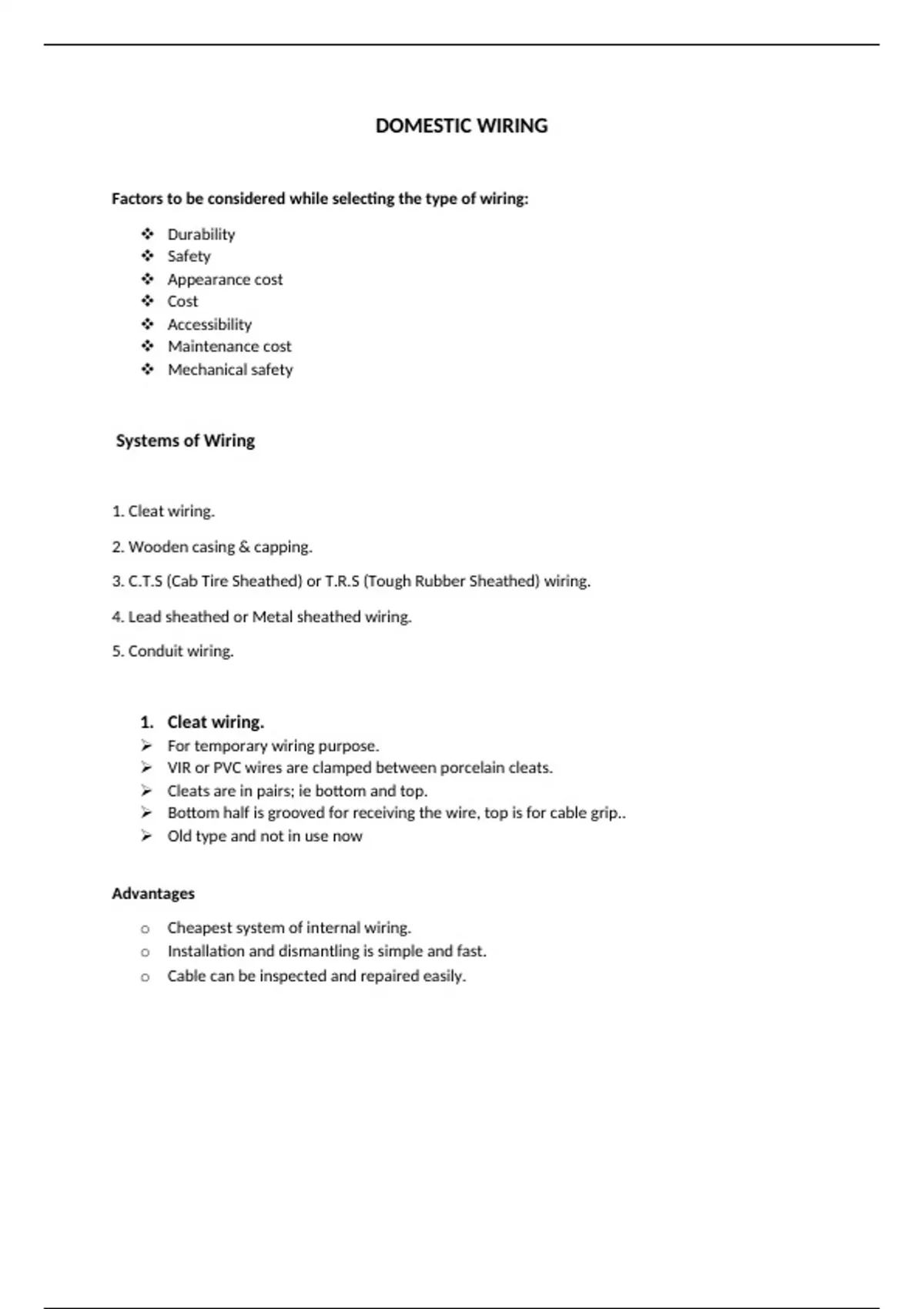

DOMESTIC WIRING
Factors to be considered while selecting the type of wiring:
Durability
Safety
Appearance cost
Cost
Accessibility
Maintenance cost
Mechanical safety
Systems of Wiring
1. Cleat wiring.
2. Wooden casing & capping.
3. C.T.S (Cab Tire Sheathed) or T.R.S (Tough Rubber Sheathed) wiring.
4. Lead sheathed or Metal sheathed wiring.
5. Conduit wiring.
1. Cleat wiring.
For temporary wiring purpose.
VIR or PVC wires are clamped between porcelain cleats.
Cleats are in pairs; ie bottom and top.
Bottom half is grooved for receiving the wire, top is for cable grip..
Old type and not in use now
Advantages
o Cheapest system of internal wiring.
o Installation and dismantling is simple and fast.
o Cable can be inspected and repaired easily.
