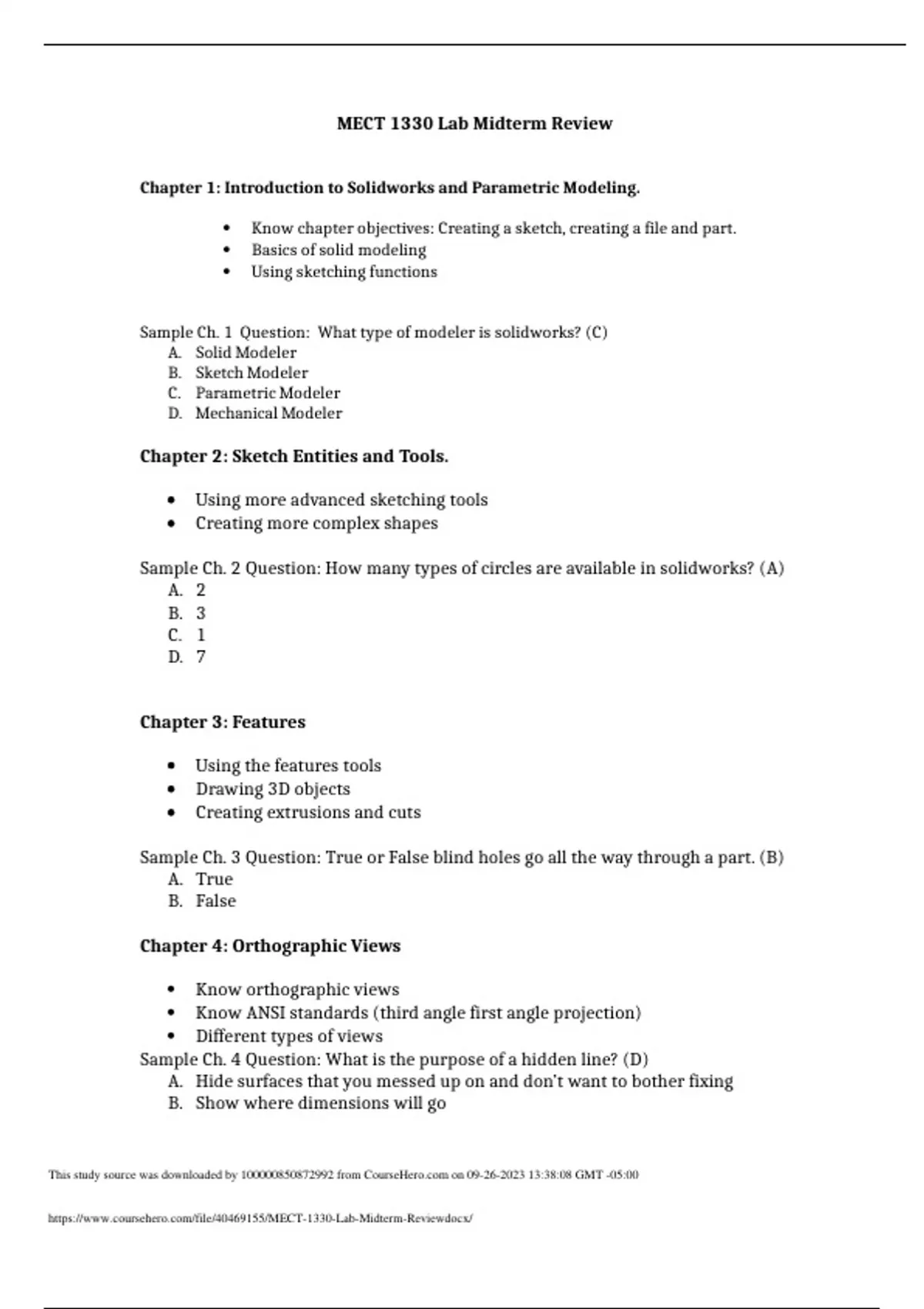

MECT 1330 Lab Midterm Review Chapter 1: Introduction to Solidworks and Parametric Modeling.  Know chapter objectives: Creating a sketch, creating a file and part.  Basics of solid modeling  Using sketching functions Sample Ch. 1 Question: What type of modeler is solidworks? (C) A. Solid Modeler B. Sketch Modeler C. Parametric Modeler D. Mechanical Modeler Chapter 2: Sketch Entities and Tools.  Using more advanced sketching tools  Creating more complex shapes Sample Ch. 2 Question: How many types of circles are available in solidworks? (A) A. 2 B. 3 C. 1 D. 7 Chapter 3: Features  Using the features tools  Drawing 3D objects  Creating extrusions and cuts Sample Ch. 3 Question: True or False blind holes go all the way through a part. (B) A. True B. False Chapter 4: Orthographic Views  Know orthographic views  Know ANSI standards (third angle first angle projection)  Different types of view
