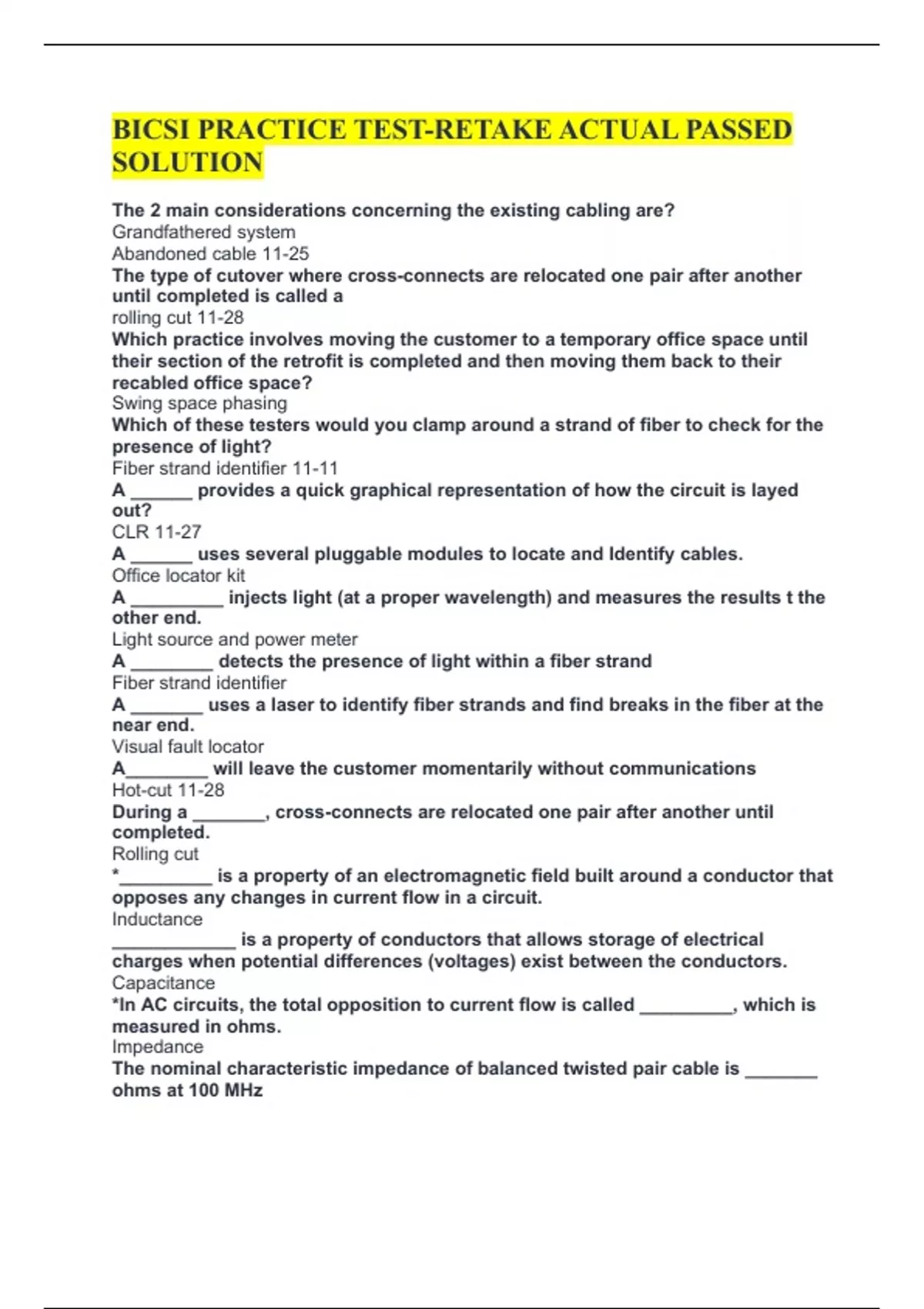

BICSI PRACTICE TEST-RETAKE ACTUAL PASSED
SOLUTION
The 2 main considerations concerning the existing cabling are?
Grandfathered system
Abandoned cable 11-25
The type of cutover where cross-connects are relocated one pair after another
until completed is called a
rolling cut 11-28
Which practice involves moving the customer to a temporary office space until
their section of the retrofit is completed and then moving them back to their
recabled office space?
Swing space phasing
Which of these testers would you clamp around a strand of fiber to check for the
presence of light?
Fiber strand identifier 11-11
A ______ provides a quick graphical representation of how the circuit is layed
out?
CLR 11-27
A ______ uses several pluggable modules to locate and Identify cables.
Office locator kit
A _________ injects light (at a proper wavelength) and measures the results t the
other end.
Light source and power meter
A ________ detects the presence of light within a fiber strand
Fiber strand identifier
A _______ uses a laser to identify fiber strands and find breaks in the fiber at the
near end.
Visual fault locator
A________ will leave the customer momentarily without communications
Hot-cut 11-28
During a _______, cross-connects are relocated one pair after another until
completed.
Rolling cut
*_________ is a property of an electromagnetic field built around a conductor that
opposes any changes in current flow in a circuit.
Inductance
____________ is a property of conductors that allows storage of electrical
charges when potential differences (voltages) exist between the conductors.
Capacitance
*In AC circuits, the total opposition to current flow is called _________, which is
measured in ohms.
Impedance
The nominal characteristic impedance of balanced twisted pair cable is _______
ohms at 100 MHz
, 100
Pair 626 would be in the __________ Super Binder
Red
Series ______ is the preferred choice for longer runs
11
The _________ connector/s have center pins (choose all that apply)
N
BNC
The way in which others perceive an employee can be divided into 3 distinct
areas: body language, Tone of voice and choice of words. Which of the 3 makes
the biggest impression?
Body language - 55%
The range of human hearing is from _________
20 Hz- 20,000 Hz
An increase of _______ will result in a doubling or halving of the power.
3 dB
Increases or decreases of ________ for voltage will cause an increase or
decrease of 10 times the original value.
6 dB
The code stands for "flush-or surface-mounted jack"
C
A "push to talk" intercom system would be an example of a ______ transmission
method.
half-duplex 1-1
__________ quantifies the bandwidth of a cabling system in a frequency range of
interest.
Megahertz
_________ refers to the amount of information that can be transported over the
media.
Megabit
A gauge change of ____ numbers approximately doubles or halves the
conductors resistance
3
A gauge change of _______numbers approximately doubles or halves the
conductors diameter
6
______ is not recommended for new installations (what type of fiber)
OM2
What type of fibers typically support wavelengths of 850 nm and 1300nm
OM1
OM2
OM3
Which fiber is typically loose tube construction and is used outdoors
OS2 (outside plant fiber)
Which fiber/s could I use for a LAN application where the distance between
telecommunication spaces is 8,000'
