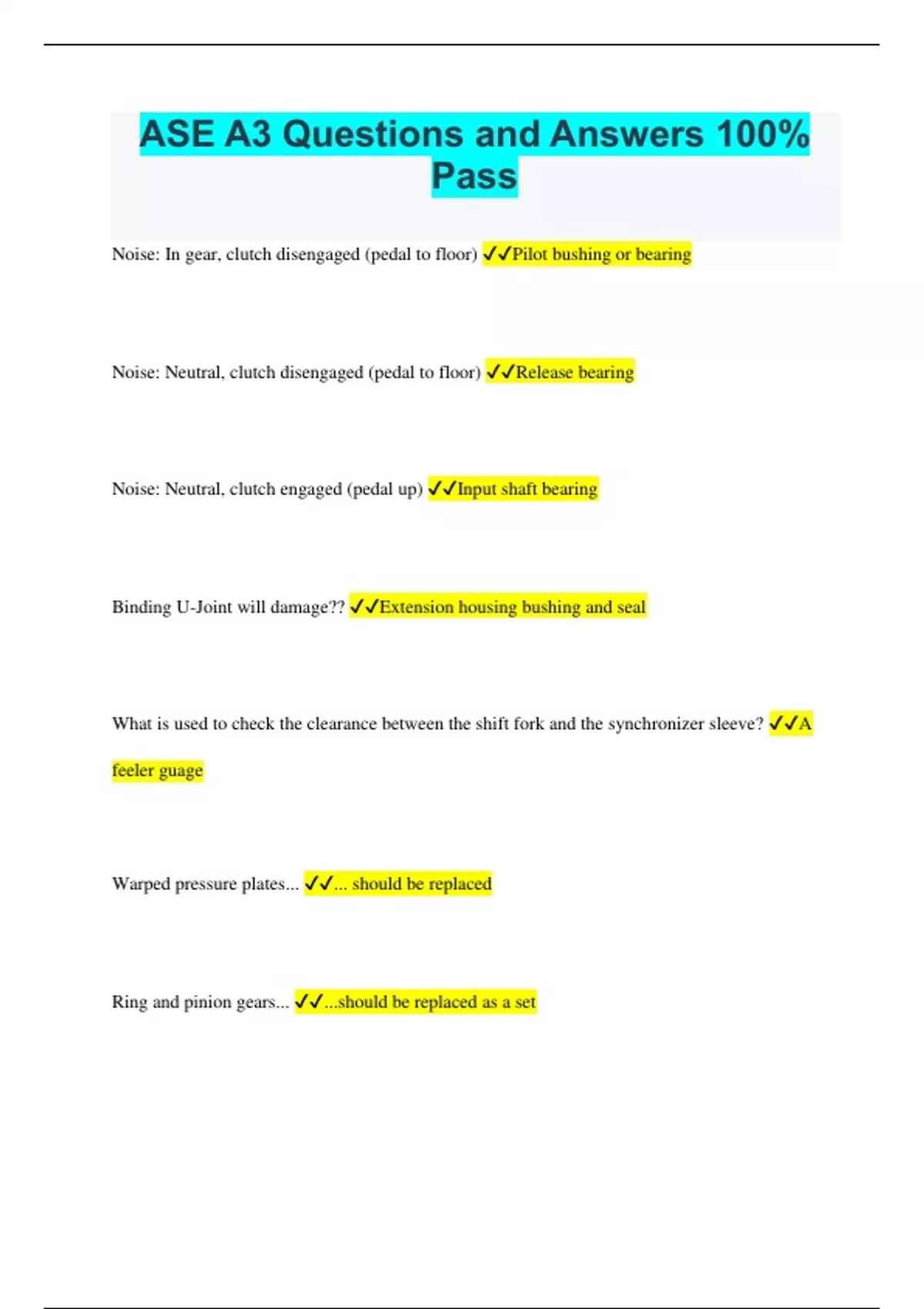

ASE A3 Questions and Answers 100%
Pass
Noise: In gear, clutch disengaged (pedal to floor) ✔✔Pilot bushing or bearing
Noise: Neutral, clutch disengaged (pedal to floor) ✔✔Release bearing
Noise: Neutral, clutch engaged (pedal up) ✔✔Input shaft bearing
Binding U-Joint will damage?? ✔✔Extension housing bushing and seal
What is used to check the clearance between the shift fork and the synchronizer sleeve? ✔✔A
feeler guage
Warped pressure plates... ✔✔... should be replaced
Ring and pinion gears... ✔✔...should be replaced as a set
, What tool is used to measure ring gear runout? ✔✔A dial guage
How many times can a collapsible sleeve be tightened? ✔✔Once, and must be replaced if over
tightened.
What tool is used to check pinion bearing preload? ✔✔Inch pound torque wrench
How much vacuum is required to operate a transfer case? ✔✔15hg
What type of bearings require preload? ✔✔Tapered roller bearings
Can a bad speed sensor affect shift pattern? ✔✔Yes
What is a viscous clutch designed for? ✔✔Compensating for differences in axle rotation
What kind of noise will chipped gear teeth make? ✔✔Growling or grinding noise
Bell housing transmission bore and the rear face should be checked for? ✔✔Runout
Pass
Noise: In gear, clutch disengaged (pedal to floor) ✔✔Pilot bushing or bearing
Noise: Neutral, clutch disengaged (pedal to floor) ✔✔Release bearing
Noise: Neutral, clutch engaged (pedal up) ✔✔Input shaft bearing
Binding U-Joint will damage?? ✔✔Extension housing bushing and seal
What is used to check the clearance between the shift fork and the synchronizer sleeve? ✔✔A
feeler guage
Warped pressure plates... ✔✔... should be replaced
Ring and pinion gears... ✔✔...should be replaced as a set
, What tool is used to measure ring gear runout? ✔✔A dial guage
How many times can a collapsible sleeve be tightened? ✔✔Once, and must be replaced if over
tightened.
What tool is used to check pinion bearing preload? ✔✔Inch pound torque wrench
How much vacuum is required to operate a transfer case? ✔✔15hg
What type of bearings require preload? ✔✔Tapered roller bearings
Can a bad speed sensor affect shift pattern? ✔✔Yes
What is a viscous clutch designed for? ✔✔Compensating for differences in axle rotation
What kind of noise will chipped gear teeth make? ✔✔Growling or grinding noise
Bell housing transmission bore and the rear face should be checked for? ✔✔Runout
