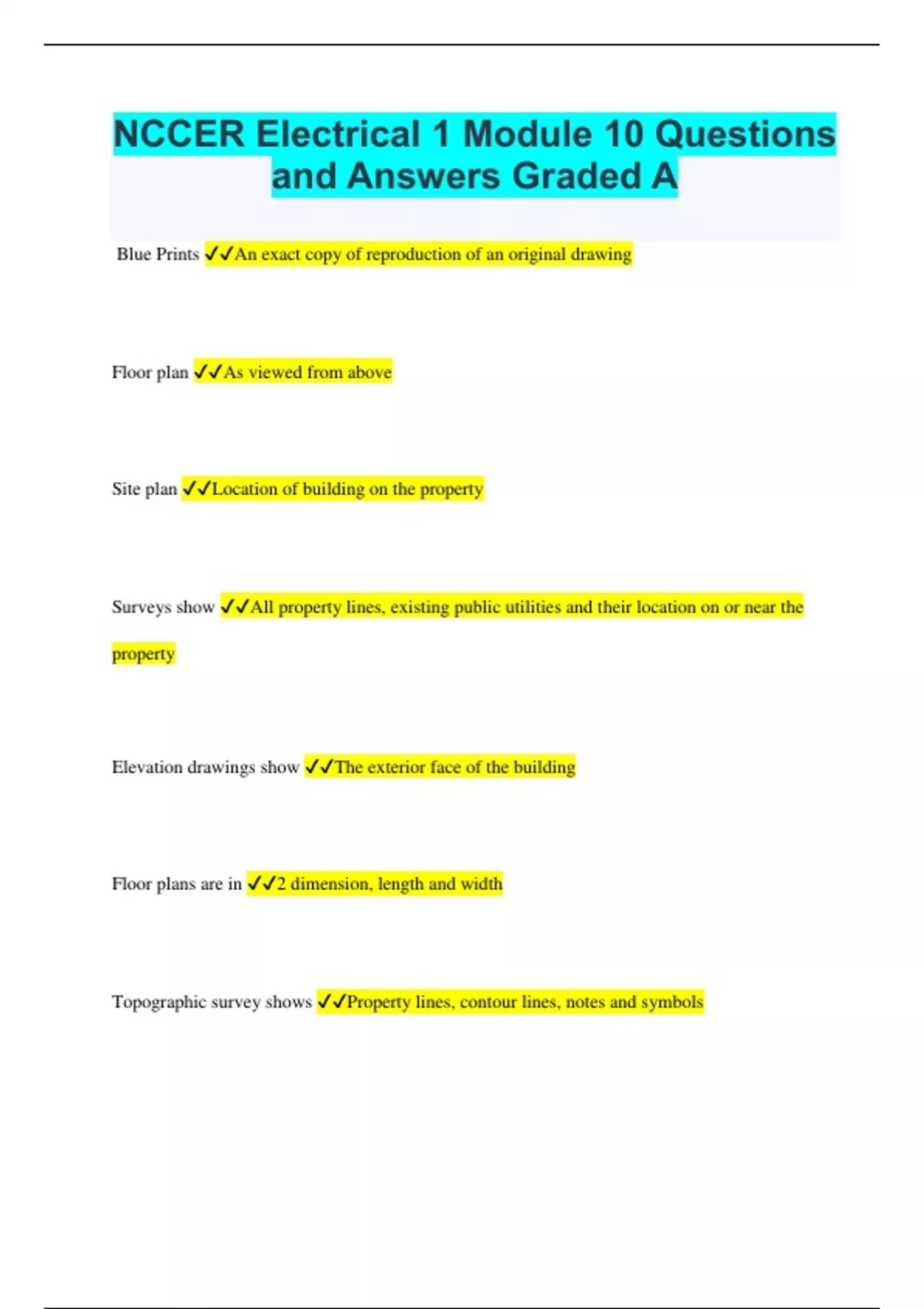

NCCER Electrical 1 Module 10 Questions
and Answers Graded A
Blue Prints ✔✔An exact copy of reproduction of an original drawing
Floor plan ✔✔As viewed from above
Site plan ✔✔Location of building on the property
Surveys show ✔✔All property lines, existing public utilities and their location on or near the
property
Elevation drawings show ✔✔The exterior face of the building
Floor plans are in ✔✔2 dimension, length and width
Topographic survey shows ✔✔Property lines, contour lines, notes and symbols
, Sectional view ✔✔Is a cutaway view that shows the inside of the building
Title block ✔✔A table located in the bottom right-hand corner of an engineering drawing that
identifies, in an organized way, all of the necessary information that is not given on the drawing
itself. Also referred to as a title strip.
Revision Block ✔✔Shows modifications or redrawn drawings
Architectural scale ✔✔1/16" = 1', 1/8" = 1' 1/4" = 1
Engineer scale measurements ✔✔1"=10 units through 1"=100 units
Metric scale 1:1 to 1:100 ✔✔Millimeters are used
Metric scale 1:200 to 1:2000 ✔✔Meter is used
CAD ✔✔Computer aided design
and Answers Graded A
Blue Prints ✔✔An exact copy of reproduction of an original drawing
Floor plan ✔✔As viewed from above
Site plan ✔✔Location of building on the property
Surveys show ✔✔All property lines, existing public utilities and their location on or near the
property
Elevation drawings show ✔✔The exterior face of the building
Floor plans are in ✔✔2 dimension, length and width
Topographic survey shows ✔✔Property lines, contour lines, notes and symbols
, Sectional view ✔✔Is a cutaway view that shows the inside of the building
Title block ✔✔A table located in the bottom right-hand corner of an engineering drawing that
identifies, in an organized way, all of the necessary information that is not given on the drawing
itself. Also referred to as a title strip.
Revision Block ✔✔Shows modifications or redrawn drawings
Architectural scale ✔✔1/16" = 1', 1/8" = 1' 1/4" = 1
Engineer scale measurements ✔✔1"=10 units through 1"=100 units
Metric scale 1:1 to 1:100 ✔✔Millimeters are used
Metric scale 1:200 to 1:2000 ✔✔Meter is used
CAD ✔✔Computer aided design
