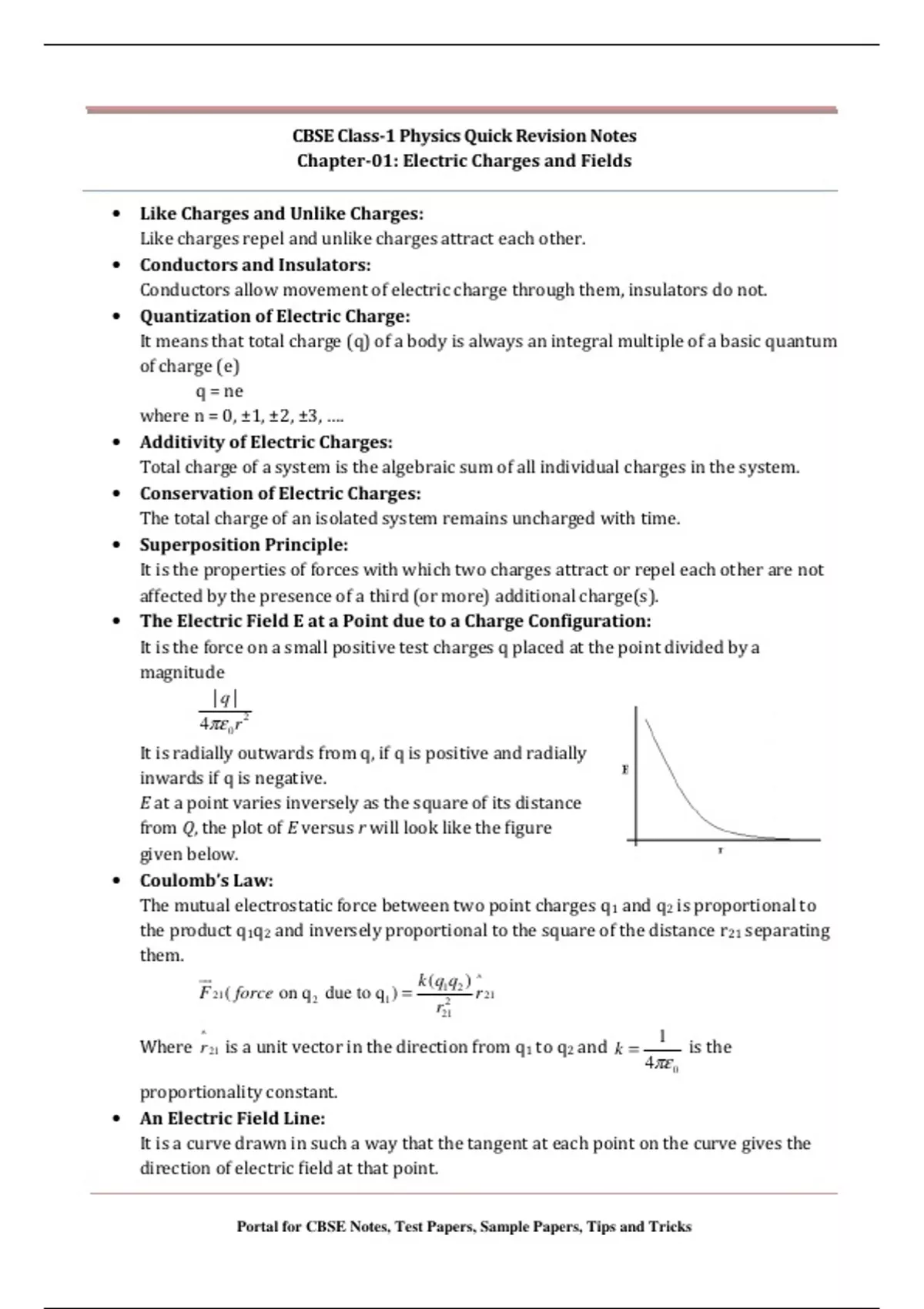

CBSE Class-1 Physics Quick Revision Notes
Chapter-01: Electric Charges and Fields
• Like Charges and Unlike Charges:
Like charges repel and unlike charges attract each other.
• Conductors and Insulators:
Conductors allow movement of electric charge through them, insulators do not.
• Quantization of Electric Charge:
It means that total charge (q) of a body is always an integral multiple of a basic quantum
of charge (e)
q = ne
where n = 0, ±1, ±2, ±3, ….
• Additivity of Electric Charges:
Total charge of a system is the algebraic sum of all individual charges in the system.
• Conservation of Electric Charges:
The total charge of an isolated system remains uncharged with time.
• Superposition Principle:
It is the properties of forces with which two charges attract or repel each other are not
affected by the presence of a third (or more) additional charge(s).
• The Electric Field E at a Point due to a Charge Configuration:
It is the force on a small positive test charges q placed at the point divided by a
magnitude
|q|
4πε 0 r 2
It is radially outwards from q, if q is positive and radially
inwards if q is negative.
E at a point varies inversely as the square of its distance
from Q, the plot of E versus r will look like the figure
given below.
• Coulomb’s Law:
The mutual electrostatic force between two point charges q1 and q2 is proportional to
the product q1q2 and inversely proportional to the square of the distance r21 separating
them.
k ( q1q2 ) ^
F 21 ( force on q 2 due to q1 ) = r 21
r212
^ 1
Where r 21 is a unit vector in the direction from q1 to q2 and k = is the
4πε 0
proportionality constant.
• An Electric Field Line:
It is a curve drawn in such a way that the tangent at each point on the curve gives the
direction of electric field at that point.
Portal for CBSE Notes, Test Papers, Sample Papers, Tips and Tricks
