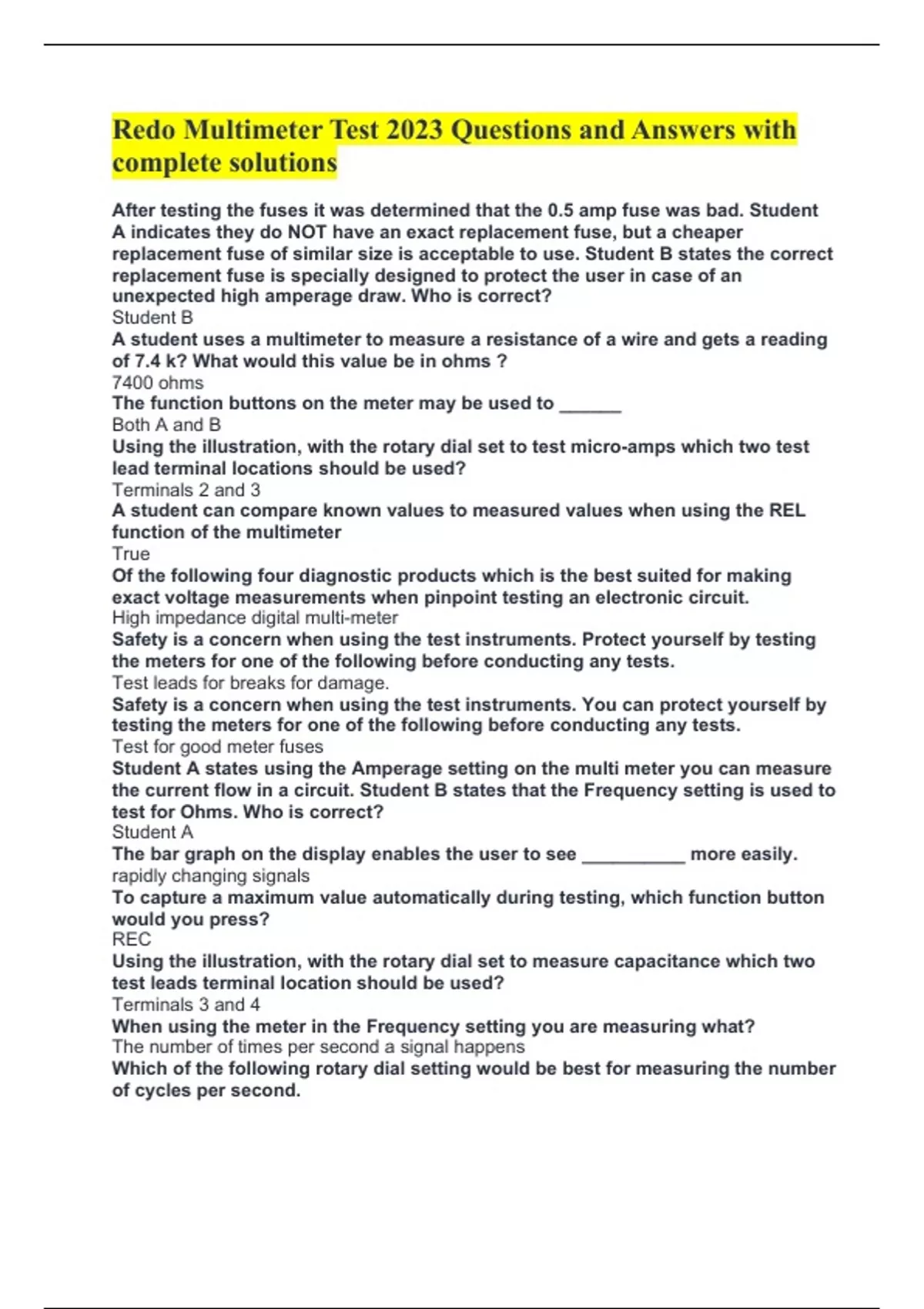

Redo Multimeter Test 2023 Questions and Answers with
complete solutions
After testing the fuses it was determined that the 0.5 amp fuse was bad. Student
A indicates they do NOT have an exact replacement fuse, but a cheaper
replacement fuse of similar size is acceptable to use. Student B states the correct
replacement fuse is specially designed to protect the user in case of an
unexpected high amperage draw. Who is correct?
Student B
A student uses a multimeter to measure a resistance of a wire and gets a reading
of 7.4 k? What would this value be in ohms ?
7400 ohms
The function buttons on the meter may be used to ______
Both A and B
Using the illustration, with the rotary dial set to test micro-amps which two test
lead terminal locations should be used?
Terminals 2 and 3
A student can compare known values to measured values when using the REL
function of the multimeter
True
Of the following four diagnostic products which is the best suited for making
exact voltage measurements when pinpoint testing an electronic circuit.
High impedance digital multi-meter
Safety is a concern when using the test instruments. Protect yourself by testing
the meters for one of the following before conducting any tests.
Test leads for breaks for damage.
Safety is a concern when using the test instruments. You can protect yourself by
testing the meters for one of the following before conducting any tests.
Test for good meter fuses
Student A states using the Amperage setting on the multi meter you can measure
the current flow in a circuit. Student B states that the Frequency setting is used to
test for Ohms. Who is correct?
Student A
The bar graph on the display enables the user to see __________ more easily.
rapidly changing signals
To capture a maximum value automatically during testing, which function button
would you press?
REC
Using the illustration, with the rotary dial set to measure capacitance which two
test leads terminal location should be used?
Terminals 3 and 4
When using the meter in the Frequency setting you are measuring what?
The number of times per second a signal happens
Which of the following rotary dial setting would be best for measuring the number
of cycles per second.
