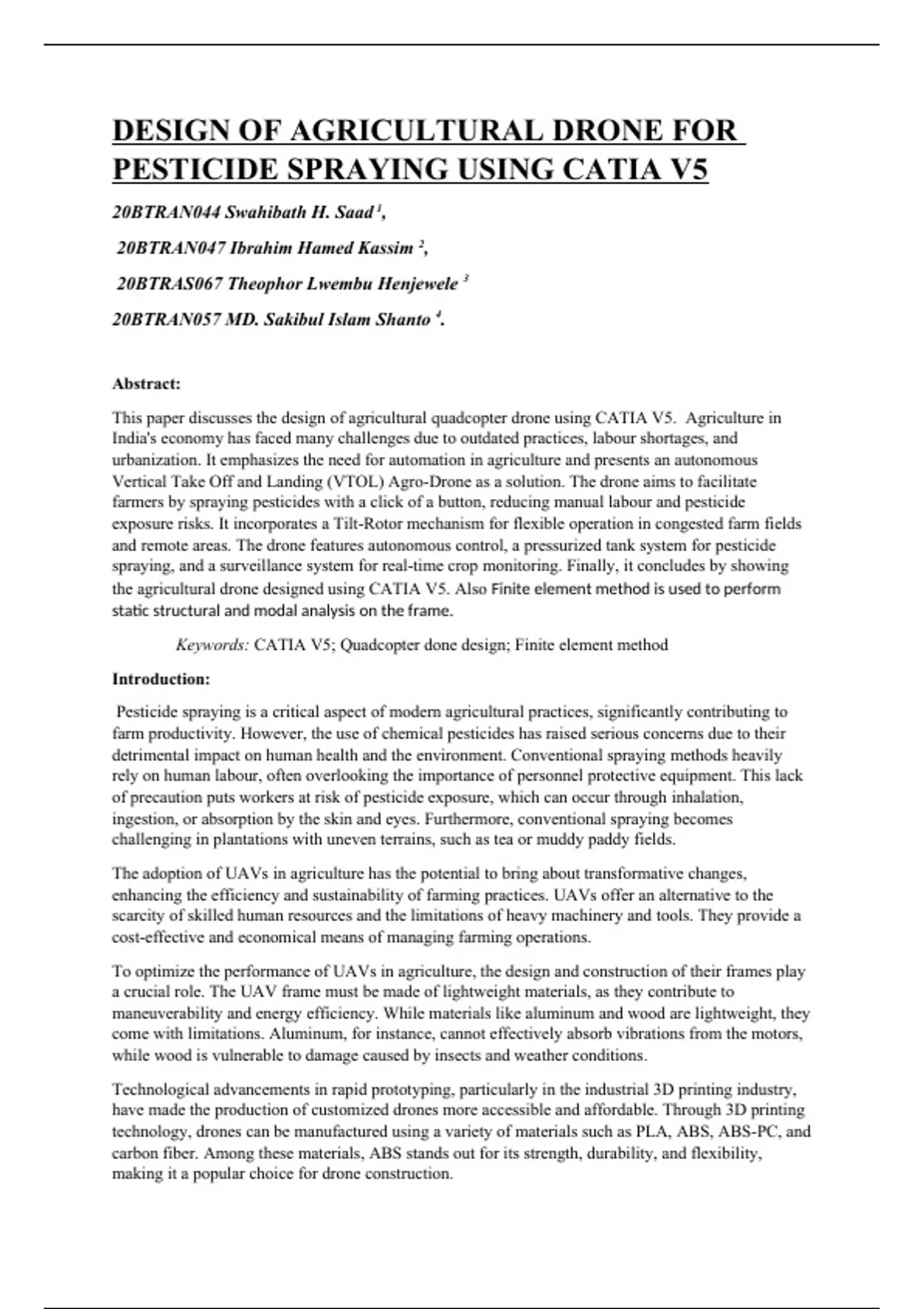

DESIGN OF AGRICULTURAL DRONE FOR
PESTICIDE SPRAYING USING CATIA V5
20BTRAN044 Swahibath H. Saad 1,
20BTRAN047 Ibrahim Hamed Kassim 2,
20BTRAS067 Theophor Lwembu Henjewele 3
20BTRAN057 MD. Sakibul Islam Shanto 4.
Abstract:
This paper discusses the design of agricultural quadcopter drone using CATIA V5. Agriculture in
India's economy has faced many challenges due to outdated practices, labour shortages, and
urbanization. It emphasizes the need for automation in agriculture and presents an autonomous
Vertical Take Off and Landing (VTOL) Agro-Drone as a solution. The drone aims to facilitate
farmers by spraying pesticides with a click of a button, reducing manual labour and pesticide
exposure risks. It incorporates a Tilt-Rotor mechanism for flexible operation in congested farm fields
and remote areas. The drone features autonomous control, a pressurized tank system for pesticide
spraying, and a surveillance system for real-time crop monitoring. Finally, it concludes by showing
the agricultural drone designed using CATIA V5. Also Finite element method is used to perform
static structural and modal analysis on the frame.
Keywords: CATIA V5; Quadcopter done design; Finite element method
Introduction:
Pesticide spraying is a critical aspect of modern agricultural practices, significantly contributing to
farm productivity. However, the use of chemical pesticides has raised serious concerns due to their
detrimental impact on human health and the environment. Conventional spraying methods heavily
rely on human labour, often overlooking the importance of personnel protective equipment. This lack
of precaution puts workers at risk of pesticide exposure, which can occur through inhalation,
ingestion, or absorption by the skin and eyes. Furthermore, conventional spraying becomes
challenging in plantations with uneven terrains, such as tea or muddy paddy fields.
The adoption of UAVs in agriculture has the potential to bring about transformative changes,
enhancing the efficiency and sustainability of farming practices. UAVs offer an alternative to the
scarcity of skilled human resources and the limitations of heavy machinery and tools. They provide a
cost-effective and economical means of managing farming operations.
To optimize the performance of UAVs in agriculture, the design and construction of their frames play
a crucial role. The UAV frame must be made of lightweight materials, as they contribute to
maneuverability and energy efficiency. While materials like aluminum and wood are lightweight, they
come with limitations. Aluminum, for instance, cannot effectively absorb vibrations from the motors,
while wood is vulnerable to damage caused by insects and weather conditions.
Technological advancements in rapid prototyping, particularly in the industrial 3D printing industry,
have made the production of customized drones more accessible and affordable. Through 3D printing
technology, drones can be manufactured using a variety of materials such as PLA, ABS, ABS-PC, and
carbon fiber. Among these materials, ABS stands out for its strength, durability, and flexibility,
making it a popular choice for drone construction.
,When considering the quadcopter design of UAVs, two primary configurations are commonly used:
the "plus" (+) and the "cross" (×) configuration. The X-configuration quadcopter is known for its
stability, whereas the plus configuration offers greater acrobatic maneuverability. To enhance stability
during flight, internal baffle plates can be incorporated to reduce the sloshing of the spray material
load.
Ensuring the forces acting upwards on the UAV are double the maximum weight is crucial for safe
and stable operation. Therefore, it is essential to thoroughly analyze the impact of these forces on the
frame before manufacturing. Finite Element Method (FEM) analysis is a valuable tool for evaluating
UAV frame designs under various boundary and loading conditions, providing valuable insights for
optimization
Objective:
1. Efficiency:
The primary objective is to design an agricultural drone that maximizes the efficiency of
pesticide spraying operations. The drone should be capable of covering large areas of
farmland quickly and accurately, reducing the time and resources required for pesticide
application.
2. Precision and Accuracy:
The drone should be equipped with advanced technologies, such as GPS and remote sensing,
to ensure precise and accurate pesticide spraying. This objective aims to minimize pesticide
wastage and ensure targeted application, reducing the potential environmental impact and
optimizing the effectiveness of pest control.
3. Safety:
Safety is a paramount objective in designing an agricultural drone for pesticide spray. The
drone should be equipped with fail-safe mechanisms, obstacle detection sensors, and collision
avoidance systems to prevent accidents and ensure the safety of humans and the environment
during operation.
4. Payload Capacity:
The drone should have an optimal payload capacity to carry an adequate amount of pesticides
for efficient spraying. This objective focuses on designing a drone that can carry sufficient
pesticide quantities while maintaining stability and manoeuvrability.
5. Versatility:
The drone should be versatile enough to adapt to different agricultural landscapes and crop
types. It should be capable of flying and spraying pesticides effectively in various terrains,
including uneven surfaces and challenging environments.
6. Durability:
The drone should be designed to withstand harsh environmental conditions, including
temperature variations, wind, and moisture. It should be constructed using durable materials
that can resist corrosion, impact, and weathering, ensuring the longevity of the drone's
operational life.
7. Autonomy:
Autonomous operation is an important objective for agricultural drones. The drone should be
equipped with intelligent flight control systems and advanced algorithms to enable
autonomous flight, precise navigation, and automated pesticide spraying. This objective aims
to reduce the dependency on manual intervention and increase operational efficiency.
8. Easy Maintenance and Serviceability:
The drone design should prioritize ease of maintenance and serviceability. Components and
parts should be easily accessible for inspection, repair, and replacement, ensuring minimal
downtime and cost-effective maintenance.
9. Cost-effectiveness:
, The drone design should strive for cost-effectiveness in terms of initial investment,
operational costs, and overall affordability. This objective aims to make agricultural drones
accessible to a wide range of farmers and encourage their adoption for pesticide spraying.
10. Environmental Sustainability:
The design objective should consider environmental sustainability by minimizing the use of
chemical pesticides, reducing the environmental impact of pesticide application, and
promoting integrated pest management practices. The drone should be designed to support
sustainable agriculture and contribute to ecosystem health.
Literature Review:
The design of agricultural quadcopter drones for pesticide spray has been a subject of extensive
research and development in recent years. This section provides an overview of the design aspects of
these drones based on a comprehensive literature review, encompassing considerations such as frame
design, propulsion systems, spraying mechanisms, navigation and autonomy, safety features, and
environmental sustainability.
Frame Design:
The frame design of agricultural quadcopter drones plays a crucial role in ensuring stability,
manoeuvrability, and durability. The literature emphasizes the use of lightweight materials such as
carbon fiber and composite materials to achieve a balance between strength and weight. These
materials offer high structural integrity while minimizing the overall weight of the drone, allowing for
improved flight performance and payload capacity. Additionally, vibration dampening techniques and
shock-absorbing components are incorporated to minimize the impact of motor vibrations on the
frame structure.
Propulsion Systems:
Efficient propulsion systems are essential for agricultural quadcopter drones to achieve optimal flight
performance and payload capacity. Electric brushless motors are commonly used due to their high
power-to-weight ratio, reliability, and controllability. The literature suggests selecting motors with
appropriate specifications, including thrust and efficiency, to ensure sufficient lifting capability and
flight stability. Moreover, the configuration of the motors, such as the "+" or "×" layout, should be
carefully considered to balance stability and manoeuvrability based on the specific operational
requirements.
Spraying Mechanisms:
Effective and uniform pesticide spray application is critical for successful pest control. Various
spraying mechanisms have been explored in the literature, including rotary atomizers, nozzles,
electrostatic spraying, and intelligent spraying systems. These mechanisms aim to achieve precise
droplet size, spray distribution, and coverage uniformity. The selection of the spraying mechanism
depends on factors such as the type of crops, desired droplet size, and spray deposition requirements.
Integration of advanced control systems and real-time monitoring sensors enables precise control of
the spraying process, optimizing pesticide application efficiency.
Navigation and Autonomy:
Navigation systems and autonomy features are key components of agricultural quadcopter drones for
efficient pesticide spraying operations. Global Positioning System (GPS), LiDAR, and computer
vision technologies are commonly employed for precise positioning, obstacle detection, and terrain
mapping. These systems enable accurate flight path planning, collision avoidance, and autonomous
operation, reducing the reliance on manual control. Additionally, intelligent algorithms and path
