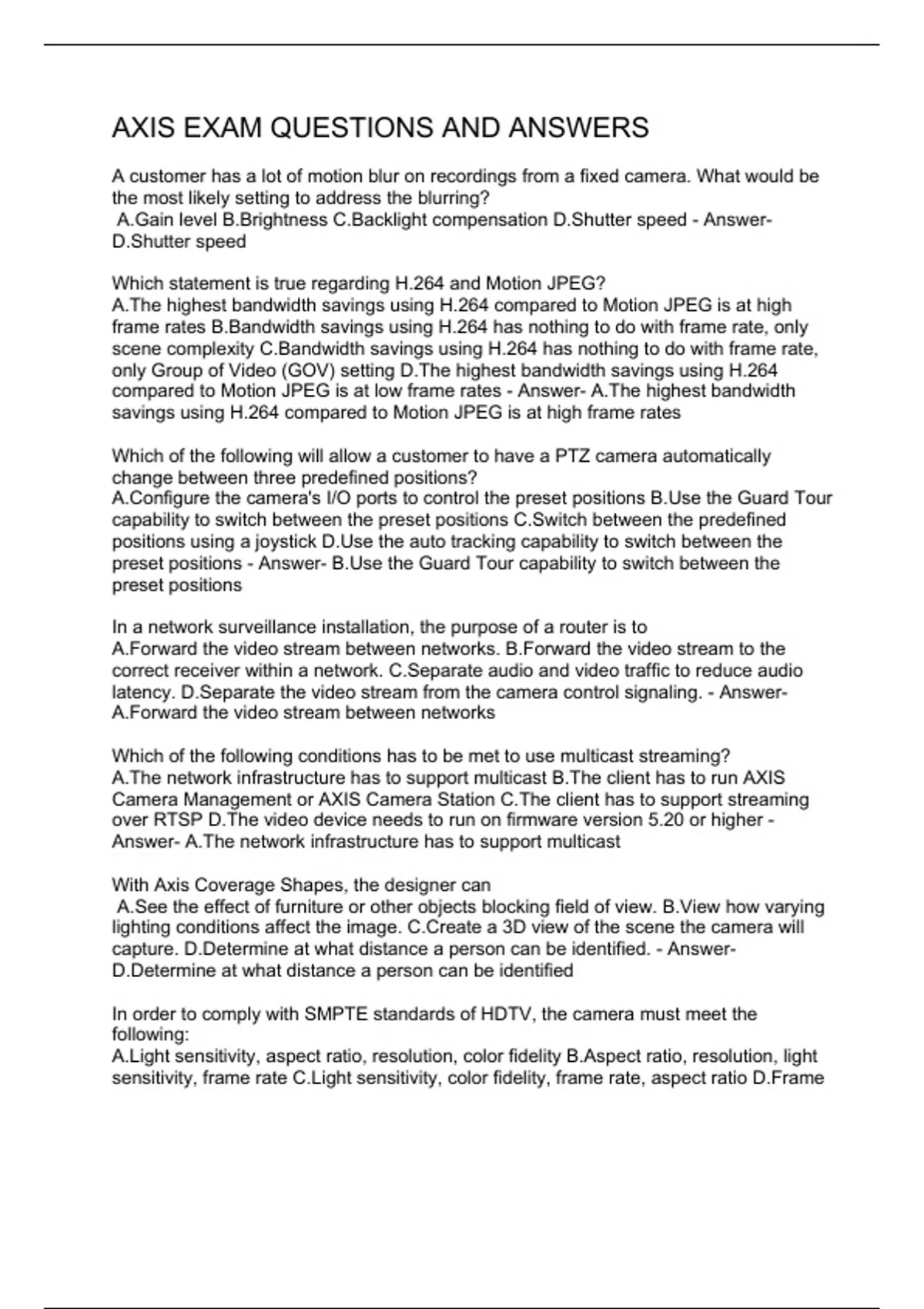

AXIS EXAM QUESTIONS AND ANSWERS
A customer has a lot of motion blur on recordings from a fixed camera. What would be
the most likely setting to address the blurring?
A.Gain level B.Brightness C.Backlight compensation D.Shutter speed - Answer-
D.Shutter speed
Which statement is true regarding H.264 and Motion JPEG?
A.The highest bandwidth savings using H.264 compared to Motion JPEG is at high
frame rates B.Bandwidth savings using H.264 has nothing to do with frame rate, only
scene complexity C.Bandwidth savings using H.264 has nothing to do with frame rate,
only Group of Video (GOV) setting D.The highest bandwidth savings using H.264
compared to Motion JPEG is at low frame rates - Answer- A.The highest bandwidth
savings using H.264 compared to Motion JPEG is at high frame rates
Which of the following will allow a customer to have a PTZ camera automatically
change between three predefined positions?
A.Configure the camera's I/O ports to control the preset positions B.Use the Guard Tour
capability to switch between the preset positions C.Switch between the predefined
positions using a joystick D.Use the auto tracking capability to switch between the
preset positions - Answer- B.Use the Guard Tour capability to switch between the
preset positions
In a network surveillance installation, the purpose of a router is to
A.Forward the video stream between networks. B.Forward the video stream to the
correct receiver within a network. C.Separate audio and video traffic to reduce audio
latency. D.Separate the video stream from the camera control signaling. - Answer-
A.Forward the video stream between networks
Which of the following conditions has to be met to use multicast streaming?
A.The network infrastructure has to support multicast B.The client has to run AXIS
Camera Management or AXIS Camera Station C.The client has to support streaming
over RTSP D.The video device needs to run on firmware version 5.20 or higher -
Answer- A.The network infrastructure has to support multicast
With Axis Coverage Shapes, the designer can
A.See the effect of furniture or other objects blocking field of view. B.View how varying
lighting conditions affect the image. C.Create a 3D view of the scene the camera will
capture. D.Determine at what distance a person can be identified. - Answer-
D.Determine at what distance a person can be identified
In order to comply with SMPTE standards of HDTV, the camera must meet the
following:
A.Light sensitivity, aspect ratio, resolution, color fidelity B.Aspect ratio, resolution, light
sensitivity, frame rate C.Light sensitivity, color fidelity, frame rate, aspect ratio D.Frame
, rate, aspect ratio, resolution, color fidelity - Answer- D.Frame rate, aspect ratio,
resolution, color fidelity
Which is true about P-iris?
A.The P-iris makes use of a novel p-shaped blade that reduces complexity and cost
while maintaining image quality B.In bright situations. P-iris limits the closing of the iris
to avoid blurring caused by diffraction when the iris opening becomes too small C.The
P-iris delivers the optimal depth of field by always using the smallest possible aperture
for the available lightning D.The P-iris makes use of a novel p-shaped blade that allows
the iris to react to rapidly changing lighting conditions - Answer- B.In bright situations. P-
iris limits the closing of the iris to avoid blurring caused by diffraction when the iris
opening becomes too small
The Axis pixel counter allows a user to
A.Convert pixels to actual distances. B.Verify that the resolution requirements for a
scene are met. C.Determine the file size for each video frame. D.Specify different
exposure zones in a scene. - Answer- B.Verify that the resolution requirements for a
scene are met
Which of the following actions can be taken using the AXIS T8414 Installation Display?
(Choose two)
A.Power up a PoE camera B.Make snapshots C.Access a camera's home pageD.Reset
a camera to factory default values E.Read user documentation for cameras - Answer-
A.Power up a PoE camera B.Make snapshots
If a camera is pointed down a hallway with no windows and the color seems "washed
out" or faded, which of the following settings should first be adjusted to improve the
image?
A.Decrease image brightness B.Increase image contrast C.Uncheck backlight
compensation D.Adjust the exposure settings - Answer- C.Uncheck backlight
compensation
In a switched network with Unicast
A.Data packets are sent only to one recipient no other computers will receive the data.
B.Data packets can only be sent in one direction, for example from the camera to the
server. C.Only one camera at a time can send data packets through the network, to
avoid congestion. D.All data packets are transmitted in a unified size, enabling network
optimization - Answer- A.Data packets are sent only to one recipient no other computers
will receive the data
Working with a retailer on a site survey, they ask if there's any way to get more of the
aisle and less of the shelves on the short sides in the shot. An AXIS M3204 camera is
being used. Which would be the best suggestion to the retailer?
A.Adjusting the varifocal lens from 2.8 mm to 10 mm B.Adjusting the varifocal lens from
2.8 mm to 4 mm C.Using Axis' Corridor Format D.Switching the camera to a 16:9 view -
Answer- C.Using Axis' Corridor Format
A customer has a lot of motion blur on recordings from a fixed camera. What would be
the most likely setting to address the blurring?
A.Gain level B.Brightness C.Backlight compensation D.Shutter speed - Answer-
D.Shutter speed
Which statement is true regarding H.264 and Motion JPEG?
A.The highest bandwidth savings using H.264 compared to Motion JPEG is at high
frame rates B.Bandwidth savings using H.264 has nothing to do with frame rate, only
scene complexity C.Bandwidth savings using H.264 has nothing to do with frame rate,
only Group of Video (GOV) setting D.The highest bandwidth savings using H.264
compared to Motion JPEG is at low frame rates - Answer- A.The highest bandwidth
savings using H.264 compared to Motion JPEG is at high frame rates
Which of the following will allow a customer to have a PTZ camera automatically
change between three predefined positions?
A.Configure the camera's I/O ports to control the preset positions B.Use the Guard Tour
capability to switch between the preset positions C.Switch between the predefined
positions using a joystick D.Use the auto tracking capability to switch between the
preset positions - Answer- B.Use the Guard Tour capability to switch between the
preset positions
In a network surveillance installation, the purpose of a router is to
A.Forward the video stream between networks. B.Forward the video stream to the
correct receiver within a network. C.Separate audio and video traffic to reduce audio
latency. D.Separate the video stream from the camera control signaling. - Answer-
A.Forward the video stream between networks
Which of the following conditions has to be met to use multicast streaming?
A.The network infrastructure has to support multicast B.The client has to run AXIS
Camera Management or AXIS Camera Station C.The client has to support streaming
over RTSP D.The video device needs to run on firmware version 5.20 or higher -
Answer- A.The network infrastructure has to support multicast
With Axis Coverage Shapes, the designer can
A.See the effect of furniture or other objects blocking field of view. B.View how varying
lighting conditions affect the image. C.Create a 3D view of the scene the camera will
capture. D.Determine at what distance a person can be identified. - Answer-
D.Determine at what distance a person can be identified
In order to comply with SMPTE standards of HDTV, the camera must meet the
following:
A.Light sensitivity, aspect ratio, resolution, color fidelity B.Aspect ratio, resolution, light
sensitivity, frame rate C.Light sensitivity, color fidelity, frame rate, aspect ratio D.Frame
, rate, aspect ratio, resolution, color fidelity - Answer- D.Frame rate, aspect ratio,
resolution, color fidelity
Which is true about P-iris?
A.The P-iris makes use of a novel p-shaped blade that reduces complexity and cost
while maintaining image quality B.In bright situations. P-iris limits the closing of the iris
to avoid blurring caused by diffraction when the iris opening becomes too small C.The
P-iris delivers the optimal depth of field by always using the smallest possible aperture
for the available lightning D.The P-iris makes use of a novel p-shaped blade that allows
the iris to react to rapidly changing lighting conditions - Answer- B.In bright situations. P-
iris limits the closing of the iris to avoid blurring caused by diffraction when the iris
opening becomes too small
The Axis pixel counter allows a user to
A.Convert pixels to actual distances. B.Verify that the resolution requirements for a
scene are met. C.Determine the file size for each video frame. D.Specify different
exposure zones in a scene. - Answer- B.Verify that the resolution requirements for a
scene are met
Which of the following actions can be taken using the AXIS T8414 Installation Display?
(Choose two)
A.Power up a PoE camera B.Make snapshots C.Access a camera's home pageD.Reset
a camera to factory default values E.Read user documentation for cameras - Answer-
A.Power up a PoE camera B.Make snapshots
If a camera is pointed down a hallway with no windows and the color seems "washed
out" or faded, which of the following settings should first be adjusted to improve the
image?
A.Decrease image brightness B.Increase image contrast C.Uncheck backlight
compensation D.Adjust the exposure settings - Answer- C.Uncheck backlight
compensation
In a switched network with Unicast
A.Data packets are sent only to one recipient no other computers will receive the data.
B.Data packets can only be sent in one direction, for example from the camera to the
server. C.Only one camera at a time can send data packets through the network, to
avoid congestion. D.All data packets are transmitted in a unified size, enabling network
optimization - Answer- A.Data packets are sent only to one recipient no other computers
will receive the data
Working with a retailer on a site survey, they ask if there's any way to get more of the
aisle and less of the shelves on the short sides in the shot. An AXIS M3204 camera is
being used. Which would be the best suggestion to the retailer?
A.Adjusting the varifocal lens from 2.8 mm to 10 mm B.Adjusting the varifocal lens from
2.8 mm to 4 mm C.Using Axis' Corridor Format D.Switching the camera to a 16:9 view -
Answer- C.Using Axis' Corridor Format
