Laboratory Guide - Virtual Local Area Network

LABORATORY EXERCISE
Virtual Local Area Network (VLAN)


For group collaboration, create the given topology below and perform the following tasks. Screenshot all
the results and running configurations. Paste in a word file. Send your document together with the packet tracer
file to my email, MS teams or messenger.
This lab will let you explore how to create a simple VLAN managed switched network. This will also
allow you to learn how you will interconnect different VLAN members and make all users be reachable with each
other.

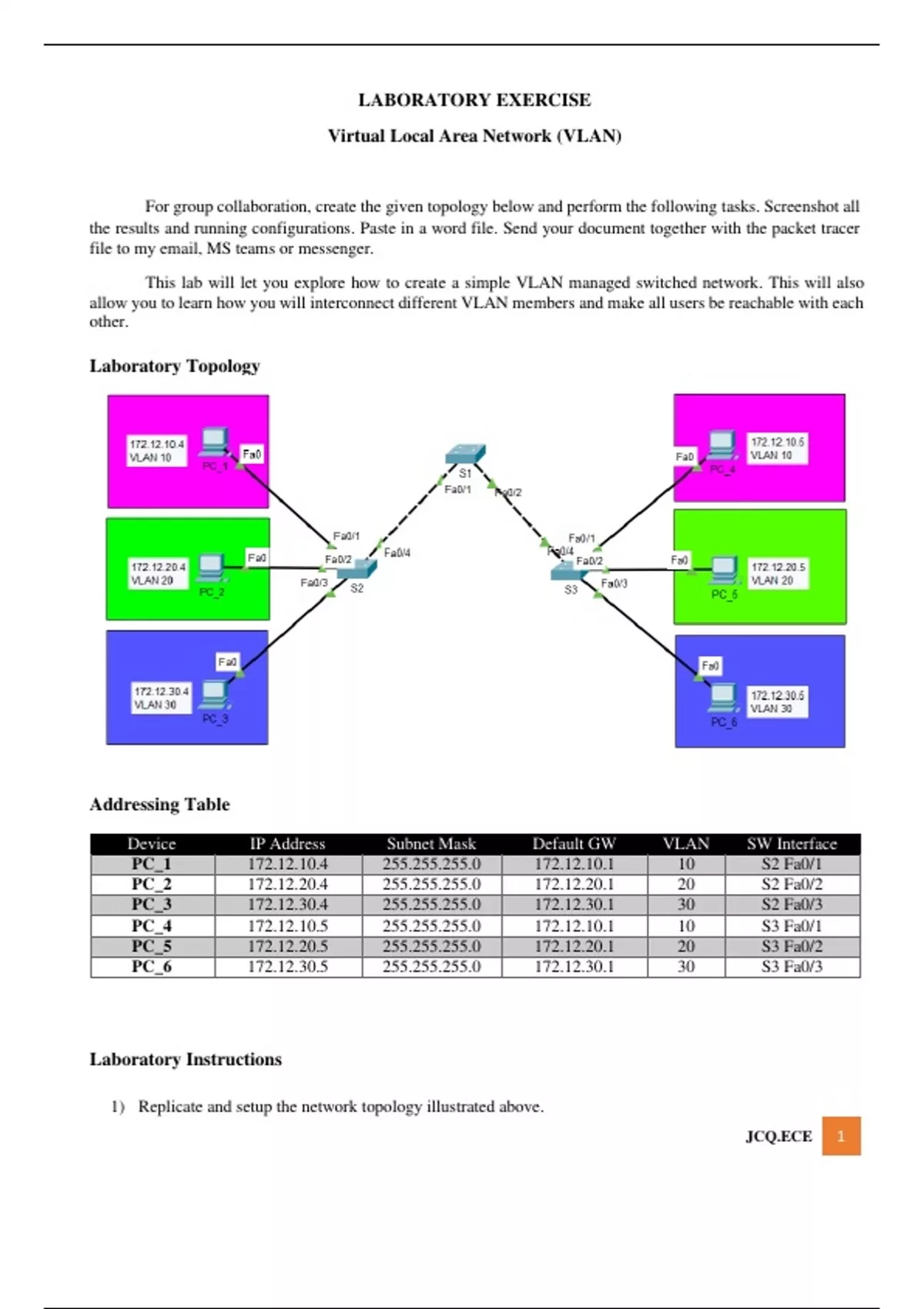

Laboratory Topology




Addressing Table

Device IP Address Subnet Mask Default GW VLAN SW Interface
PC_1 172.12.10.4 255.255.255.0 172.12.10.1 10 S2 Fa0/1
PC_2 172.12.20.4 255.255.255.0 172.12.20.1 20 S2 Fa0/2
PC_3 172.12.30.4 255.255.255.0 172.12.30.1 30 S2 Fa0/3
PC_4 172.12.10.5 255.255.255.0 172.12.10.1 10 S3 Fa0/1
PC_5 172.12.20.5 255.255.255.0 172.12.20.1 20 S3 Fa0/2
PC_6 172.12.30.5 255.255.255.0 172.12.30.1 30 S3 Fa0/3




Laboratory Instructions

1) Replicate and setup the network topology illustrated above.
JCQ.ECE 1
