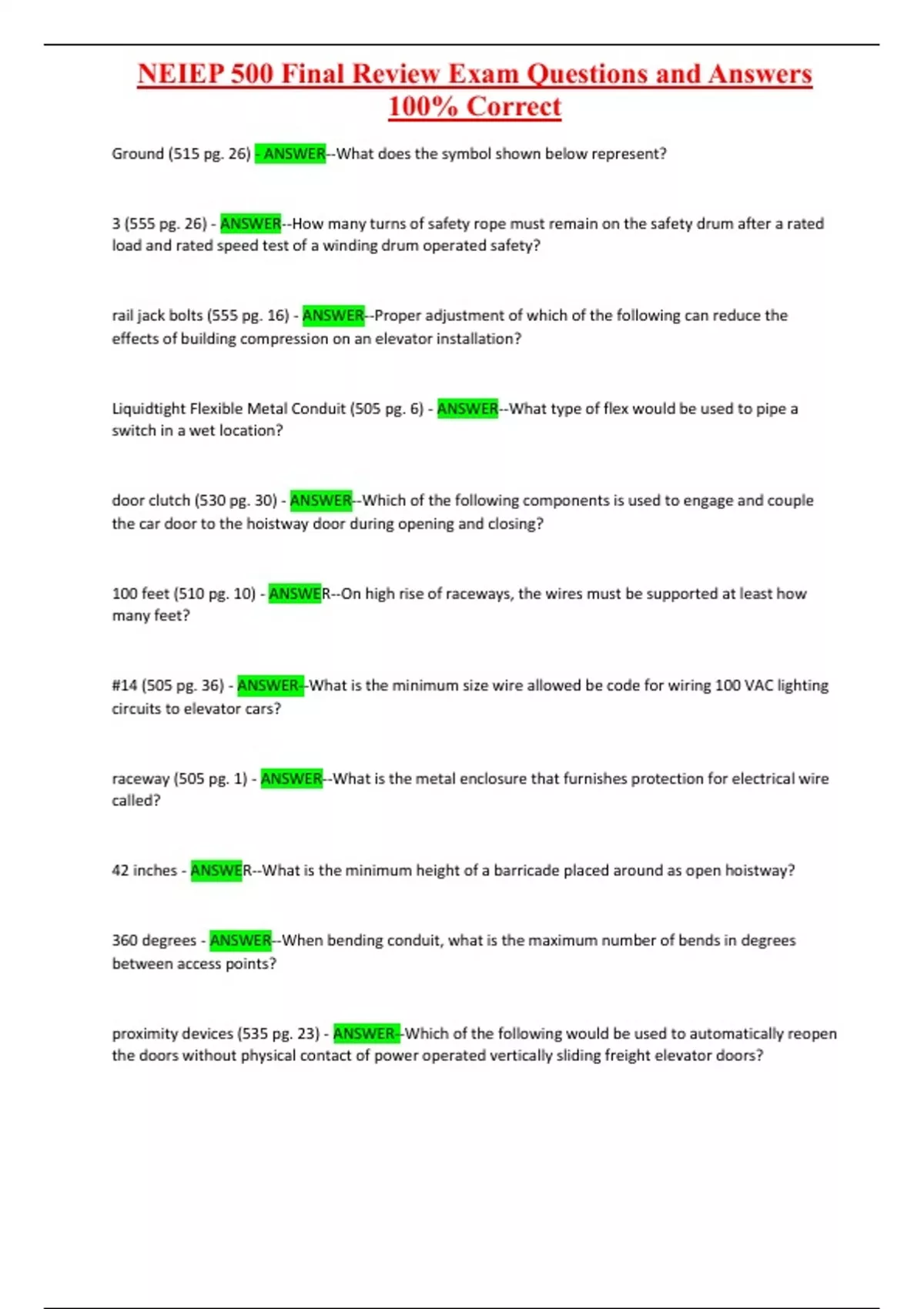

NEIEP 500 Final Review Exam Questions and Answers
100% Correct
Ground (515 pg. 26) - ANSWER--What does the symbol shown below represent?
3 (555 pg. 26) - ANSWER--How many turns of safety rope must remain on the safety drum after a rated
load and rated speed test of a winding drum operated safety?
rail jack bolts (555 pg. 16) - ANSWER--Proper adjustment of which of the following can reduce the
effects of building compression on an elevator installation?
Liquidtight Flexible Metal Conduit (505 pg. 6) - ANSWER--What type of flex would be used to pipe a
switch in a wet location?
door clutch (530 pg. 30) - ANSWER--Which of the following components is used to engage and couple
the car door to the hoistway door during opening and closing?
100 feet (510 pg. 10) - ANSWER--On high rise of raceways, the wires must be supported at least how
many feet?
#14 (505 pg. 36) - ANSWER--What is the minimum size wire allowed be code for wiring 100 VAC lighting
circuits to elevator cars?
raceway (505 pg. 1) - ANSWER--What is the metal enclosure that furnishes protection for electrical wire
called?
42 inches - ANSWER--What is the minimum height of a barricade placed around as open hoistway?
360 degrees - ANSWER--When bending conduit, what is the maximum number of bends in degrees
between access points?
proximity devices (535 pg. 23) - ANSWER--Which of the following would be used to automatically reopen
the doors without physical contact of power operated vertically sliding freight elevator doors?
, NEIEP 500 Final Review Exam Questions and Answers
100% Correct
It must be tamper proof to prevent override of the door contacts (535 pg. 9) - ANSWER--Which of the
following is a requirement that must be met when interlocks are installed on freight elevators?
The cam must apply a force that is double that required for normal interlock operation (515 pg. 26) -
ANSWER--When setting up a retiring cam for a freight elevator, which of the following statements is
correct?
keeper (535 pg. 19) - ANSWER--What device is installed to hold the vertically sliding biparting freight
doors mechanically closed?
They must be installed on all dumbwaiters (545 pg. 19) - ANSWER--Which of the following statements is
correct for dumbwaiter installations that use mechanical locks and electrical contacts?
They are required at the terminal landings when the rise is 25 feet or greater (545 pg.4) - ANSWER--
What is the requirement for hoistway access switches for dumbwaiters?
The 110 VAC lighting circuit (510 pg. 46) - ANSWER--What terminals in the hoistway junctions box could
most likely be hot even with the main line disconnect open?
7 feet (510 pg. 21) - ANSWER--What is the minimum overhead clearance for raceways mounted in the
machine room overhead?
45 inches (515 pg. 8) - ANSWER--What is the minimum loop size for 1 1/2 inch traveling cable?
All splices must be accessible after installation is complete - ANSWER--Which of the following is correct
about splicing wires?
Isolated - ANSWER--What type of cab platform frame is required when a platform load weighing system
is being included?
The loop circuit is open (520 pg. 11) - ANSWER--If there is voltage at the generator armature but not at
the motor armature, what is most likely wrong?
