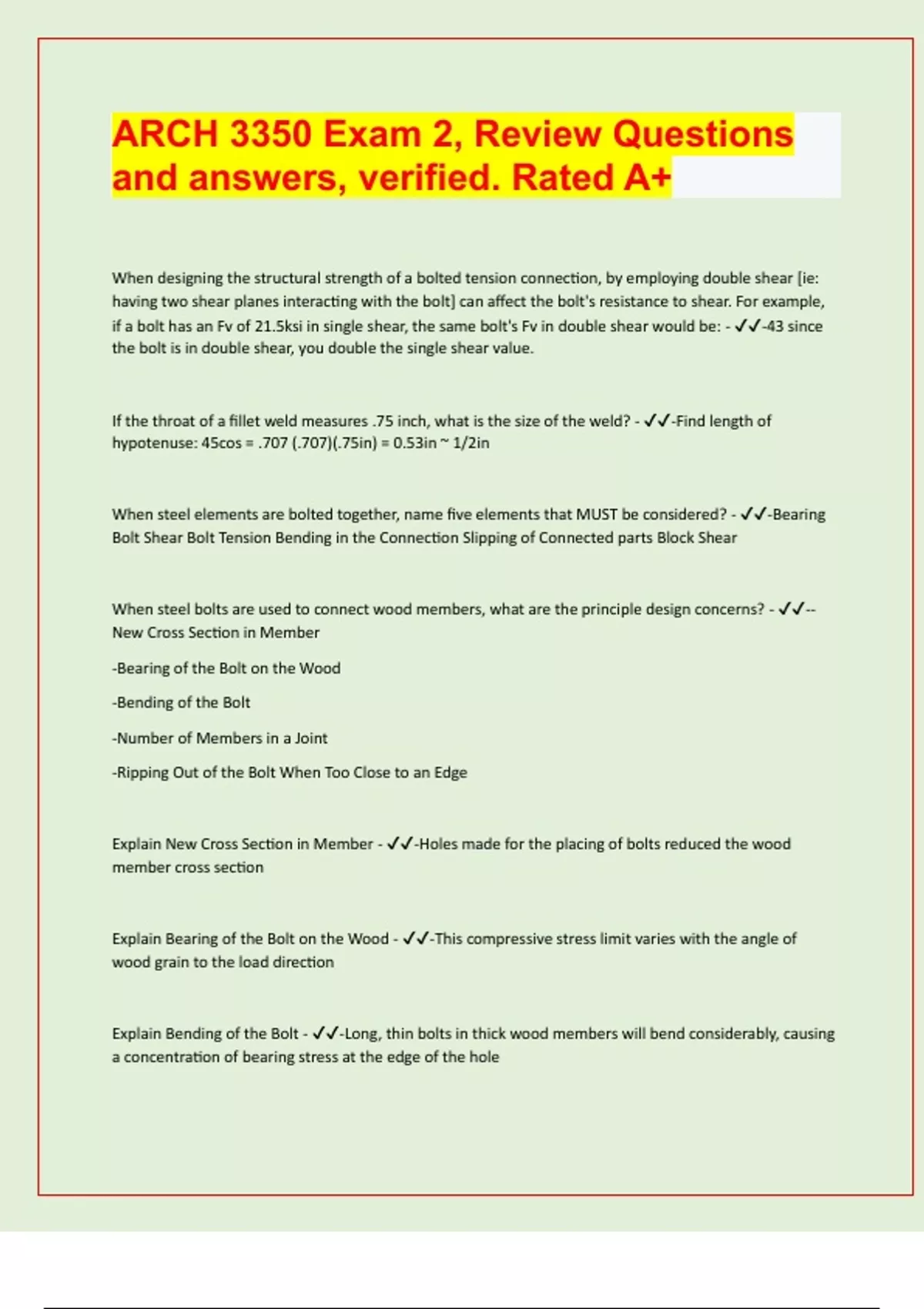

ARCH 3350 Exam 2, Review Questions and answers, verified. Rated A+ When designing the structural strength of a bolted tension connection, by employing double shear [ie: having two shear planes interacting with the bolt] can affect the bolt's resistance to shear. For example, if a bolt has an Fv of 21.5ksi in single shear, the same bolt's Fv in double shear would be: - -43 since the bolt is in double shear, you double the single shear value. If the throat of a fillet weld measures .75 inch, what is the size of the weld? - -Find length of hypotenuse: 45cos = .707 (.707)(.75in) = 0.53in ~ 1/2in When steel elements are bolted together, name five elements that MUST be considered? - -Bearing Bolt Shear Bolt Tension Bending in the Connection Slipping of Connected parts Block Shear When steel bolts are used to connect wood members, what are the principle design concerns? - -- New Cross Section in Member -Bearing of the Bolt on the Wood -Bending of the Bolt -Number of Members in a Joint -Ripping Out of the Bolt When Too Close to an Edge Explain New Cross Section in Member - -Holes made for the placing of bolts reduced the wood member cross section Explain Bearing of the Bolt on the Wood - -This compressive stress limit varies with the angle of wood grain to the load direction Explain Bending of the Bolt - -Long, thin bolts in thi
