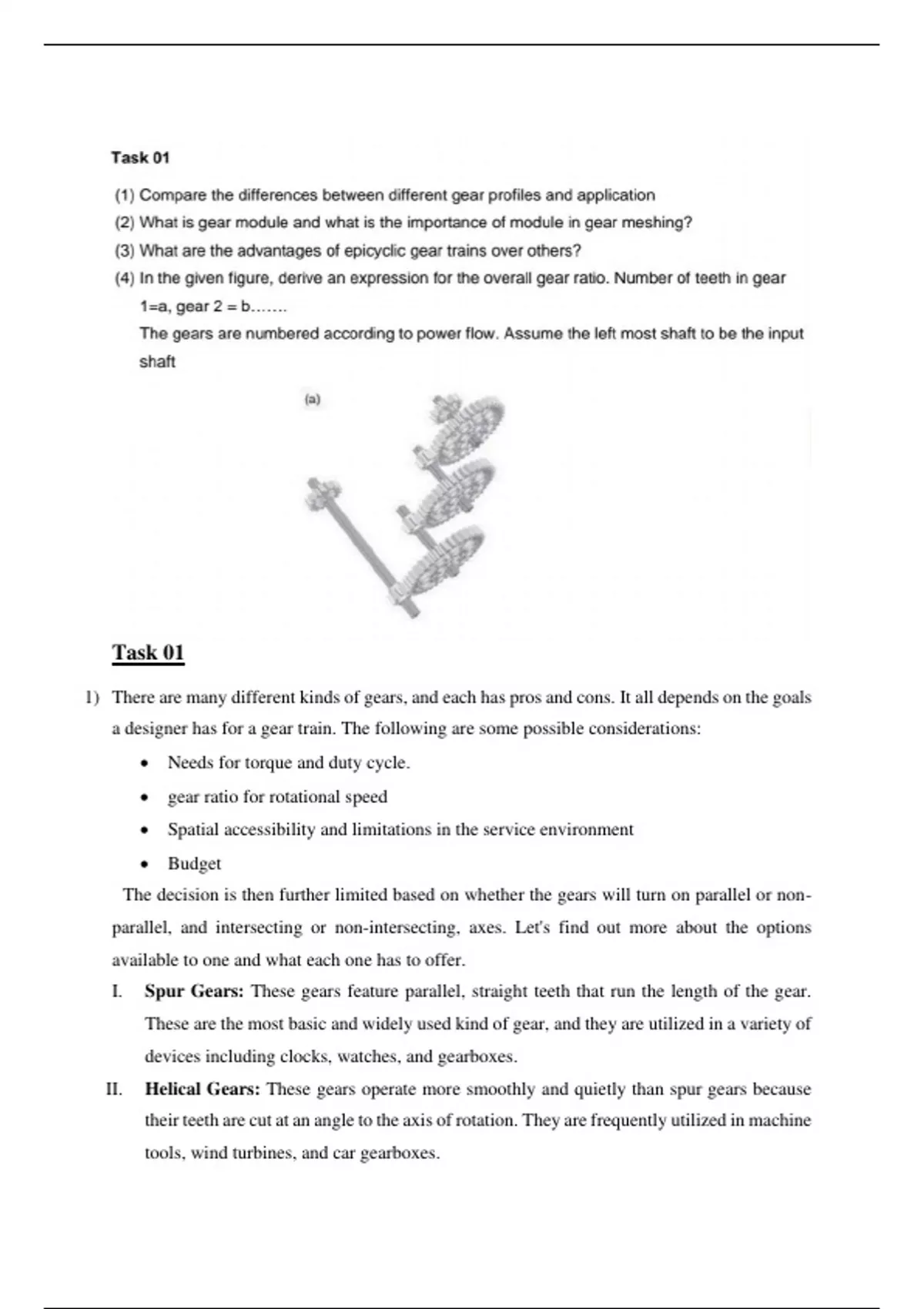

Task 01
1) There are many different kinds of gears, and each has pros and cons. It all depends on the goals
a designer has for a gear train. The following are some possible considerations:
• Needs for torque and duty cycle.
• gear ratio for rotational speed
• Spatial accessibility and limitations in the service environment
• Budget
The decision is then further limited based on whether the gears will turn on parallel or non-
parallel, and intersecting or non-intersecting, axes. Let's find out more about the options
available to one and what each one has to offer.
I. Spur Gears: These gears feature parallel, straight teeth that run the length of the gear.
These are the most basic and widely used kind of gear, and they are utilized in a variety of
devices including clocks, watches, and gearboxes.
II. Helical Gears: These gears operate more smoothly and quietly than spur gears because
their teeth are cut at an angle to the axis of rotation. They are frequently utilized in machine
tools, wind turbines, and car gearboxes.
, III. Bevel Gears: These gears may transmit power at a straight angle to the input shaft because
to the teeth's cone-shaped cutting surface. They are frequently utilized in differentials,
allowing the wheels to rotate at various rates while turning.
IV. Worm Gears: These gears resemble little screws and feature a single tooth that turns in
opposition to a bigger wheel. They are employed in applications that call for a significant
speed decrease, such heavy machinery, and have a high gear ratio.
V. Rack and Pinion Gears: In applications that need for linear motion, including steering
systems and elevators, this is a combination of a linear gear (rack) and a rotating gear
(pinion).
VI. Internal Gears: These gears contain internal teeth that mesh with exterior teeth on a ring-
shaped gear. They frequently function as small, high-ratio gear reduction in planetary gear
systems.
VII. Spur Rack Gears: These gears may transform rotational motion into linear motion and
are comparable to spur gears in their linear or "rack" shape. They are utilized in systems
like sliding doors, linear actuators, and CNC machines.
VIII. Herringbone Gears: Although having two sets of teeth that are cut in opposing directions,
these gears are comparable to helical gears in that they balance out the axial forces that
can happen with helical gears. They are frequently employed in powerful devices like
turbines, generators, and large machinery.
IX. Hypoid Gears: These gears resemble bevel gears but differ in that the axes of the ring
gear and pinion are offset. They are frequently utilized in industrial and automotive
settings where high torque is necessary.
X. Cycloidal Gears: These gears feature a distinctively curved tooth design that enables them
to transfer power silently and smoothly. They are frequently employed in fast, precise
applications including robotics, machinery, and printing presses.
2) The size of a gear is referred to as a gear module. It is described as the gear's pitch diameter to
total number of teeth. In other terms, it is the distance, measured along the pitch circle, between
equivalent positions on neighbouring gear teeth.
Since it controls the size and form of the gear teeth, the gear module is crucial to the gear
meshing process. The teeth of two gears must be built with the same module if they are to mesh
properly. The gears won't mesh correctly if the module is different, which might cause
excessive wear, vibration, and noise.
1) There are many different kinds of gears, and each has pros and cons. It all depends on the goals
a designer has for a gear train. The following are some possible considerations:
• Needs for torque and duty cycle.
• gear ratio for rotational speed
• Spatial accessibility and limitations in the service environment
• Budget
The decision is then further limited based on whether the gears will turn on parallel or non-
parallel, and intersecting or non-intersecting, axes. Let's find out more about the options
available to one and what each one has to offer.
I. Spur Gears: These gears feature parallel, straight teeth that run the length of the gear.
These are the most basic and widely used kind of gear, and they are utilized in a variety of
devices including clocks, watches, and gearboxes.
II. Helical Gears: These gears operate more smoothly and quietly than spur gears because
their teeth are cut at an angle to the axis of rotation. They are frequently utilized in machine
tools, wind turbines, and car gearboxes.
, III. Bevel Gears: These gears may transmit power at a straight angle to the input shaft because
to the teeth's cone-shaped cutting surface. They are frequently utilized in differentials,
allowing the wheels to rotate at various rates while turning.
IV. Worm Gears: These gears resemble little screws and feature a single tooth that turns in
opposition to a bigger wheel. They are employed in applications that call for a significant
speed decrease, such heavy machinery, and have a high gear ratio.
V. Rack and Pinion Gears: In applications that need for linear motion, including steering
systems and elevators, this is a combination of a linear gear (rack) and a rotating gear
(pinion).
VI. Internal Gears: These gears contain internal teeth that mesh with exterior teeth on a ring-
shaped gear. They frequently function as small, high-ratio gear reduction in planetary gear
systems.
VII. Spur Rack Gears: These gears may transform rotational motion into linear motion and
are comparable to spur gears in their linear or "rack" shape. They are utilized in systems
like sliding doors, linear actuators, and CNC machines.
VIII. Herringbone Gears: Although having two sets of teeth that are cut in opposing directions,
these gears are comparable to helical gears in that they balance out the axial forces that
can happen with helical gears. They are frequently employed in powerful devices like
turbines, generators, and large machinery.
IX. Hypoid Gears: These gears resemble bevel gears but differ in that the axes of the ring
gear and pinion are offset. They are frequently utilized in industrial and automotive
settings where high torque is necessary.
X. Cycloidal Gears: These gears feature a distinctively curved tooth design that enables them
to transfer power silently and smoothly. They are frequently employed in fast, precise
applications including robotics, machinery, and printing presses.
2) The size of a gear is referred to as a gear module. It is described as the gear's pitch diameter to
total number of teeth. In other terms, it is the distance, measured along the pitch circle, between
equivalent positions on neighbouring gear teeth.
Since it controls the size and form of the gear teeth, the gear module is crucial to the gear
meshing process. The teeth of two gears must be built with the same module if they are to mesh
properly. The gears won't mesh correctly if the module is different, which might cause
excessive wear, vibration, and noise.
