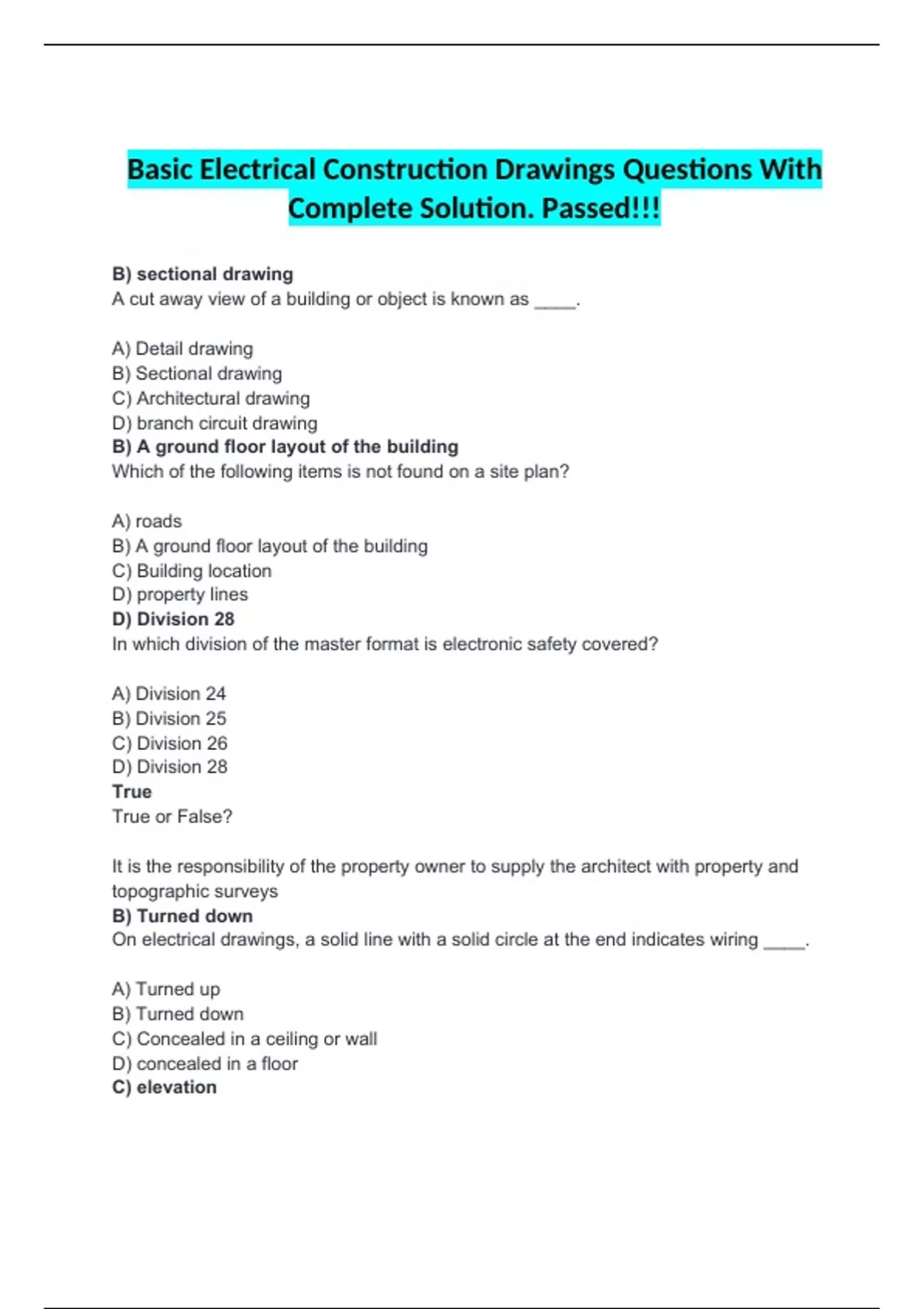

Basic Electrical Construction Drawings Questions With
Complete Solution. Passed!!!

B) sectional drawing
A cut away view of a building or object is known as ____.

A) Detail drawing
B) Sectional drawing
C) Architectural drawing
D) branch circuit drawing
B) A ground floor layout of the building
Which of the following items is not found on a site plan?

A) roads
B) A ground floor layout of the building
C) Building location
D) property lines
D) Division 28
In which division of the master format is electronic safety covered?

A) Division 24
B) Division 25
C) Division 26
D) Division 28
True
True or False?

It is the responsibility of the property owner to supply the architect with property and
topographic surveys
B) Turned down
On electrical drawings, a solid line with a solid circle at the end indicates wiring ____.

A) Turned up
B) Turned down
C) Concealed in a ceiling or wall
D) concealed in a floor
C) elevation

, The side view of a building, including roof pitch, can be found on a ____.

A) Site plan
B) floor plan
C) Elevation
D) Cut away drawing
B) Length and width
Floorplans have the dimensions of ___.

A) Width and height
B) Length and width
C) Length, width, and height
D) length and height
True
True or False?

It is not unusual to find a title block for the architectural firm and another title block for a
consulting engineer on the same set of drawings.
B) B
Which of the following letters in figure 1 shows a dimension of 1' - 6"?

A) A
B) B
C) C
D) D
C) C
Which of the following letters in figure 1 show a dimension of 0' - 3"?

A) A
B) B
C) C
D) D
A) A
Which of the following letters and figure one show a dimension of 4' - 9"?

A) A
B) B
C) C
D) D
C) General contractors name
