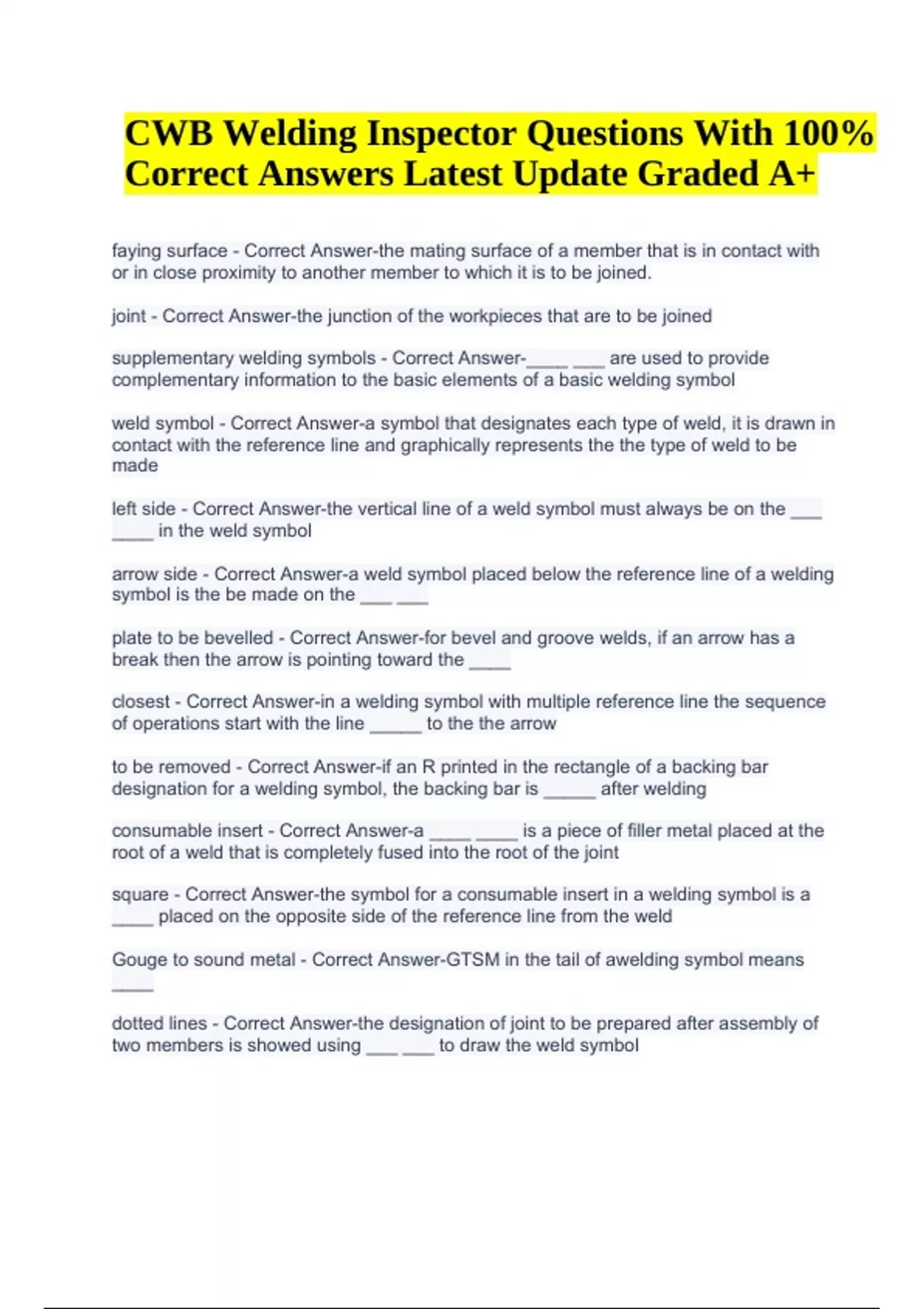

CWB Welding Inspector Questions With 100% Correct Answers Latest Update 2024 (Graded A+)

CWB Welding Inspector Questions With 100% Correct Answers Latest Update 2024 (Graded A+) the mating surface of a member that is in contact with or in close proximity to another member to which it is to be joined. joint - Correct Answer-the junction of the workpieces that are to be joined supplementary welding symbols - Correct Answer-____ ___ are used to provide complementary information to the basic elements of a basic welding symbol weld symbol - Correct Answer-a symbol that designates each type of weld, it is drawn in contact with the reference line and graphically represents the the type of weld to be made left side - Correct Answer-the vertical line of a weld symbol must always be on the ___ ____ in the weld symbol arrow side - Correct Answer-a weld symbol placed below the reference line of a welding symbol is the be made on the ___ ___ plate to be bevelled - Correct Answer-for bevel and groove welds, if an arrow has a break then the arrow is pointing toward the ____ closest - Correct Answer-in a welding symbol with multiple reference line the sequence of operations start with the line _____ to the the arrow to be removed - Correct Answer-if an R printed in the rectangle of a backing bar designation for a welding symbol, the backing bar is _____ after welding consumable insert - Correct Answer-a ____ ____ is a piece of filler metal placed at the root of a weld that is completely fused into the root of the joint square - Correct Answer-the symbol for a consumable insert in a welding symbol is a ____ placed on the opposite side of the reference line from the weld Gouge to sound metal - Correct Answer-GTSM in the tail of awelding symbol means ____ dotted lines - Correct Answer-the designation of joint to be prepared after assembly of two members is showed using ___ ___ to draw the weld symbol CWB Welding Inspector Questions With 100% Correct Answers Latest Update Graded A+ seal weld - Correct Answer-welds intended to provide a water tight seal are have ___ ___ printed in the tail of the welding symbol right - Correct Answer-a fillet welds length is shown to the ___ of the weld symbol left - Correct Answer-the size of a fillet weld is shown to the ___ of the weld symbol pitch - Correct Answer-____ is the space between sections of weld on centers of an intermittent weld Staggered Intermittent Weld - Correct Answer-offset weld symbols on both sides of the reference line designates a ___ ___ ___ 1.5 to 6.0 mm - Correct Answer-CSA and AWS standards allow GTAW filler metals in what diameters? - Correct Answer-Electrode packaging must have what information GTAW - Correct Answer-porosity, electrode contamination, solidification cracks down the centerline of the weld bead (especially in craters) and tungsten includes are common discontinuities of what welding process Manual metal arc welding - Correct Answer-MMAW stands for constant current - Correct Answer-what kind of power source has a drooping voltampere curve AC SMAW - Correct Answer-benifits of using __ ____ are : -arc blow is rarely a problem -suitable for welding thick sections with large diameter electrodes risk of electrocution, limited choice of electrodes - Correct Answer-the cons of us AC SMAW are ____ 120 - Correct Answer-low hydrogen rods should be stored in ovens at _____ degrees celcius
