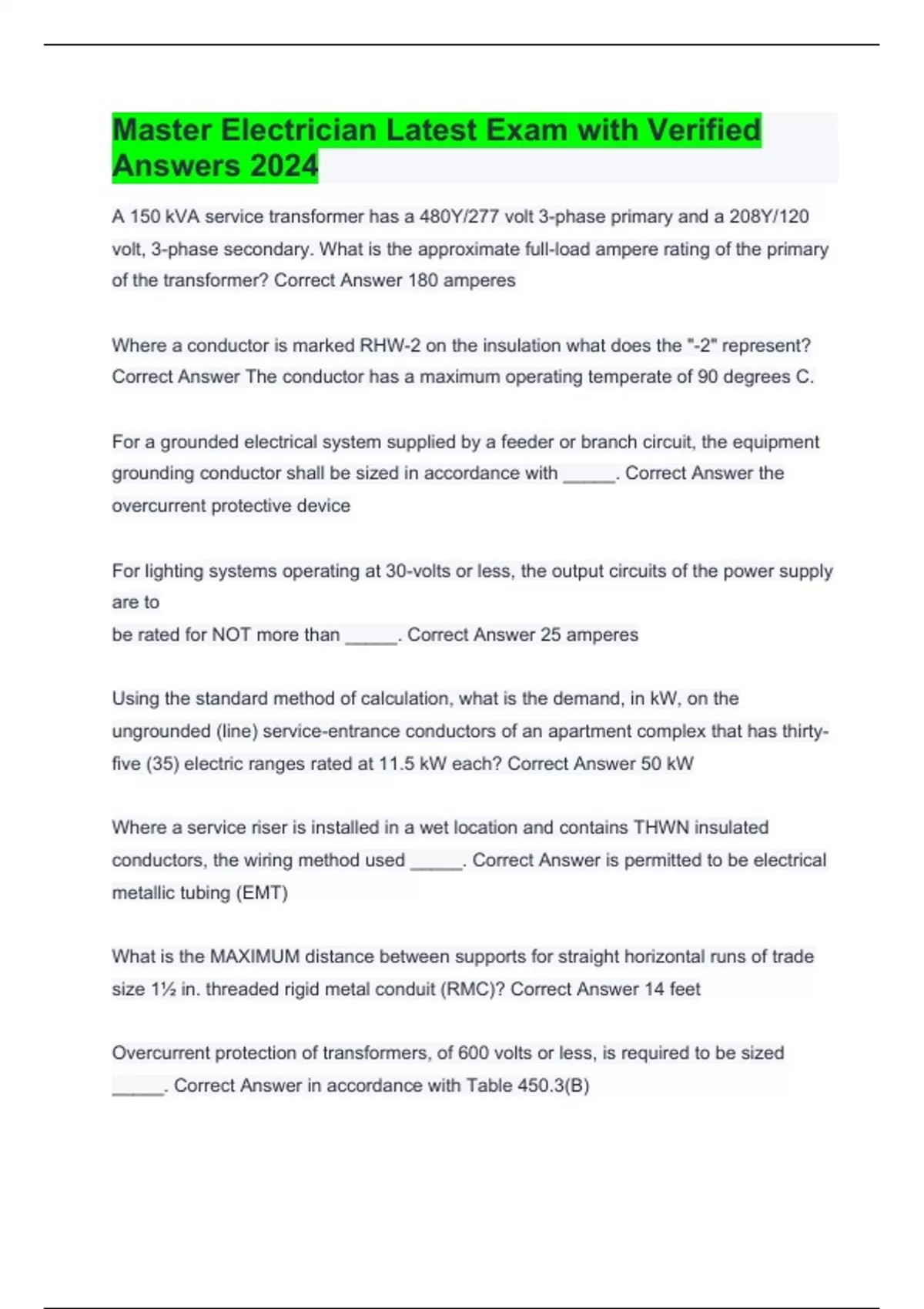

Master Electrician Latest Exam with Verified Answers 2024

Master Electrician Latest Exam with Verified Answers 2024 A 150 kVA service transformer has a 480Y/277 volt 3-phase primary and a 208Y/120 volt, 3-phase secondary. What is the approximate full-load ampere rating of the primary of the transformer? Correct Answer 180 amperes Where a conductor is marked RHW-2 on the insulation what does the "-2" represent? Correct Answer The conductor has a maximum operating temperate of 90 degrees C. For a grounded electrical system supplied by a feeder or branch circuit, the equipment grounding conductor shall be sized in accordance with _____. Correct Answer the overcurrent protective device For lighting systems operating at 30-volts or less, the output circuits of the power supply are to be rated for NOT more than _____. Correct Answer 25 amperes Using the standard method of calculation, what is the demand, in kW, on the ungrounded (line) service-entrance conductors of an apartment complex that has thirty-five (35) electric ranges rated at 11.5 kW each? Correct Answer 50 kW Where a service riser is installed in a wet location and contains THWN insulated conductors, the wiring method used _____. Correct Answer is permitted to be electrical metallic tubing (EMT) What is the MAXIMUM distance between supports for straight horizontal runs of trade size 1½ in. threaded rigid metal conduit (RMC)? Correct Answer 14 feet Overcurrent protection of transformers, of 600 volts or less, is required to be sized _____. Correct Answer in accordance with Table 450.3(B) A thermal barrier shall be required if the space between the resistors and reactors, of 600 volts or less, and combustible material is LESS than _____. Correct Answer 12 inches In movie theaters, all switches for controlling the emergency lighting systems shall be located _____. Correct Answer in the lobby Where a 90 ampere, 240-volt, single-phase load is located 225 feet from a panelboard and is supplied with size 3 AWG copper conductors, determine the approximate voltage
