Drafting 3 - ADDA Architectural CD (up to Competency 8) Exam With Complete Solutions 2024

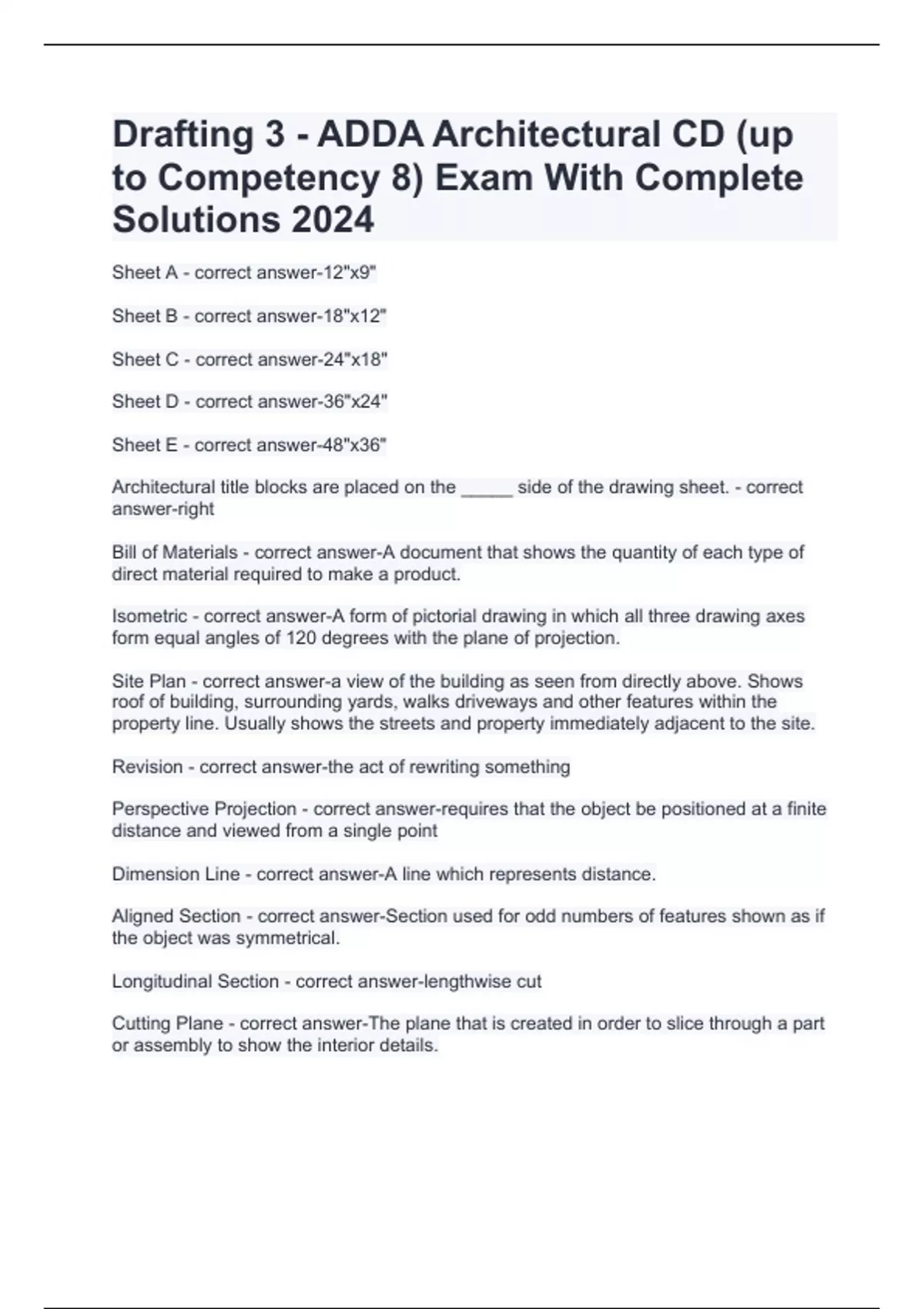

Drafting 3 - ADDA Architectural CD (up to Competency 8) Exam With Complete Solutions 2024 Sheet A - correct answer-12"x9" Sheet B - correct answer-18"x12" Sheet C - correct answer-24"x18" Sheet D - correct answer-36"x24" Sheet E - correct answer-48"x36" Architectural title blocks are placed on the _____ side of the drawing sheet. - correct answer-right Bill of Materials - correct answer-A document that shows the quantity of each type of direct material required to make a product. Isometric - correct answer-A form of pictorial drawing in which all three drawing axes form equal angles of 120 degrees with the plane of projection. Site Plan - correct answer-a view of the building as seen from directly above. Shows roof of building, surrounding yards, walks driveways and other features within the property line. Usually shows the streets and property immediately adjacent to the site. Revision - correct answer-the act of rewriting something Perspective Projection - correct answer-requires that the object be positioned at a finite distance and viewed from a single point Dimension Line - correct answer-A line which represents distance. Aligned Section - correct answer-Section used for odd numbers of features shown as if the object was symmetrical. Longitudinal Section - correct answer-lengthwise cut Cutting Plane - correct answer-The plane that is created in order to slice through a part or assembly to show the interior details.
