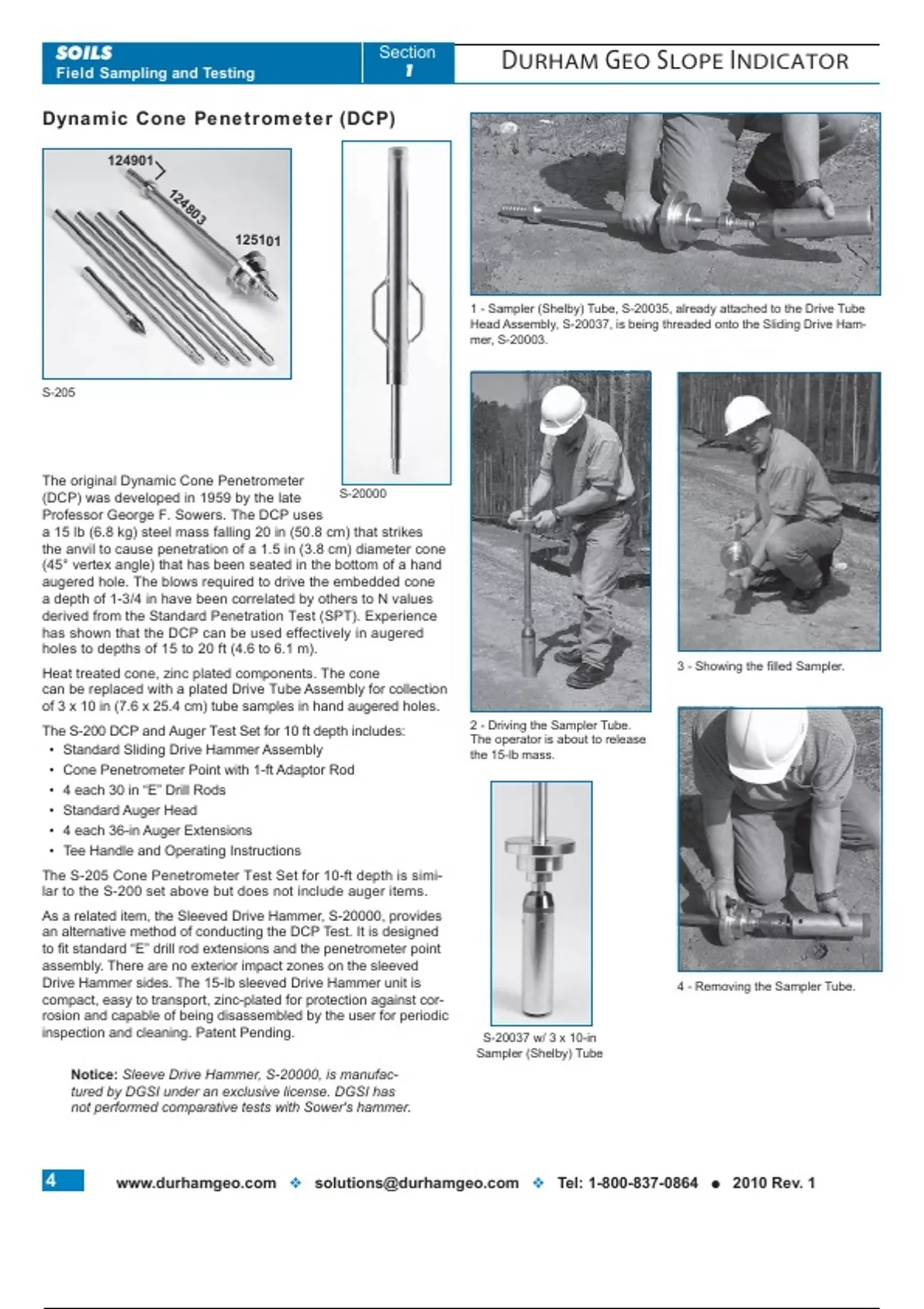

SOILS Section
DURHAM GEO SLOPE INDICATOR
Field Sampling and Testing 1
Dynamic Cone Penetrometer (DCP)
124901
12
48
03
125101
1 - Sampler (Shelby) Tube, S-20035, already attached to the Drive Tube
Head Assembly, S-20037, is being threaded onto the Sliding Drive Ham-
mer, S-20003.
S-205
The original Dynamic Cone Penetrometer
(DCP) was developed in 1959 by the late S-20000
Professor George F. Sowers. The DCP uses
a 15 lb (6.8 kg) steel mass falling 20 in (50.8 cm) that strikes
the anvil to cause penetration of a 1.5 in (3.8 cm) diameter cone
(45° vertex angle) that has been seated in the bottom of a hand
augered hole. The blows required to drive the embedded cone
a depth of 1-3/4 in have been correlated by others to N values
derived from the Standard Penetration Test (SPT). Experience
has shown that the DCP can be used effectively in augered
holes to depths of 15 to 20 ft (4.6 to 6.1 m).
3 - Showing the filled Sampler.
Heat treated cone, zinc plated components. The cone
can be replaced with a plated Drive Tube Assembly for collection
of 3 x 10 in (7.6 x 25.4 cm) tube samples in hand augered holes.
The S-200 DCP and Auger Test Set for 10 ft depth includes: 2 - Driving the Sampler Tube.
The operator is about to release
• Standard Sliding Drive Hammer Assembly the 15-lb mass.
• Cone Penetrometer Point with 1-ft Adaptor Rod
• 4 each 30 in “E” Drill Rods
• Standard Auger Head
• 4 each 36-in Auger Extensions
• Tee Handle and Operating Instructions
The S-205 Cone Penetrometer Test Set for 10-ft depth is simi-
lar to the S-200 set above but does not include auger items.
As a related item, the Sleeved Drive Hammer, S-20000, provides
an alternative method of conducting the DCP Test. It is designed
to fit standard “E” drill rod extensions and the penetrometer point
assembly. There are no exterior impact zones on the sleeved
Drive Hammer sides. The 15-lb sleeved Drive Hammer unit is 4 - Removing the Sampler Tube.
compact, easy to transport, zinc-plated for protection against cor-
rosion and capable of being disassembled by the user for periodic
inspection and cleaning. Patent Pending. S-20037 w/ 3 x 10-in
Sampler (Shelby) Tube
Notice: Sleeve Drive Hammer, S-20000, is manufac-
tured by DGSI under an exclusive license. DGSI has
not performed comparative tests with Sower's hammer.
4 www.durhamgeo.com ❖ ❖ Tel: 1-800-837-0864 ● 2010 Rev. 1
, DURHAM GEO SLOPE INDICATOR Section SOILS
1 Field Sampling and Testing
Static Cone Penetrometer
S-21018
S-200
S-215 S-215 in use
S-200 DCP (w/ Standard Hammer) and Auger Test Set 78 lb
DGSI Static Cone Penetrometers are used to evaluate the consis-
S-201 DCP (Sleeved Hammer) and Auger Test Set 78 lb tency of soils, their level of compaction and the bearing capacity of
S-205 DCP (w/ Standard Hammer) Test Set 72 lb shallow foundations and pavement subgrades. Specifically devel-
S-206 DCP (Sleeved Hammer) Test Set 72 lb oped for use in fine grained soils, particularly soft soils, to depths of
30 ft and they use a 60° cone with an area of 1.5 cm2. An optional
Accessories
cone with a 3 cm2 area is available for use in very soft soils.
S-20010 1 ft (0.3 m) E Drill Rod Extension
S-20025 30 in (0.76 m) E Drill Rod Extension (recommended)
■ Dual rod construction isolates cone resistance from shaft friction
S-20050 5 ft (1.75 m) E Drill Rod Extension ■ Pressure gauge ranging from 0 to 70 kg/cm2 reads cone resis-
S-20037 3 in Drive Tube Head Assembly, zinc plated tance directly, eliminating need for proving ring conversions
S-20035 3 x 10 in Sampler Tube, swaged end, zinc ■ Stainless steel and anodized aluminum construction for reli-
plated, (includes 10 caps) able performance
DS-630 Plastic Cap for 3 in OD Tube ■ 24-in starter rod and optional 24-in extension rods
Replacement Parts
Standard models include:
S-20000 Modified Sliding DCP Sleeved Drive Hammer
• A 60° cone with a maximum area of 1.5 cm2
S-20001 Heat-Treated Drive Point w/ 1 ft Adaptor Rod
• A Starter Rod Assembly designed to withstand an axial force
S-20001-1 Roll Pin for the Point of 250 lbf (340 N•m) maximum
S-20002 Heat-Treated Drive Point w/ Roll Pin • Pressure gauge marked in kg/cm2
S-20003 Sliding Drive Hammer Assembly • Operating Instructions and parts list
S-20003-1 Roll Pin for the Stop Block
S-20004 Operating Instructions S-215 Static Cone Penetrometer, with 24-in Starter Rod 8 lb
Assembly
S-20005 #399 Publication
Replacement Parts
124803 Hammer Shaft
AP-2100-1 Head Assembly
125101 15 lb Weight Mass
S-21018 60° Cone w/maximum area of 1.5 cm2
124901 Top Stop Block
S-21511 24-in Starter Rod Assembly
601189 Hammer Stem, forged / machined, for S-20000
S-21510 24-in Extension Rod Assembly
S-212M Instruction Manual
S-21021 “O” Ring Packing Kit (2 ea. 2404013)
Accessory Items
S-21010 60° Cone with maximum area of 3 cm2
S-21501 24-in Outer Rod Only
S-21502 24-in Starter Inner Rod Only (actual OAL: 24.875 in)
S-21503 24-in extension Inner Rod Only (actual OAL: 24 in)
Note: To function properly, the penetrometer gauge requires high-
grade, non-detergent, hydraulic fluid. Always drain existing fluid
from the gauge prior to refilling and refill the gauge with the starter
rod attached w/ zero load.
www.durhamgeo.com ❖ ❖ Tel: 1-800-837-0864 ● 2010 Rev. 1 5
