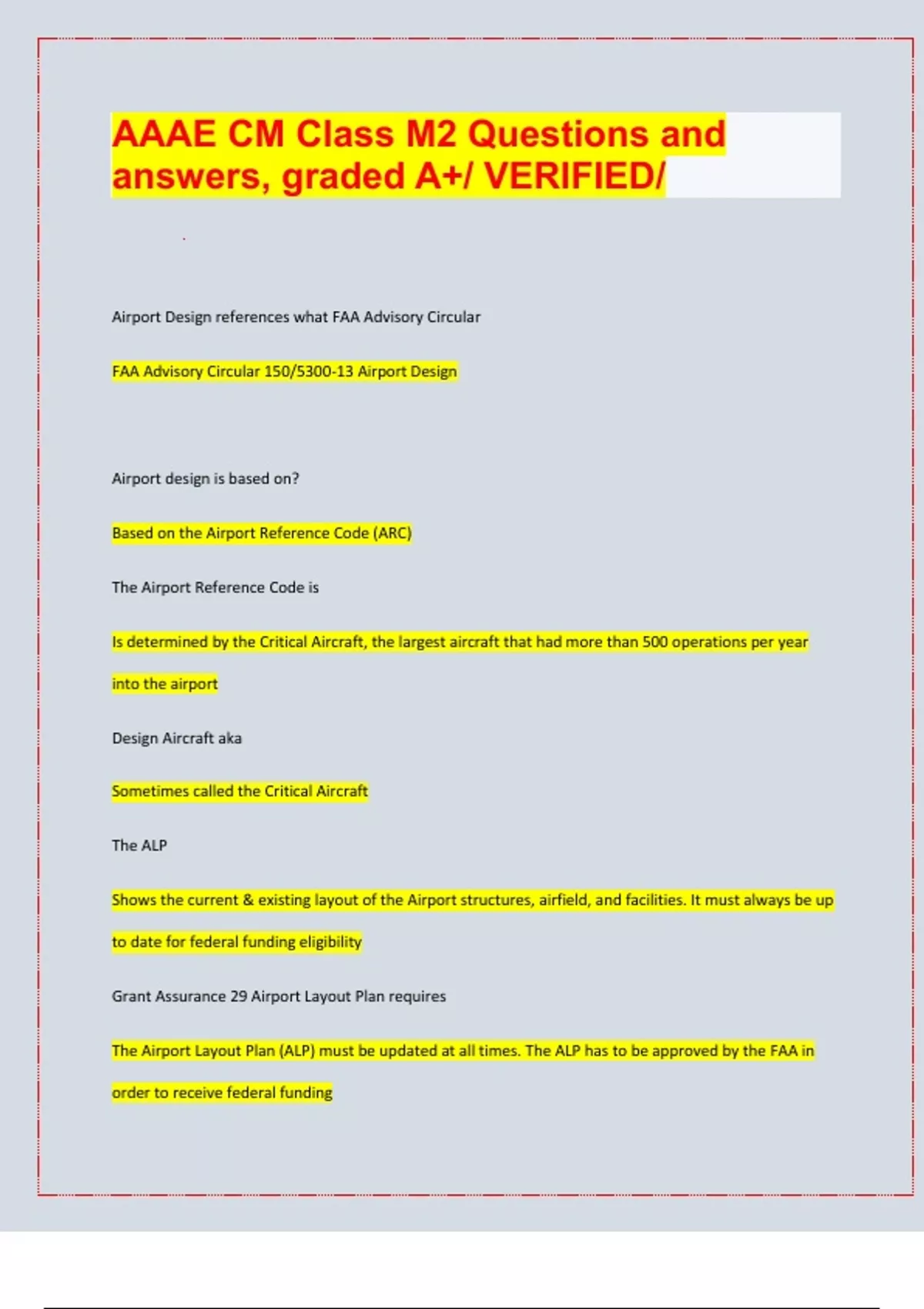

AAAE CM Class M2 Questions and answers, graded A+/ VERIFIED/ Airport Design references what FAA Advisory Circular FAA Advisory Circular 150/5300-13 Airport Design Airport design is based on? Based on the Airport Reference Code (ARC) The Airport Reference Code is Is determined by the Critical Aircraft, the largest aircraft that had more than 500 operations per year into the airport Design Aircraft aka Sometimes called the Critical Aircraft The ALP Shows the current & existing layout of the Airport structures, airfield, and facilities. It must always be up to date for federal funding eligibility Grant Assurance 29 Airport Layout Plan requires The Airport Layout Plan (ALP) must be updated at all times. The ALP has to be approved by the FAA in order to receive federal funding ALP Cover Sheet Shows signature blocks and area maps Data Sheet Shows Wind Rose, Airport reference code, runway length, Runway protection areas, runway end coordinates, non-standard conditions What is a Wind Rose? Shows the percentage of time the wind blows from a particular direction and speed Airport Layout Plan sheet Shows existing and future planned facilities Facilities Layout Plan / Terminal Area plan Shows Terminal Buildings, heights of buildings, ownership, leasehold Airport Airspace Drawin
