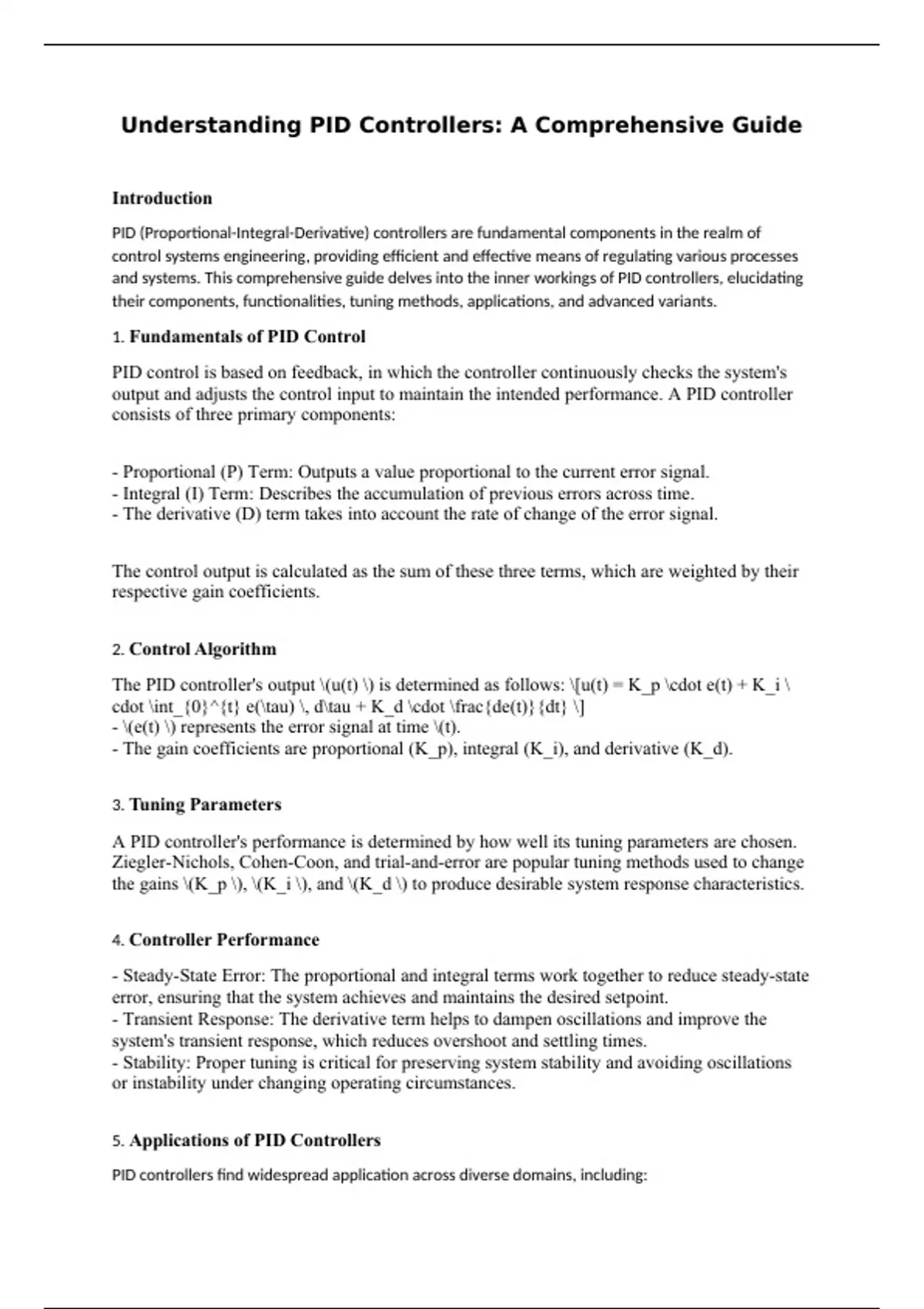

Understanding PID Controllers: A Comprehensive Guide
Introduction
PID (Proportional-Integral-Derivative) controllers are fundamental components in the realm of
control systems engineering, providing efficient and effective means of regulating various processes
and systems. This comprehensive guide delves into the inner workings of PID controllers, elucidating
their components, functionalities, tuning methods, applications, and advanced variants.
1. Fundamentals of PID Control
PID control is based on feedback, in which the controller continuously checks the system's
output and adjusts the control input to maintain the intended performance. A PID controller
consists of three primary components:
- Proportional (P) Term: Outputs a value proportional to the current error signal.
- Integral (I) Term: Describes the accumulation of previous errors across time.
- The derivative (D) term takes into account the rate of change of the error signal.
The control output is calculated as the sum of these three terms, which are weighted by their
respective gain coefficients.
2. Control Algorithm
The PID controller's output \(u(t) \) is determined as follows: \[u(t) = K_p \cdot e(t) + K_i \
cdot \int_{0}^{t} e(\tau) \, d\tau + K_d \cdot \frac{de(t)}{dt} \]
- \(e(t) \) represents the error signal at time \(t).
- The gain coefficients are proportional (K_p), integral (K_i), and derivative (K_d).
3. Tuning Parameters
A PID controller's performance is determined by how well its tuning parameters are chosen.
Ziegler-Nichols, Cohen-Coon, and trial-and-error are popular tuning methods used to change
the gains \(K_p \), \(K_i \), and \(K_d \) to produce desirable system response characteristics.
4. Controller Performance
- Steady-State Error: The proportional and integral terms work together to reduce steady-state
error, ensuring that the system achieves and maintains the desired setpoint.
- Transient Response: The derivative term helps to dampen oscillations and improve the
system's transient response, which reduces overshoot and settling times.
- Stability: Proper tuning is critical for preserving system stability and avoiding oscillations
or instability under changing operating circumstances.
5. Applications of PID Controllers
PID controllers find widespread application across diverse domains, including:
