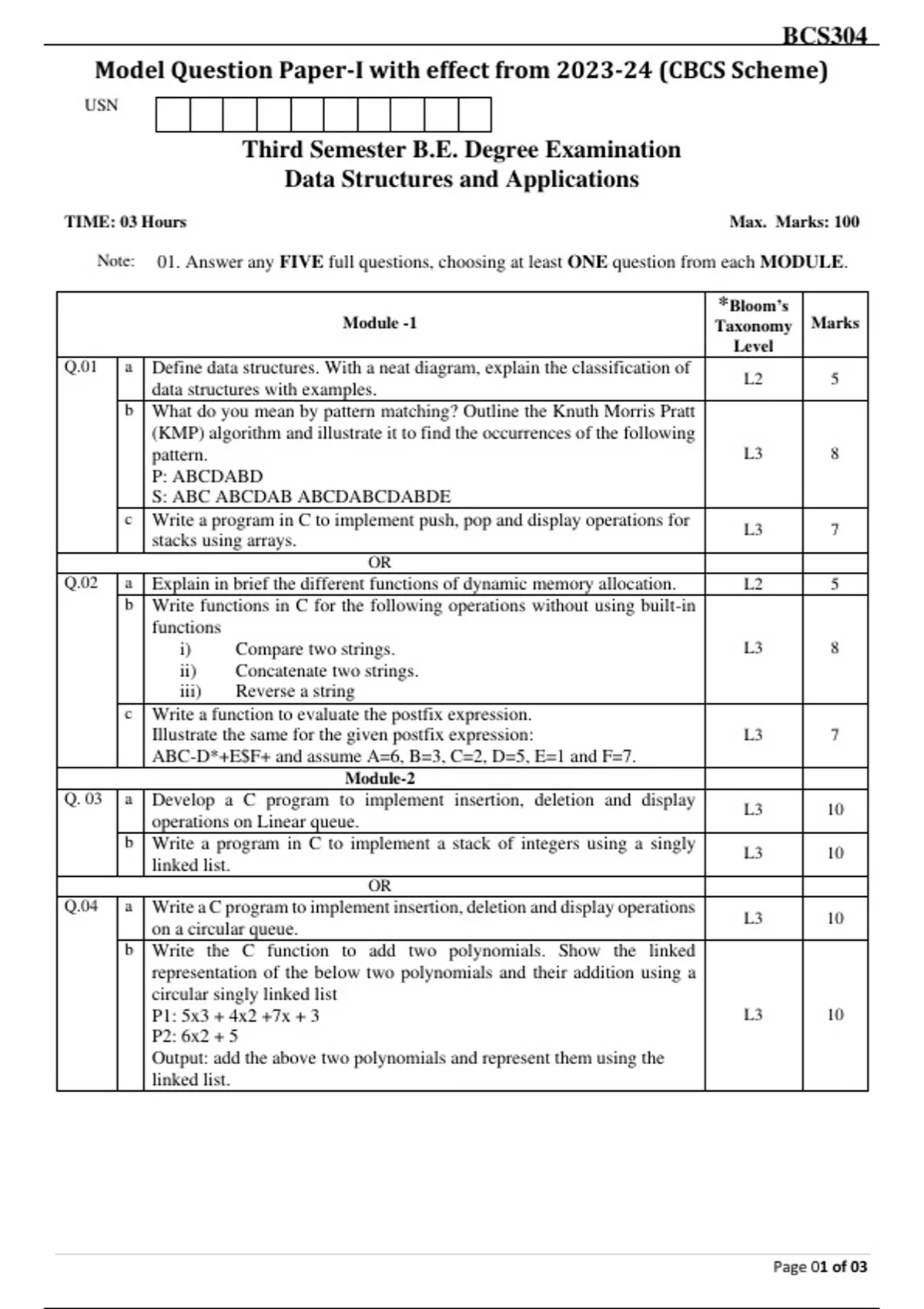

BCS304
Model Question Paper-I with effect from 2023-24 (CBCS Scheme)
USN
Third Semester B.E. Degree Examination
Data Structures and Applications
TIME: 03 Hours Max. Marks: 100
Note: 01. Answer any FIVE full questions, choosing at least ONE question from each MODULE.
*Bloom’s
Module -1 Taxonomy Marks
Level
Q.01 a Define data structures. With a neat diagram, explain the classification of
L2 5
data structures with examples.
b What do you mean by pattern matching? Outline the Knuth Morris Pratt
(KMP) algorithm and illustrate it to find the occurrences of the following
pattern. L3 8
P: ABCDABD
S: ABC ABCDAB ABCDABCDABDE
c Write a program in C to implement push, pop and display operations for
L3 7
stacks using arrays.
OR
Q.02 a Explain in brief the different functions of dynamic memory allocation. L2 5
b Write functions in C for the following operations without using built-in
functions
i) Compare two strings. L3 8
ii) Concatenate two strings.
iii) Reverse a string
c Write a function to evaluate the postfix expression.
Illustrate the same for the given postfix expression: L3 7
ABC-D*+E$F+ and assume A=6, B=3, C=2, D=5, E=1 and F=7.
Module-2
Q. 03 a Develop a C program to implement insertion, deletion and display
L3 10
operations on Linear queue.
b Write a program in C to implement a stack of integers using a singly
L3 10
linked list.
OR
Q.04 a Write a C program to implement insertion, deletion and display operations
L3 10
on a circular queue.
b Write the C function to add two polynomials. Show the linked
representation of the below two polynomials and their addition using a
circular singly linked list
P1: 5x3 + 4x2 +7x + 3 L3 10
P2: 6x2 + 5
Output: add the above two polynomials and represent them using the
linked list.
Page 01 of 03
