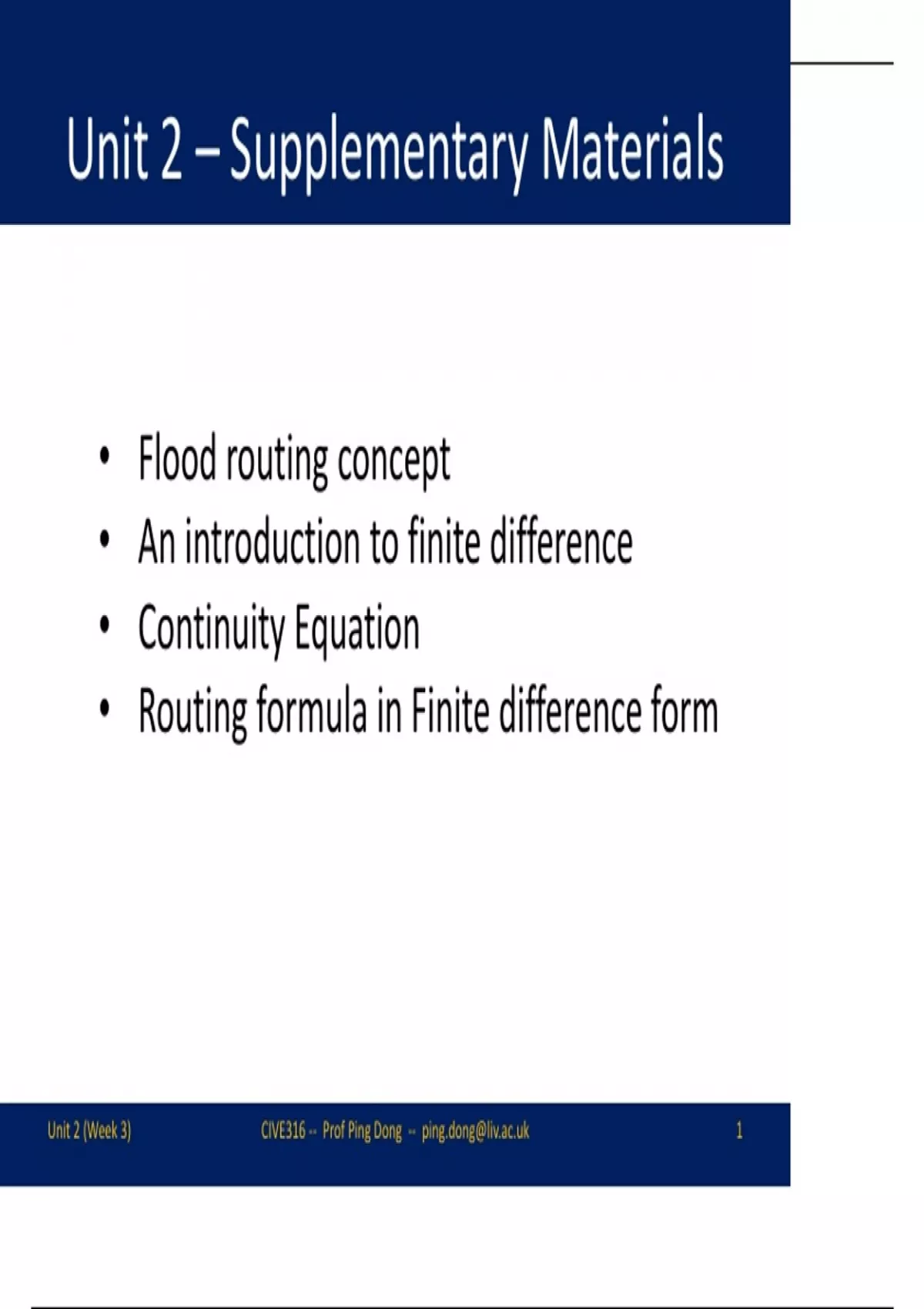

Unit 2 – Supplementary Materials


• Flood routing concept
• An introduction to finite difference
• Continuity Equation
• Routing formula in Finite difference form




Unit 2 (Week 3) CIVE316 -- Prof Ping Dong -- 1

, Flood Routing Concept


Flood routing is a calculating procedure that
follows the behaviour of flood hydrograph upstream
to down stream




Unit 2 (Week 3) CIVE316 -- Prof Ping Dong -- 2

, Types of Flood Routing

River routing Definitions
determines the flood propagation
from an upstream section to a down stream section.
Reservoir or storage routing determines the
outgoing flood hydrograph from the incoming flood
to the storage




Unit 2 (Week 3) CIVE316 -- Prof Ping Dong -- 3
