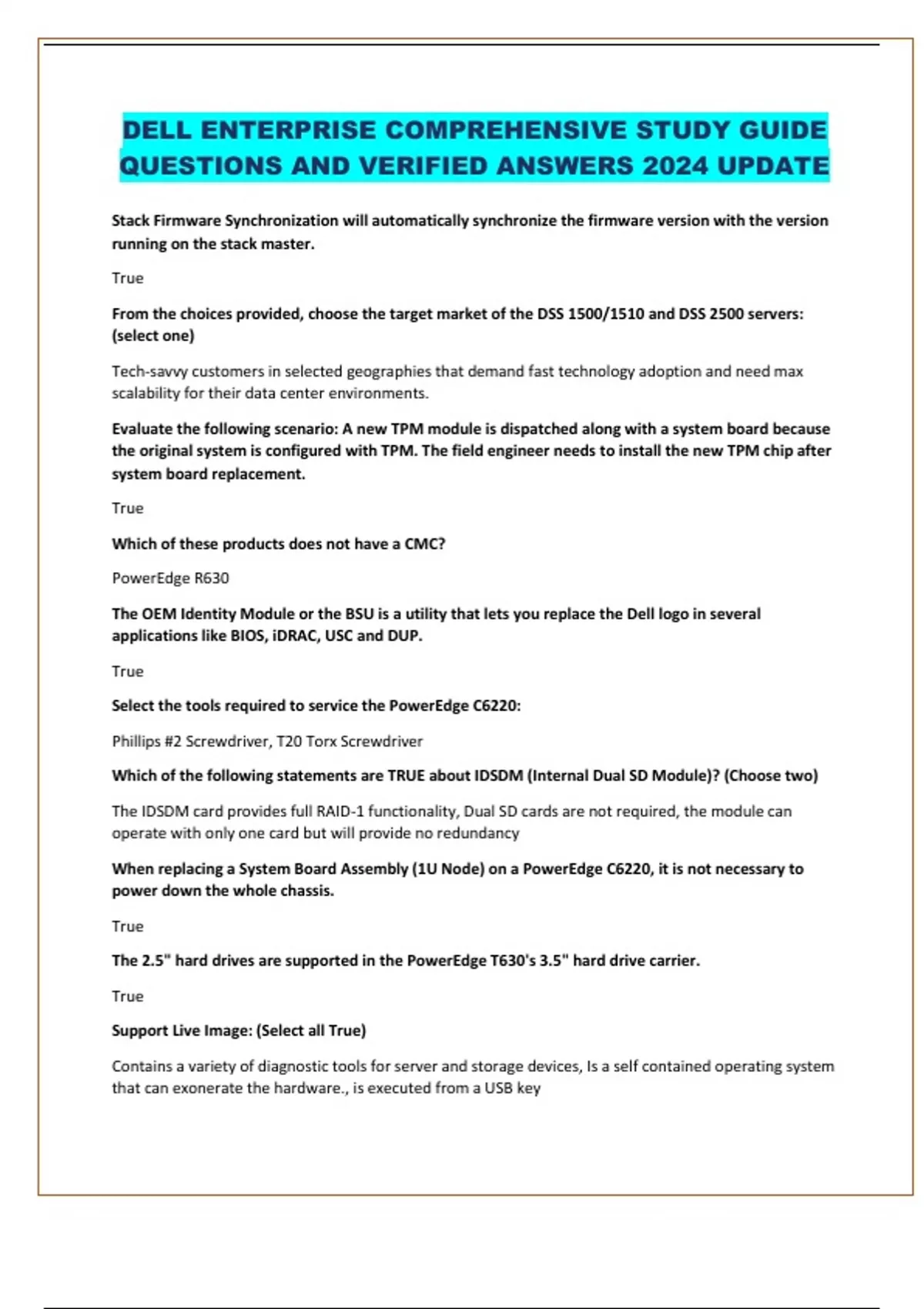

DELL ENTERPRISE COMPREHENSIVE STUDY GUIDE
QUESTIONS AND VERIFIED ANSWERS 2024 UPDATE
Stack Firmware Synchronization will automatically synchronize the firmware version with the version
running on the stack master.
True
From the choices provided, choose the target market of the DSS 1500/1510 and DSS 2500 servers:
(select one)
Tech-savvy customers in selected geographies that demand fast technology adoption and need max
scalability for their data center environments.
Evaluate the following scenario: A new TPM module is dispatched along with a system board because
the original system is configured with TPM. The field engineer needs to install the new TPM chip after
system board replacement.
True
Which of these products does not have a CMC?
PowerEdge R630
The OEM Identity Module or the BSU is a utility that lets you replace the Dell logo in several
applications like BIOS, iDRAC, USC and DUP.
True
Select the tools required to service the PowerEdge C6220:
Phillips #2 Screwdriver, T20 Torx Screwdriver
Which of the following statements are TRUE about IDSDM (Internal Dual SD Module)? (Choose two)
The IDSDM card provides full RAID-1 functionality, Dual SD cards are not required, the module can
operate with only one card but will provide no redundancy
When replacing a System Board Assembly (1U Node) on a PowerEdge C6220, it is not necessary to
power down the whole chassis.
True
The 2.5" hard drives are supported in the PowerEdge T630's 3.5" hard drive carrier.
True
Support Live Image: (Select all True)
Contains a variety of diagnostic tools for server and storage devices, Is a self contained operating system
that can exonerate the hardware., is executed from a USB key
, Looking at the PowerEdge R730 reference course, direct front panel access to the iDRAC is accessible
using a:
Type A to A USB cable
The iDRAC Direct LED indicator will not light up for USB mode.
True
When replacing a hard drive backplane on DSS 7000, you must remember to migrate:
Light pipes at front of backpane.
With stackable switched, which command is used to push firmware from the master unit to all units in
the stack?
Console# copy image unit all
Running ePSA is:
Essential prior to Parts replacement to confirm you have the right parts
A way to make sure there are no other problems
Used after parts replacement to help confirm the part fixed the customer's problem.
Choose the FALSE answer regarding the DSS 7500 Paddle Boards?
Located on the chassis.
How many hot-swappable fan modules can the DELL Networking Z9500 switch support on the utility
side?
5
When discussing block level communication in a storage environment, the initiator is the device that
initiates communication with a target device.
True
Will Dell recycle electronics from other manufacturers?
Yes, with the purchase of a new Dell product.
The DSS 7000/ DSS7500 system has a maximum of
2 server sleds and 90 HD
After replacing the system board for a PowerEdge 720, the customer asks you to restore their iDRAC
license but does not have it. Which two
Offer to upload a temp license using your Support Live Image USB Key.
Inform the customer it can only be downloaded by them through their Dell customer account.
Dell has determined that occasional orange discoloration on the processor package gold pads was
assessed and confirmed to have no impact on electrical performance, quality, or reliability.
