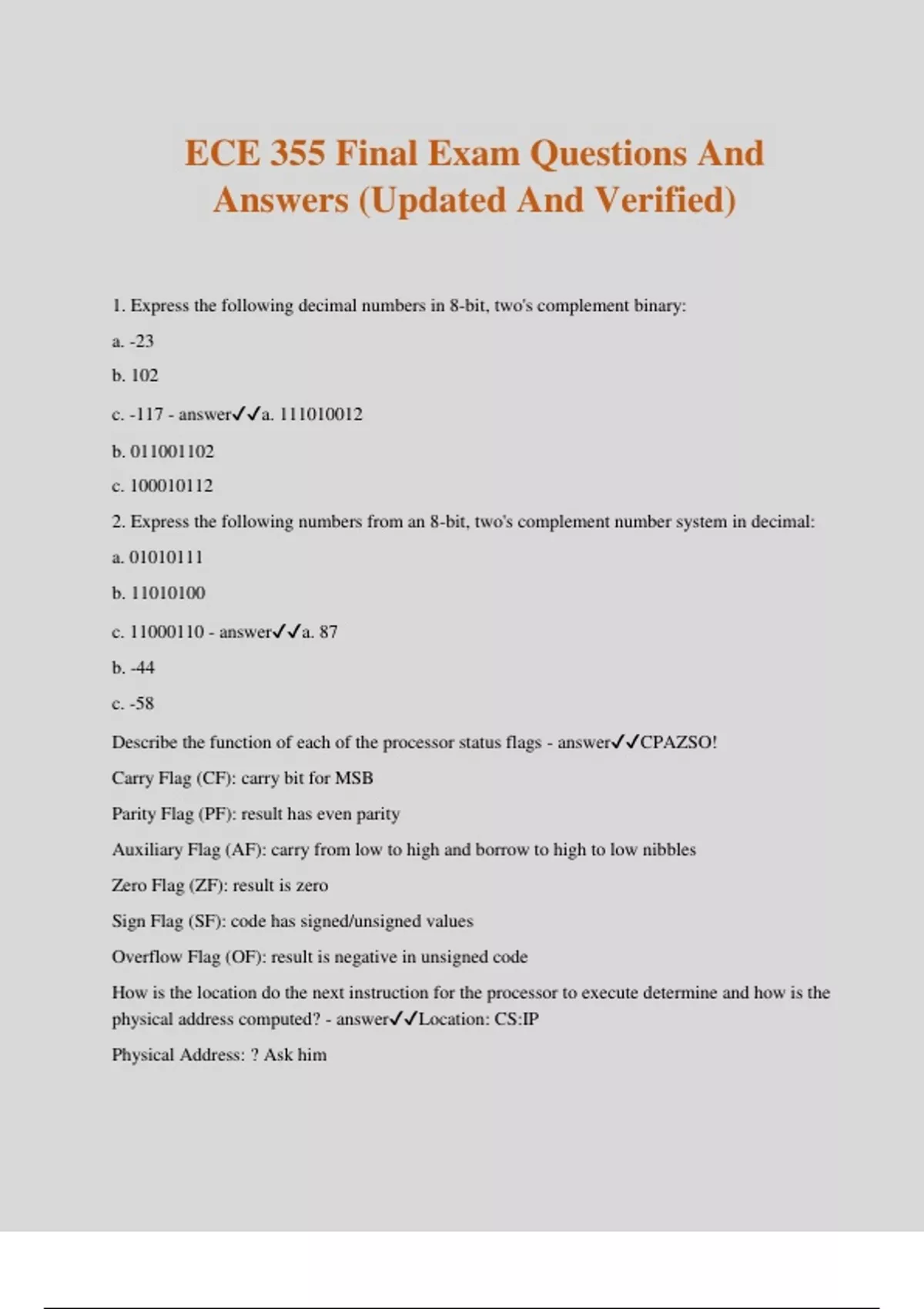

ECE 355 Final Exam Questions And Answers (Updated And Verified)

ECE 355 Final Exam Questions And Answers (Updated And Verified) 1. Express the following decimal numbers in 8-bit, two's complement binary: a. -23 b. 102 c. -117 - answera. b. c. 2. Express the following numbers from an 8-bit, two's complement number system in decimal: a. b. c. - answera. 87 b. -44 c. -58 Describe the function of each of the processor status flags - answerCPAZSO! Carry Flag (CF): carry bit for MSB Parity Flag (PF): result has even parity Auxiliary Flag (AF): carry from low to high and borrow to high to low nibbles Zero Flag (ZF): result is zero Sign Flag (SF): code has signed/unsigned values Overflow Flag (OF): result is negative in unsigned code How is the location do the next instruction for the processor to execute determine and how is the physical address computed? - answerLocation: CS:IP Physical Address: ? Ask him 5. Identify the addressing modes for the source and destination operands of the following instructions. a. MOV AX, 0FFH b. MOV [BX] + 0020H, CX c. MOV [BX] [SI] +1020H, DX - answera. MOV AX, 0FFH Destination: AX (Register) Source: OFFH (Immediate Data) b. MOV [BX] + 0020H, CX Destination: [BX] (Register) Source: CX (Indirect with offset) c. MOV [BX] [SI] +1020H, DX Destination: [BX] [SI] (Based indexed Register with offset) Source: DX (Register) Encode the following instructions in machine code: a.) ADD AL, CL b.) SUB DX, [BX][DI]+20H - answer Operation and flag settings: CMP AX, BX Jump if AX BX Which instruction would you use to do this and what flag settings are needed for the jump to occur if: a. the values in the register were considered unsigned. b. If the values in the register were considered signed. - answerUnsigned: Operation: JA Flag settings: (C + Z)' Signed: Operation: JG
