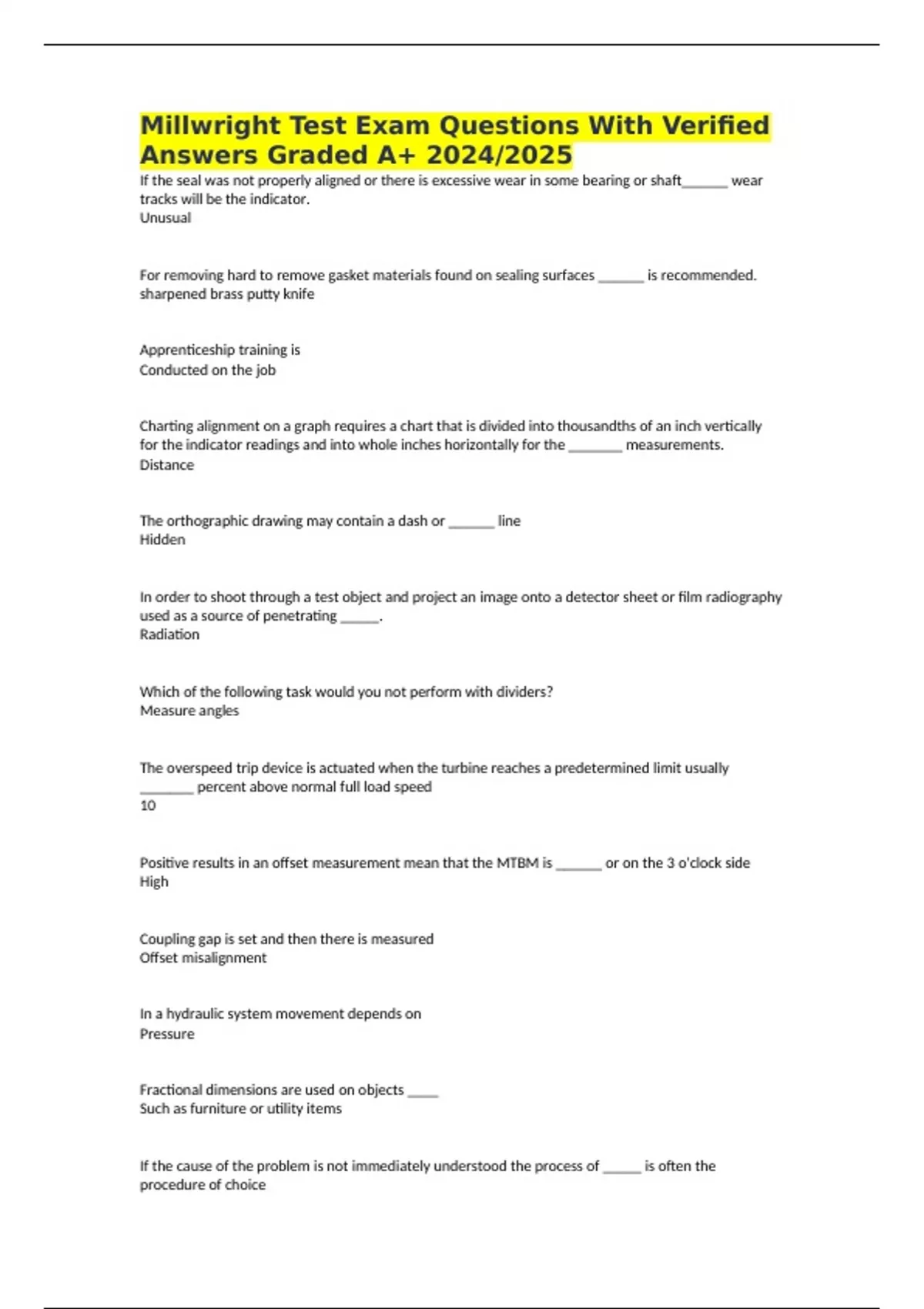

Millwright Test Exam Questions With Verified
Answers Graded A+ 2024/2025
If the seal was not properly aligned or there is excessive wear in some bearing or shaft______ wear
tracks will be the indicator.
Unusual
For removing hard to remove gasket materials found on sealing surfaces ______ is recommended.
sharpened brass putty knife
Apprenticeship training is
Conducted on the job
Charting alignment on a graph requires a chart that is divided into thousandths of an inch vertically
for the indicator readings and into whole inches horizontally for the _______ measurements.
Distance
The orthographic drawing may contain a dash or ______ line
Hidden
In order to shoot through a test object and project an image onto a detector sheet or film radiography
used as a source of penetrating _____.
Radiation
Which of the following task would you not perform with dividers?
Measure angles
The overspeed trip device is actuated when the turbine reaches a predetermined limit usually
_______ percent above normal full load speed
10
Positive results in an offset measurement mean that the MTBM is ______ or on the 3 o'clock side
High
Coupling gap is set and then there is measured
Offset misalignment
In a hydraulic system movement depends on
Pressure
Fractional dimensions are used on objects ____
Such as furniture or utility items
If the cause of the problem is not immediately understood the process of _____ is often the
procedure of choice
,Elimination
When applying sealant to the sealing glands flanges keep the sealant away from the inside edges of
the flange by at least _______ inch
3/16
A stroboscope is triggered by _______
Transducer
The page of threaded fasteners is measured with a ______ gauge.
Thread
Liquid penetrant highlights flaws in reveals ______.
Surface cracks
The tool used to cut external threads on a boat or rod is a____
Die
A bill of materials may include information on ______ and other reference information
Special processes
Engaged gears always have the same ______
Surface speed
Elevation of equipment is usually found in the
General arrangements
Inspect the police rollers in idlers for unevenness or _____
Vibrations
When cutting then steel with oxy fuel cutting equipment all the torch say that the temp is pointing in
the direction the torch is traveling at a ______ angle
15-20 degrees
Labyrinth seals work best with materials such as
Grease
Lubrication is the application of any substances that reduces _____
Friction
When the dial indicator is mounted on the complex reverse driven coupling jig the indicator is
registered on the ____
Driver coupling Jig
, Pipe should be stored ____
racks
The most common type of ball bearing is a _____ bearing
Single deep groove radial
Couplings that are installed after the driver and driven shafts have been aligned and the equipment
has been fastened into position are _____ couplings
Split
When two or more numbers are multiplied to make another number they are called ______ of the
third number
Factors
The continuous reading dial indicator starts at zero and _____
Increases clockwise
Vibration with an a specific narrowband range can be detected by _____.
Electronic filters
Of the following types of O-rings you would select _______ for an application where temperatures
may be -300°F or 500°F
Teflon
Special cleaning tips for cutting of bald head in notes is called a _______ tip
Rivet cutting
PCVs limit and regulate the _____ in the system
Pressure
The total distance that the chef travels from one piece to the other during one vibration cycle is the
_____.
Displacement
A positive- contact seal generally used on cylinder pistons is the ______ seal
Cup
Equipment reference points are marked with
Brass plugs
On a hydraulic press use a piece of material softer than the work best to keep from ______ the work
piece
Marring
