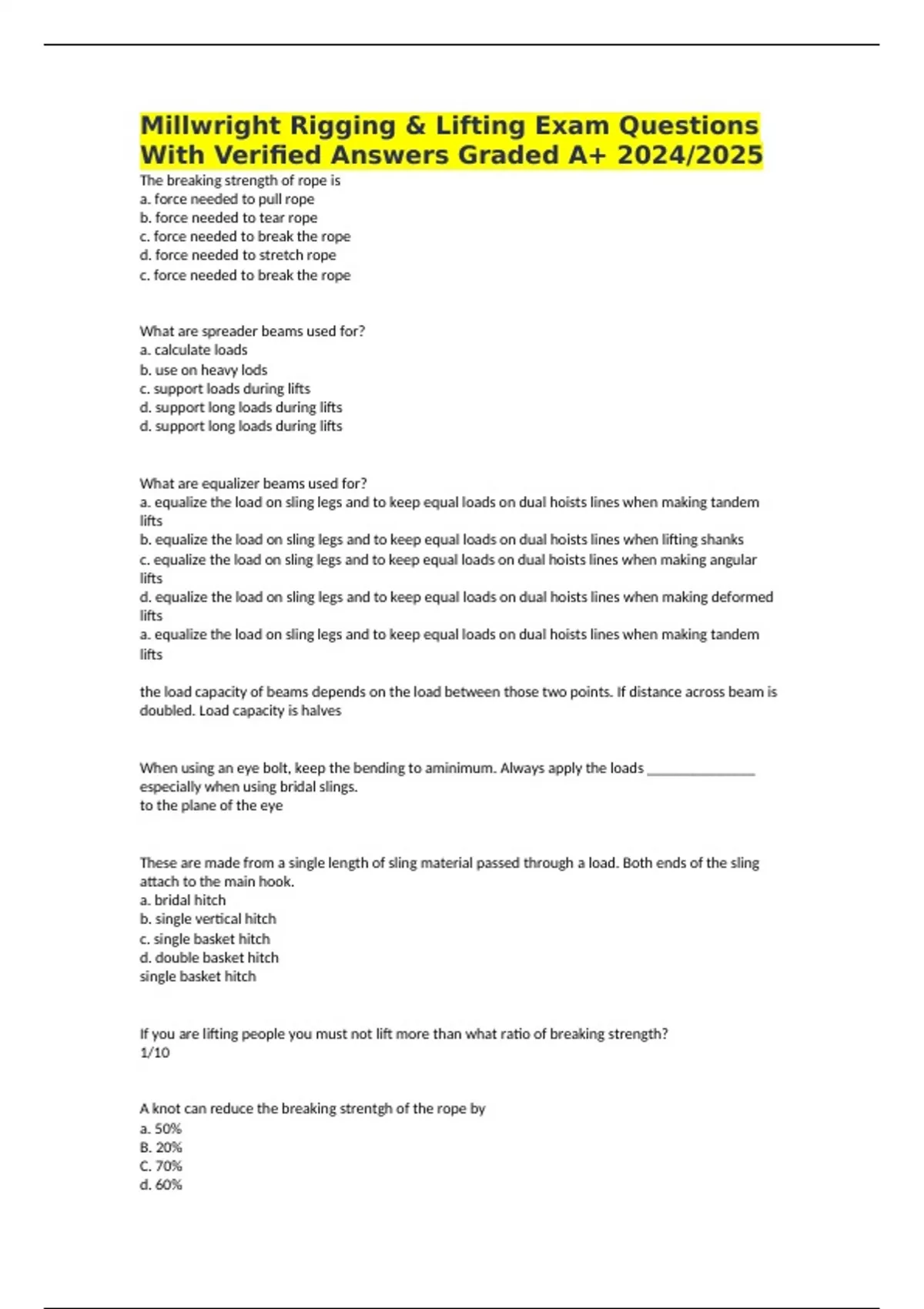

Millwright Rigging & Lifting Exam Questions
With Verified Answers Graded A+ 2024/2025
The breaking strength of rope is
a. force needed to pull rope
b. force needed to tear rope
c. force needed to break the rope
d. force needed to stretch rope
c. force needed to break the rope
What are spreader beams used for?
a. calculate loads
b. use on heavy lods
c. support loads during lifts
d. support long loads during lifts
d. support long loads during lifts
What are equalizer beams used for?
a. equalize the load on sling legs and to keep equal loads on dual hoists lines when making tandem
lifts
b. equalize the load on sling legs and to keep equal loads on dual hoists lines when lifting shanks
c. equalize the load on sling legs and to keep equal loads on dual hoists lines when making angular
lifts
d. equalize the load on sling legs and to keep equal loads on dual hoists lines when making deformed
lifts
a. equalize the load on sling legs and to keep equal loads on dual hoists lines when making tandem
lifts
the load capacity of beams depends on the load between those two points. If distance across beam is
doubled. Load capacity is halves
When using an eye bolt, keep the bending to aminimum. Always apply the loads ______________
especially when using bridal slings.
to the plane of the eye
These are made from a single length of sling material passed through a load. Both ends of the sling
attach to the main hook.
a. bridal hitch
b. single vertical hitch
c. single basket hitch
d. double basket hitch
single basket hitch
If you are lifting people you must not lift more than what ratio of breaking strength?
1/10
A knot can reduce the breaking strentgh of the rope by
a. 50%
B. 20%
C. 70%
d. 60%
, a. 50%
cable clips 20%
sharp corners should have padding
Tackle blocks are similar to wire rope blocks but are lightrer and have?
a. larger shanks
b. more sheaves
c. lighter capacity
d. higher capacity
c. lighter capacity
A complete list of hand signals can be found in appendix D of the WCB for what signal?
moving loads, crane signals
In a test gauge if the link enters up to the second step marked R there is evidence of
a. perfect alignment
b. considerable wear or stretch
c. excessive wear and stretch
d. heat casting
b. consideRable wear and or stretch
Stamped C means excessive wear and stretch
If the hoist is overloaded it is first indicated by?
a. heat stress
b. closing of hook
c. opening of lower hook
c. closing of top hook
c. opening of lower hook
As the angle between the lines of a snatch block increased the stress on the block and hook
________________.
a. increases
b. decreases
c. stays the same
d. reduces SWL
decreases
Never incline the legs of a double basket hitch more than?
a. 50*
B. 20*
C. 70*
d. 60*
d. 60*
Traction grade wire rope has a breaking load of __________ tons per square inch
a. 110-190
b. 50-60
c. 45-90
