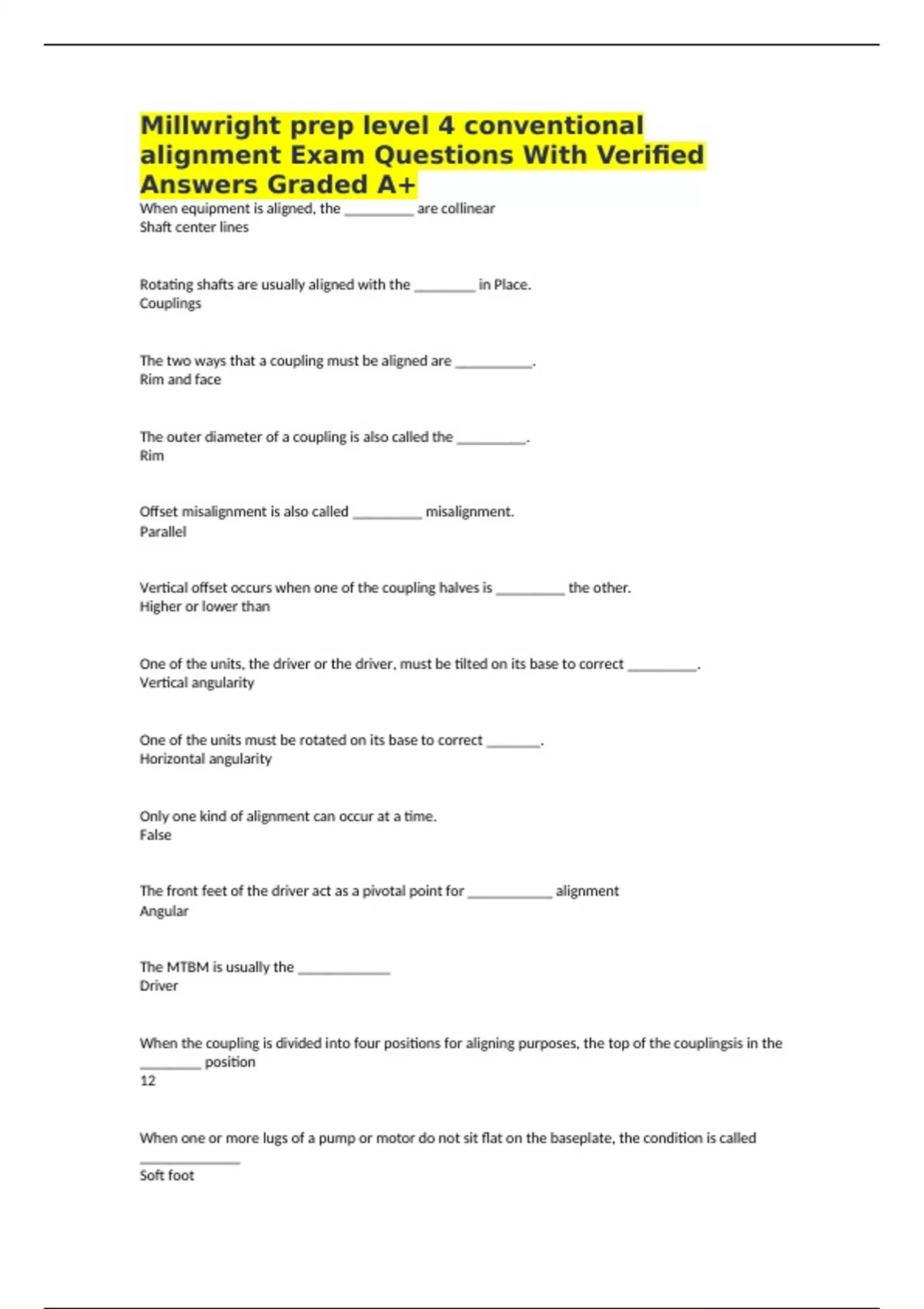

Millwright prep level 4 conventional
alignment Exam Questions With Verified
Answers Graded A+
When equipment is aligned, the _________ are collinear
Shaft center lines
Rotating shafts are usually aligned with the ________ in Place.
Couplings
The two ways that a coupling must be aligned are __________.
Rim and face
The outer diameter of a coupling is also called the _________.
Rim
Offset misalignment is also called _________ misalignment.
Parallel
Vertical offset occurs when one of the coupling halves is _________ the other.
Higher or lower than
One of the units, the driver or the driver, must be tilted on its base to correct _________.
Vertical angularity
One of the units must be rotated on its base to correct _______.
Horizontal angularity
Only one kind of alignment can occur at a time.
False
The front feet of the driver act as a pivotal point for ___________ alignment
Angular
The MTBM is usually the ____________
Driver
When the coupling is divided into four positions for aligning purposes, the top of the couplingsis in the
________ position
12
When one or more lugs of a pump or motor do not sit flat on the baseplate, the condition is called
_____________
Soft foot
