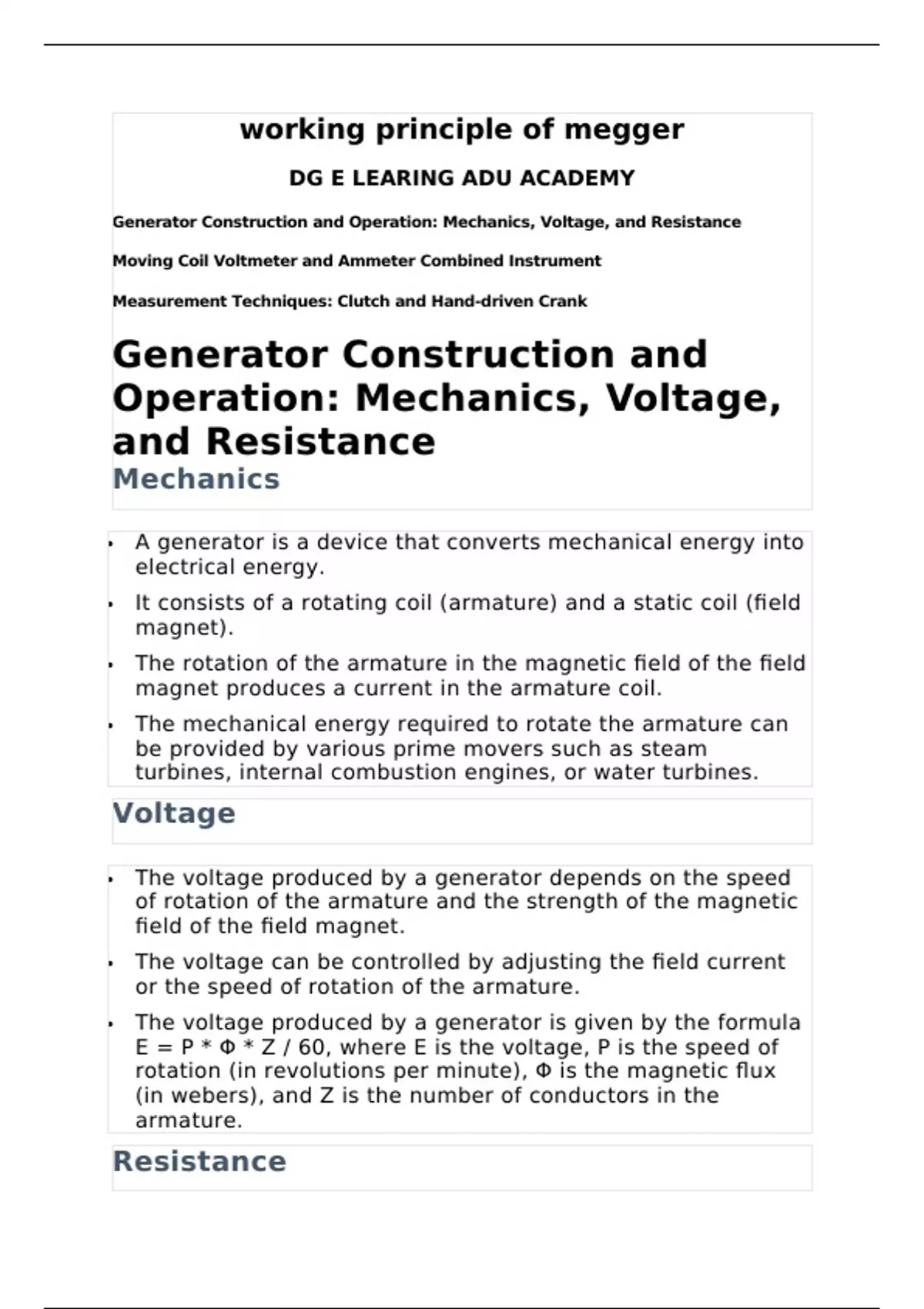

working principle of megger
DG E LEARING ADU ACADEMY
Generator Construction and Operation: Mechanics, Voltage, and Resistance
Moving Coil Voltmeter and Ammeter Combined Instrument
Measurement Techniques: Clutch and Hand-driven Crank
Generator Construction and
Operation: Mechanics, Voltage,
and Resistance
Mechanics
A generator is a device that converts mechanical energy into
electrical energy.
It consists of a rotating coil (armature) and a static coil (field
magnet).
The rotation of the armature in the magnetic field of the field
magnet produces a current in the armature coil.
The mechanical energy required to rotate the armature can
be provided by various prime movers such as steam
turbines, internal combustion engines, or water turbines.
Voltage
The voltage produced by a generator depends on the speed
of rotation of the armature and the strength of the magnetic
field of the field magnet.
The voltage can be controlled by adjusting the field current
or the speed of rotation of the armature.
The voltage produced by a generator is given by the formula
E = P * Φ * Z / 60, where E is the voltage, P is the speed of
rotation (in revolutions per minute), Φ is the magnetic flux
(in webers), and Z is the number of conductors in the
armature.
Resistance
, The resistance of the armature circuit plays an important
role in the operation of a generator.
The resistance affects the current produced by the generator
and the power output.
The resistance can be adjusted by changing the number of
conductors in the armature or by using a rheostat.
The resistance should be kept as low as possible to ensure
efficient operation of the generator.
Moving Coil Voltmeter and Ammeter
Combined Instrument
A moving coil voltmeter and ammeter combined instrument
is used to measure the voltage and current in a circuit.
The instrument consists of two separate moving coil meters
mounted on a common spindle.
The voltmeter is connected in parallel with the circuit and
measures the voltage.
The ammeter is connected in series with the circuit and
measures the current.
The instrument is calibrated to read directly in volts and
amperes.
Measurement Techniques: Clutch and
Hand-driven Crank
The mechanical energy required to rotate the armature of a
generator can be provided by a clutch and hand-driven
crank.
The clutch is used to connect and disconnect the prime
mover from the generator.
The hand-driven crank is used to rotate the armature
manually.
This technique is useful for small generators used for
emergency power or for educational purposes.
