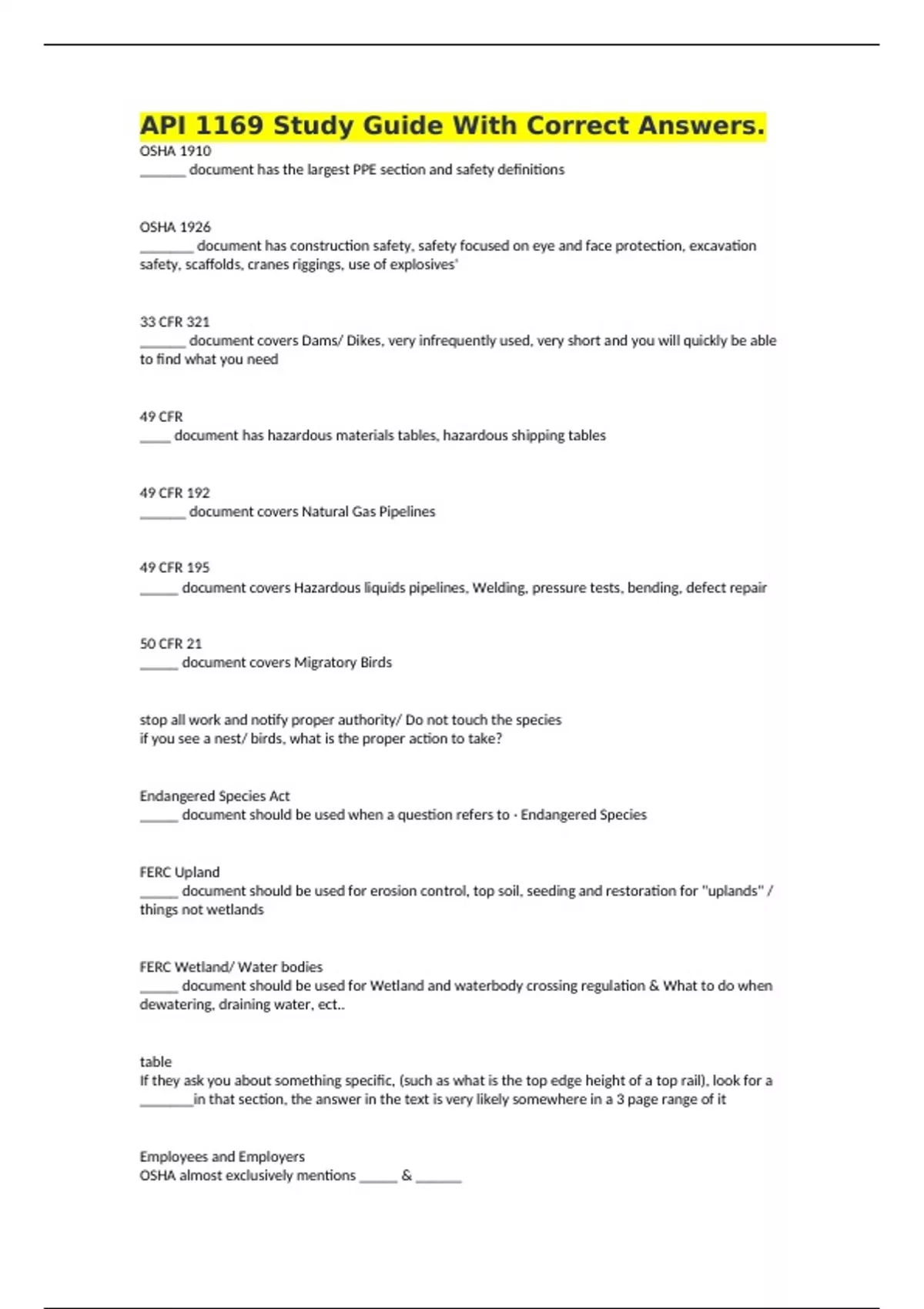

API 1169 Study Guide With Correct Answers.
OSHA 1910
______ document has the largest PPE section and safety definitions
OSHA 1926
_______ document has construction safety, safety focused on eye and face protection, excavation
safety, scaffolds, cranes riggings, use of explosives'
33 CFR 321
______ document covers Dams/ Dikes, very infrequently used, very short and you will quickly be able
to find what you need
49 CFR
____ document has hazardous materials tables, hazardous shipping tables
49 CFR 192
______ document covers Natural Gas Pipelines
49 CFR 195
_____ document covers Hazardous liquids pipelines, Welding, pressure tests, bending, defect repair
50 CFR 21
_____ document covers Migratory Birds
stop all work and notify proper authority/ Do not touch the species
if you see a nest/ birds, what is the proper action to take?
Endangered Species Act
_____ document should be used when a question refers to · Endangered Species
FERC Upland
_____ document should be used for erosion control, top soil, seeding and restoration for "uplands" /
things not wetlands
FERC Wetland/ Water bodies
_____ document should be used for Wetland and waterbody crossing regulation & What to do when
dewatering, draining water, ect..
table
If they ask you about something specific, (such as what is the top edge height of a top rail), look for a
_______in that section, the answer in the text is very likely somewhere in a 3 page range of it
Employees and Employers
OSHA almost exclusively mentions _____ & ______
,Survey right of way -> (Land clearing -> erosion Control Installation) -> Right of way leveling-> pipeline
work-> backfill-> restoration
what is the order of the procedure of pipeline construction?
If we are w/in 50ft of a populated place/ gathering place/ dwelling, CFR 195.210 says you must add
____inches of additional cover
two (2)
in stationing there is ALWAYS how many digits after the "+" sign ?
143+52, 0+10
Make the following into station makers: 14352 ft, 10ft
3ft, 1000ft
make the following from station markers into regular feet: 0+03, 10+00
white
what color is proposed excavation?
temp survey markers/ right of way boundaries
what does pink colored markings represent?
electric power, cables, conduit, lighting cables, cathodic protection
what does red colored markings represent?
Gas, Oil, Steam, Petroleum or Gaseous Materials
what does yellow colored markings represent?
communications, alarm or signal lines
what does orange colored markings represent?
potable water
what color does blue markings represent?
reclaimed water, irrigation & slurry lines
what color does purple markings represent?
sewer and drainage lines
what color does green markings represent?
mark up of how the project was built was different from the IFC drawing
what are "red line drawings"?
, Management change process
Red line drawings are an example of ___?
width of facility (pipe) + 18" on either side on
what is the tolerance zone
48" (12" pipe +18" +18")
what would the tolerance zone be for a 12" pipe?
line list
Access on the road from here to here, Don't use my driveway, Don't cut down this tree, Special land
owner agreements, are all example of items on the _______
state, federal, local regulation, personal specification
whatever is on the line list overrides ________
the inspectors
it is __________'s responsibility to collect all calibration records for any and all equipment that needs
to be calibrated,
you must mark the centerline of the proposed crossing with a Cross Lath (a cross) with company
specific color and facility size
·When you are crossing an existing utility, what must you mark?
heavily vegetated
Ensure flagging is placed more heavily in _____ areas
specified intervals, bends, more
Stakes shall be placed at a _________ along pipe ditches, except along _____, where the stakes shall
be placed ____frequently
contour changes
Ensure_______are captured by survey when you're Horizontally directionally drilled
spoils, soils
when clearing and grading, the _____ should be separated from the ______
ground disturbance
Topsoil removal is considered ____________
the movement of vehicles, live stock, ect
Topsoil shall be staged to allow for ____________
OSHA 1910
______ document has the largest PPE section and safety definitions
OSHA 1926
_______ document has construction safety, safety focused on eye and face protection, excavation
safety, scaffolds, cranes riggings, use of explosives'
33 CFR 321
______ document covers Dams/ Dikes, very infrequently used, very short and you will quickly be able
to find what you need
49 CFR
____ document has hazardous materials tables, hazardous shipping tables
49 CFR 192
______ document covers Natural Gas Pipelines
49 CFR 195
_____ document covers Hazardous liquids pipelines, Welding, pressure tests, bending, defect repair
50 CFR 21
_____ document covers Migratory Birds
stop all work and notify proper authority/ Do not touch the species
if you see a nest/ birds, what is the proper action to take?
Endangered Species Act
_____ document should be used when a question refers to · Endangered Species
FERC Upland
_____ document should be used for erosion control, top soil, seeding and restoration for "uplands" /
things not wetlands
FERC Wetland/ Water bodies
_____ document should be used for Wetland and waterbody crossing regulation & What to do when
dewatering, draining water, ect..
table
If they ask you about something specific, (such as what is the top edge height of a top rail), look for a
_______in that section, the answer in the text is very likely somewhere in a 3 page range of it
Employees and Employers
OSHA almost exclusively mentions _____ & ______
,Survey right of way -> (Land clearing -> erosion Control Installation) -> Right of way leveling-> pipeline
work-> backfill-> restoration
what is the order of the procedure of pipeline construction?
If we are w/in 50ft of a populated place/ gathering place/ dwelling, CFR 195.210 says you must add
____inches of additional cover
two (2)
in stationing there is ALWAYS how many digits after the "+" sign ?
143+52, 0+10
Make the following into station makers: 14352 ft, 10ft
3ft, 1000ft
make the following from station markers into regular feet: 0+03, 10+00
white
what color is proposed excavation?
temp survey markers/ right of way boundaries
what does pink colored markings represent?
electric power, cables, conduit, lighting cables, cathodic protection
what does red colored markings represent?
Gas, Oil, Steam, Petroleum or Gaseous Materials
what does yellow colored markings represent?
communications, alarm or signal lines
what does orange colored markings represent?
potable water
what color does blue markings represent?
reclaimed water, irrigation & slurry lines
what color does purple markings represent?
sewer and drainage lines
what color does green markings represent?
mark up of how the project was built was different from the IFC drawing
what are "red line drawings"?
, Management change process
Red line drawings are an example of ___?
width of facility (pipe) + 18" on either side on
what is the tolerance zone
48" (12" pipe +18" +18")
what would the tolerance zone be for a 12" pipe?
line list
Access on the road from here to here, Don't use my driveway, Don't cut down this tree, Special land
owner agreements, are all example of items on the _______
state, federal, local regulation, personal specification
whatever is on the line list overrides ________
the inspectors
it is __________'s responsibility to collect all calibration records for any and all equipment that needs
to be calibrated,
you must mark the centerline of the proposed crossing with a Cross Lath (a cross) with company
specific color and facility size
·When you are crossing an existing utility, what must you mark?
heavily vegetated
Ensure flagging is placed more heavily in _____ areas
specified intervals, bends, more
Stakes shall be placed at a _________ along pipe ditches, except along _____, where the stakes shall
be placed ____frequently
contour changes
Ensure_______are captured by survey when you're Horizontally directionally drilled
spoils, soils
when clearing and grading, the _____ should be separated from the ______
ground disturbance
Topsoil removal is considered ____________
the movement of vehicles, live stock, ect
Topsoil shall be staged to allow for ____________
