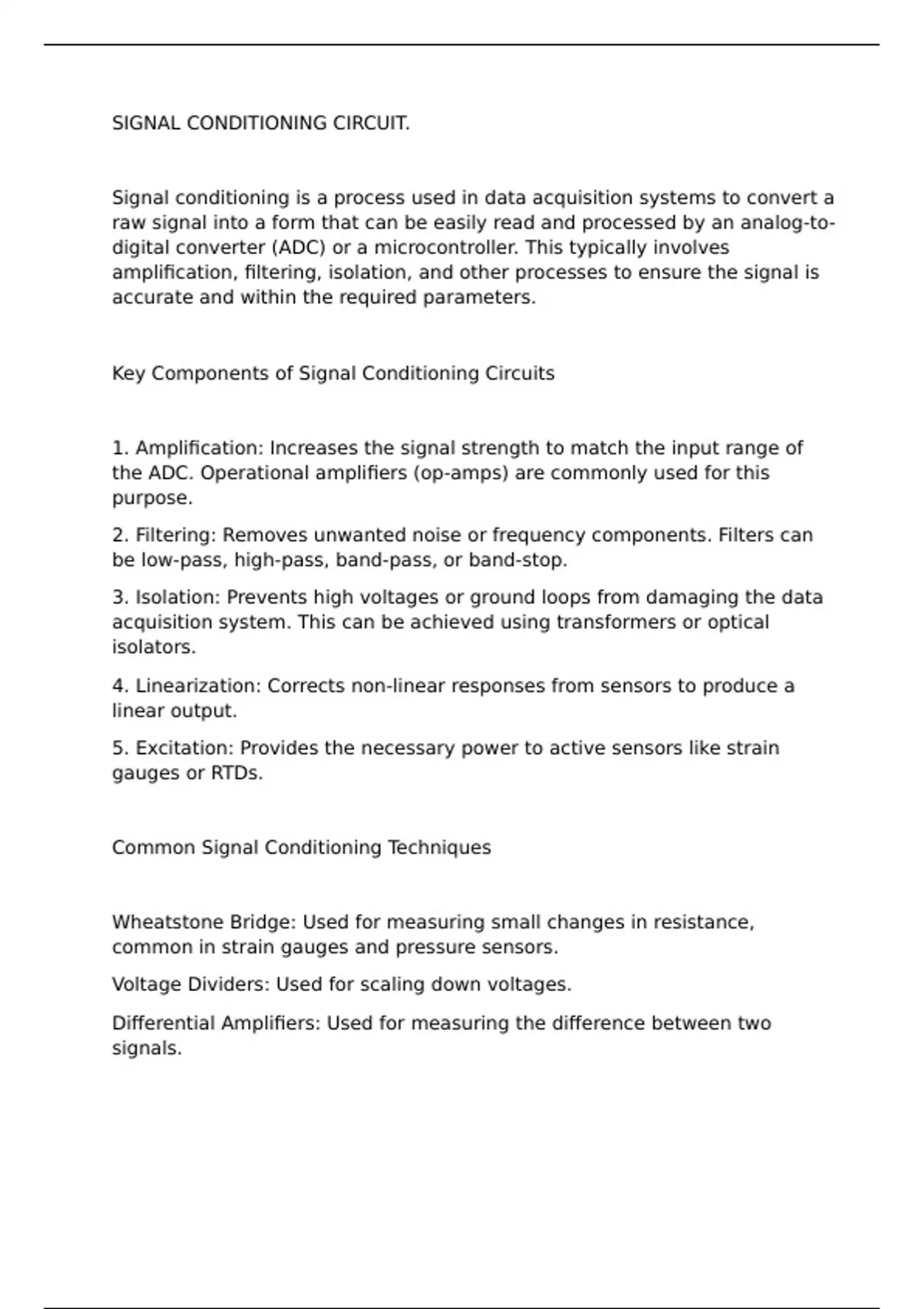

SIGNAL CONDITIONING CIRCUIT.
Signal conditioning is a process used in data acquisition systems to convert a
raw signal into a form that can be easily read and processed by an analog-to-
digital converter (ADC) or a microcontroller. This typically involves
amplification, filtering, isolation, and other processes to ensure the signal is
accurate and within the required parameters.
Key Components of Signal Conditioning Circuits
1. Amplification: Increases the signal strength to match the input range of
the ADC. Operational amplifiers (op-amps) are commonly used for this
purpose.
2. Filtering: Removes unwanted noise or frequency components. Filters can
be low-pass, high-pass, band-pass, or band-stop.
3. Isolation: Prevents high voltages or ground loops from damaging the data
acquisition system. This can be achieved using transformers or optical
isolators.
4. Linearization: Corrects non-linear responses from sensors to produce a
linear output.
5. Excitation: Provides the necessary power to active sensors like strain
gauges or RTDs.
Common Signal Conditioning Techniques
Wheatstone Bridge: Used for measuring small changes in resistance,
common in strain gauges and pressure sensors.
Voltage Dividers: Used for scaling down voltages.
Differential Amplifiers: Used for measuring the difference between two
signals.
, - Sample-and-Hold Circuits: Capture and hold a signal value for a period,
useful for ADCs.
Example: Signal Conditioning Circuit Diagram
Here is a basic example of a signal conditioning circuit:
Diagram
```
[Sensor] [Amplifier] [Filter] [ADC]
```
Description
1. Sensor: This could be a thermocouple, RTD, strain gauge, etc., which
produces a raw signal.
2. Amplifier (Op-Amp): This stage amplifies the small signal from the sensor
to a suitable level for the ADC. A common configuration is the non-inverting
amplifier.
3. Filter: A low-pass filter is often used to remove high-frequency noise. This
can be a simple RC (resistor-capacitor) filter.
4. Analog-to-Digital Converter (ADC): Converts the conditioned analog signal
into a digital form that can be processed by a microcontroller or computer.
Example Circuit
Consider a temperature sensor circuit using a thermocouple:
