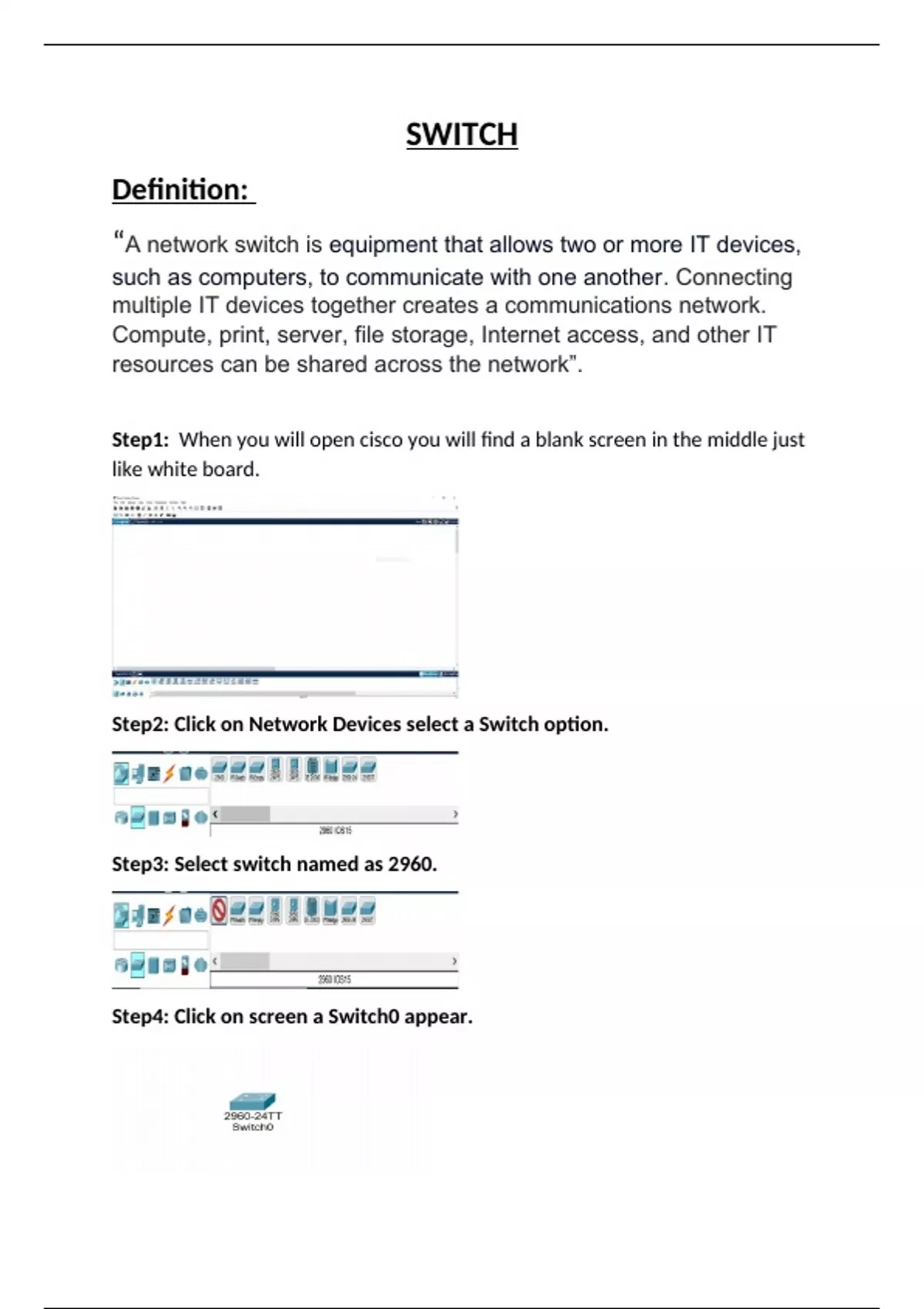

SWITCH
Definition:
“A network switch is equipment that allows two or more IT devices,
such as computers, to communicate with one another. Connecting
multiple IT devices together creates a communications network.
Compute, print, server, file storage, Internet access, and other IT
resources can be shared across the network”.
Step1: When you will open cisco you will find a blank screen in the middle just
like white board.
Step2: Click on Network Devices select a Switch option.
Step3: Select switch named as 2960.
Step4: Click on screen a Switch0 appear.
, Step5: Click on End Devices, you will find several devices.
Step6: Select PC from the given devices.
Step7: Click on screen a PC appear named as PC0.
Step8: Select PC three more times and click on the screen. So in total we got
4 PC’S named as PC0, PC1, PC2, PC3.
Step9: Click on connection, you will find several options.
Step10: From the given option select Copper Straight-Through wire.
