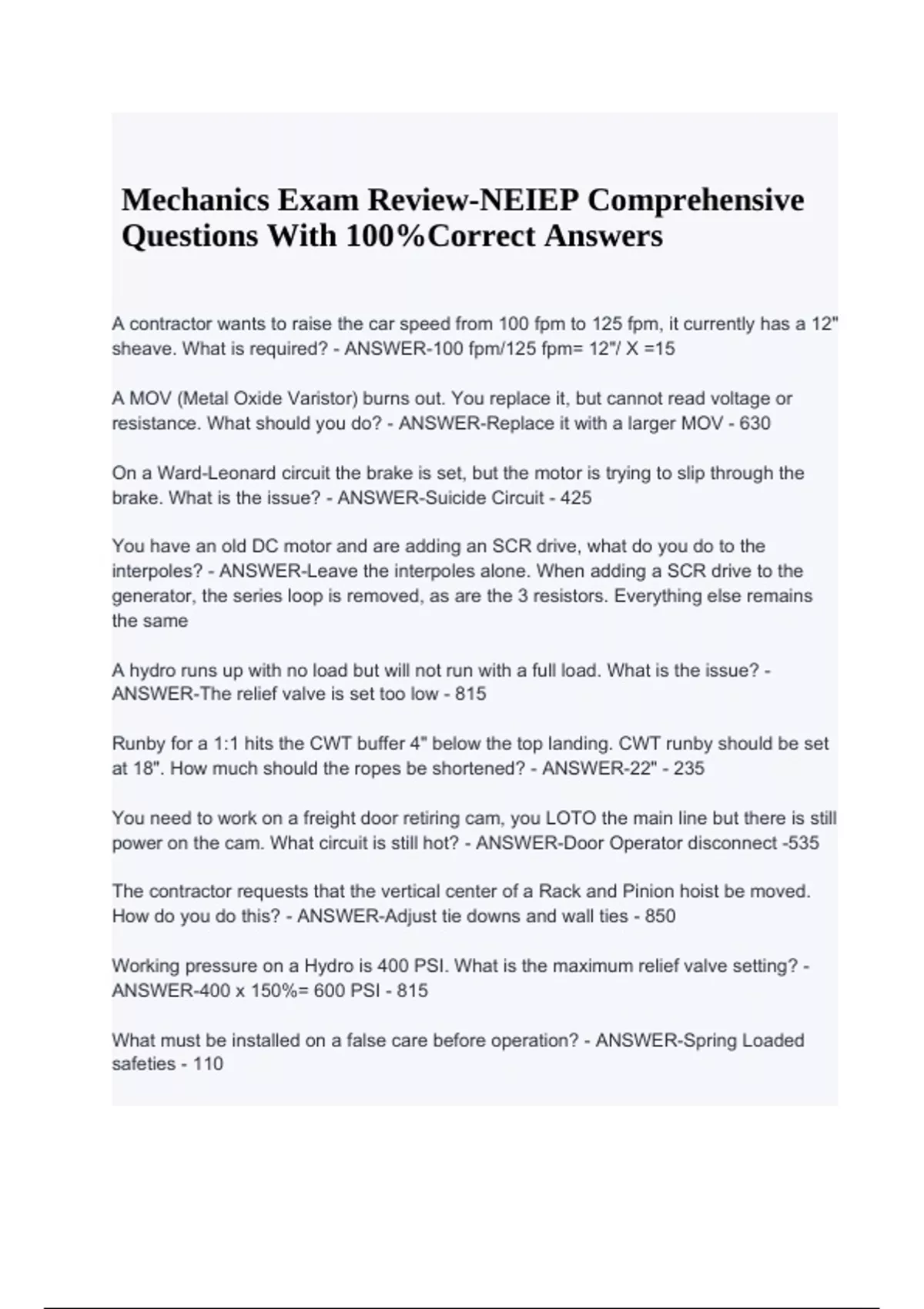

Mechanics Exam Review-NEIEP Comprehensive Questions With 100%Correct Answers.

Mechanics Exam Review-NEIEP Comprehensive Questions With 100%Correct Answers. A contractor wants to raise the car speed from 100 fpm to 125 fpm, it currently has a 12" sheave. What is required? - ANSWER-100 fpm/125 fpm= 12"/ X =15 A MOV (Metal Oxide Varistor) burns out. You replace it, but cannot read voltage or resistance. What should you do? - ANSWER-Replace it with a larger MOV - 630 On a Ward-Leonard circuit the brake is set, but the motor is trying to slip through the brake. What is the issue? - ANSWER-Suicide Circuit - 425 You have an old DC motor and are adding an SCR drive, what do you do to the interpoles? - ANSWER-Leave the interpoles alone. When adding a SCR drive to the generator, the series loop is removed, as are the 3 resistors. Everything else remains the same A hydro runs up with no load but will not run with a full load. What is the issue? - ANSWER-The relief valve is set too low - 815 Runby for a 1:1 hits the CWT buffer 4" below the top landing. CWT runby should be set at 18". How much should the ropes be shortened? - ANSWER-22" - 235 You need to work on a freight door retiring cam, you LOTO the main line but there is still power on the cam. What circuit is still hot? - ANSWER-Door Operator disconnect -535 The contractor requests that the vertical center of a Rack and Pinion hoist be moved. How do you do this? - ANSWER-Adjust tie downs and wall ties - 850 Working pressure on a Hydro is 400 PSI. What is the maximum relief valve setting? - ANSWER-400 x 150%= 600 PSI - 815 What must be installed on a false care before operation? - ANSWER-Spring Loaded safeties - 110 Mechanics Exam Review-NEIEP Comprehensive Questions With 100%Correct Answers There is slight arcing between the brush and commutator. What action must be taken? - ANSWER-None Note: Heavy arcing= light brush pressure, Heavy brush pressure= mechanical wear If rigging is roped 3:1 and a BEAM CLAMP is used to lift a 6,000lb load. What is the beam capacity? - ANSWER-18,000lbs -210 How much resistance is measured over a normally closed switch? - ANSWER-.2 Ohmsshould be zero but will never be that low A car traveling in the hoistway always stops at the same spot and blows a fuse. What causes this? - ANSWER-traveling cable has a cut/exposed wire or a short - 515 How is a class 1 yearly buffer test preformed? - ANSWER-Car at the bottom landing and on inspection, jump out direction and final limits. With pit clear, run down to compress the buffers, buffers should fully extend within 90 seconds. Note: 5 yr is Full load, full speed - 555 How many strain supports are required on a 350 ft raceway? - ANSWER-4 1 every 100ft - 505-510 How is stainless steel drilled out? - ANSWER-Slow speed and constant pressure - 205 What is the required amout of retainer clips for wedge shackles and what is the spacing? - ANSWER-At least 2. First clip being 4 times the diameter of the rope from the top of the shackle, and the second clip is 8 times the diameter of the rope away from the shackle. - 245 A 300 ohm resistor burns out, but you dont have another one. How can you make one? - ANSWER-2- 600 ohms resistors in parallel is 300 ohms. Resistance is half of the highest resistor in the parallel circuit. 3- 225 ohms is 75 ohms. - 345 When cutting laminated panels, which direction should the finish side face? - ANSWER-Finish side facing the cutting edge of the tool. Blade will burr the backside. - 225 How do you cut a finished floor? - ANSWER-Cutting blade away from the finished side - 255 A 480 VAC stepdown 240 VAC transformer is connected to a 3 phase rectifier, what is the output voltage? - ANSWER-320 VAC 3 phase full wave= 1.33 x output voltage. - 715 A car is loaded with 125% and sinks, why? - ANSWER-Slipping through the brake IF you find a broken or missing barricade what should you do? - ANSWER-Write up a formal inspection request What are the consequences of misaligned joints on a rack and pinion? - ANSWER-Broken gear teeth. CWT derailment. Excessive wear/crease the surface of the tube. - 850 A dumbwaiter is 9 sqft in area, 4 ft in height, and capacity is 13.9lb/ft. What is the total capacity? - ANSWER-9 X 4 x 13.9= 500lbs Max Capacity You must enter a pit with a toxic atmosphere, how do you proceed? - ANSWER-Follow proper OSHA procedure with proper training and PPE - 133 When changing a 1:1 car rated at 600fpm and 2,000lb capacity to a 2:1, what are the new ratings? - ANSWER-300 fpm with 4000lbs capacity. Half the speed and double the capacity. A vertical platform lift has a clearance of 1 inch. How much will it have to move to meet code? - ANSWER-Move in 1/4 inch. Code is 3/4 in A car weighs 2500lbs with a capacity of 2500lbs, The CWT is weighted 40% , how much is the motor lifting when the car is fully loaded? - ANSWER-2500 (CAR) + 1000 ( 40%)= 3500lbs = 1500lbs lifted by the machine - 240.
