 2.⁠ ⁠Define pinch off Voltage.  3.⁠ ⁠Why is FET Voltage controlled and BJT current Controlled?  4.⁠ ⁠What are the difference between BJT and FET?  5.⁠ ⁠State Slew rate with equation.  6.⁠ ⁠Define CMRR  7.⁠ ⁠List out the ideal characteristics of OP-AMP.  8.⁠ ⁠How does OP-AMP worked as an integrator?  9.⁠ ⁠Compare open loop and closed loop gain of the circuits. 10.⁠ ⁠Define Clipper. 11.⁠ ⁠Why a peak detector is also called the envelope detector? 12.⁠ ⁠Mention various applications of computer. 13.⁠ ⁠Mention the applications of 555 timer. 14.⁠ ⁠What is sample period? 15.⁠ ⁠What is an analog multiplier? 16.⁠ ⁠Draw the general block diagram of PLL. 17.⁠ ⁠List the limitations of IC-723 Regulators. 18.⁠ ⁠What are the four main parts of voltage regulators? 19.⁠ ⁠What is meant by switching regulator? 20.⁠ ⁠What is the purpose of connecting a capacitor at the input and output side of an IC voltage regulator?

Show more Read less
Institution
Rajlakshmi Engineering College
Course
RO21160

Content preview

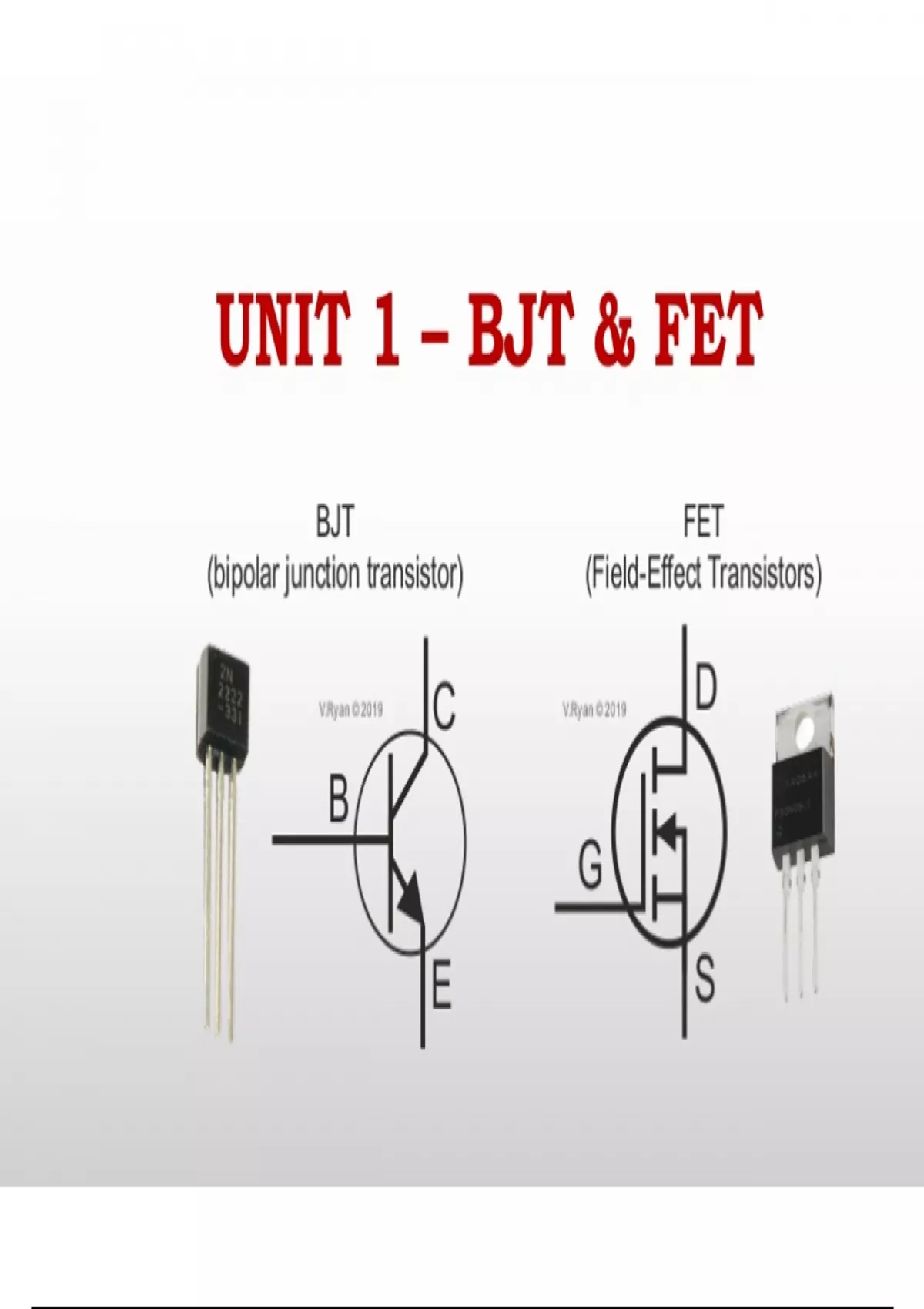

UNIT 1 – BJT & FET

, Bipolar Junction Transistor

• Three terminal semiconductor device.
• Operation depends on interaction of both majority and minority carrie
• Analogous to vacuum triode and smaller in size.


• USES
• Amplifier
• Oscillator circuits
• Switch
• APPLICATOINS
• Computers
• Satellite
• Modern Communication Systems
