CAD NOCTI State Exam Final Questions and Answers

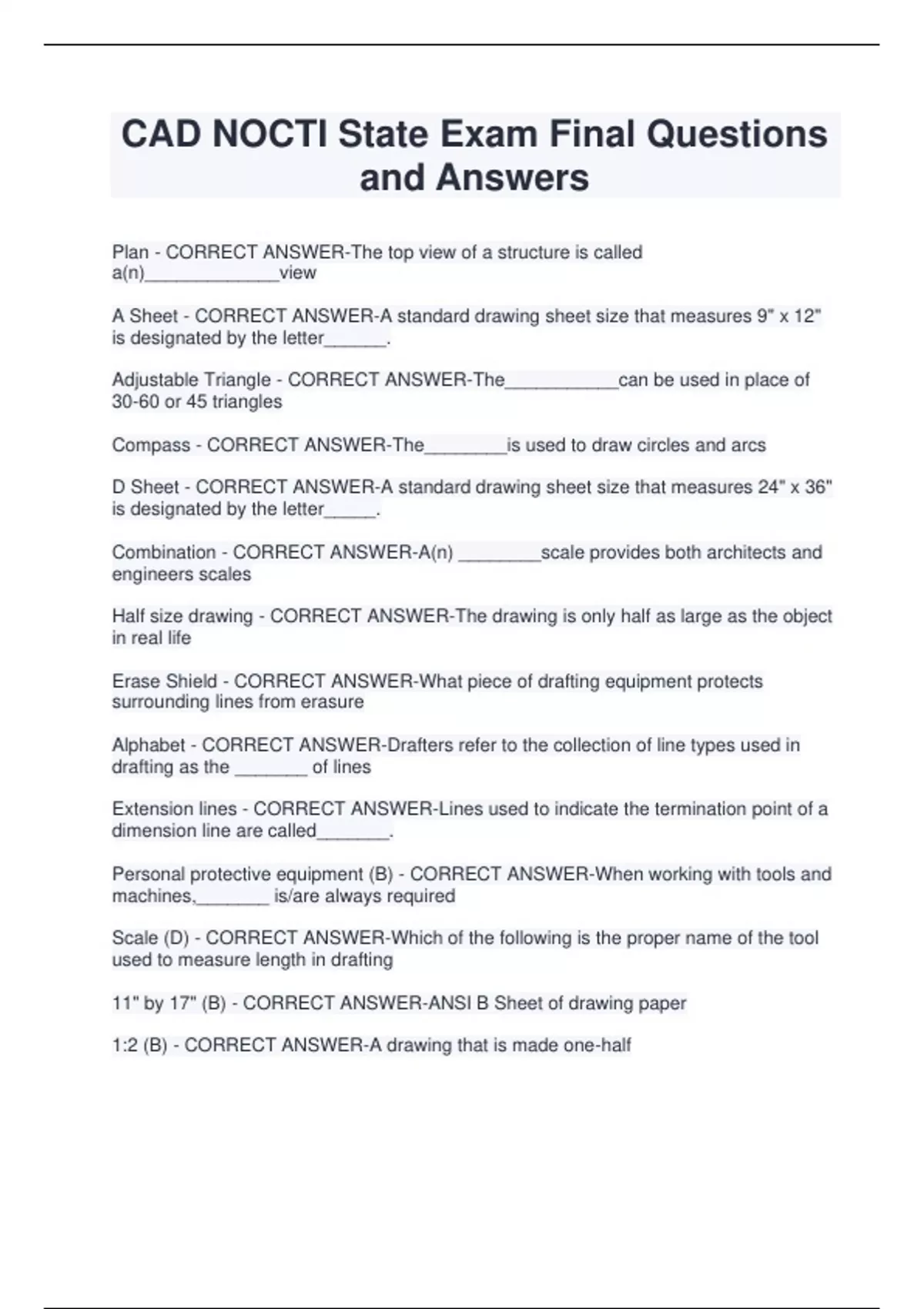

CAD NOCTI State Exam Final Questions and Answers Plan - CORRECT ANSWER-The top view of a structure is called a(n)_____________view A Sheet - CORRECT ANSWER-A standard drawing sheet size that measures 9" x 12" is designated by the letter______. Adjustable Triangle - CORRECT ANSWER-The___________can be used in place of 30-60 or 45 triangles Compass - CORRECT ANSWER-The________is used to draw circles and arcs D Sheet - CORRECT ANSWER-A standard drawing sheet size that measures 24" x 36" is designated by the letter_____. Combination - CORRECT ANSWER-A(n) ________scale provides both architects and engineers scales Half size drawing - CORRECT ANSWER-The drawing is only half as large as the object in real life Erase Shield - CORRECT ANSWER-What piece of drafting equipment protects surrounding lines from erasure Alphabet - CORRECT ANSWER-Drafters refer to the collection of line types used in drafting as the _______ of lines Extension lines - CORRECT ANSWER-Lines used to indicate the termination point of a dimension line are called_______. Personal protective equipment (B) - CORRECT ANSWER-When working with tools and machines,_______ is/are always required Scale (D) - CORRECT ANSWER-Which of the following is the proper name of the tool used to measure length in drafting 11" by 17" (B) - CORRECT ANSWER-ANSI B Sheet of drawing paper 1:2 (B) - CORRECT ANSWER-A drawing that is made one-half
