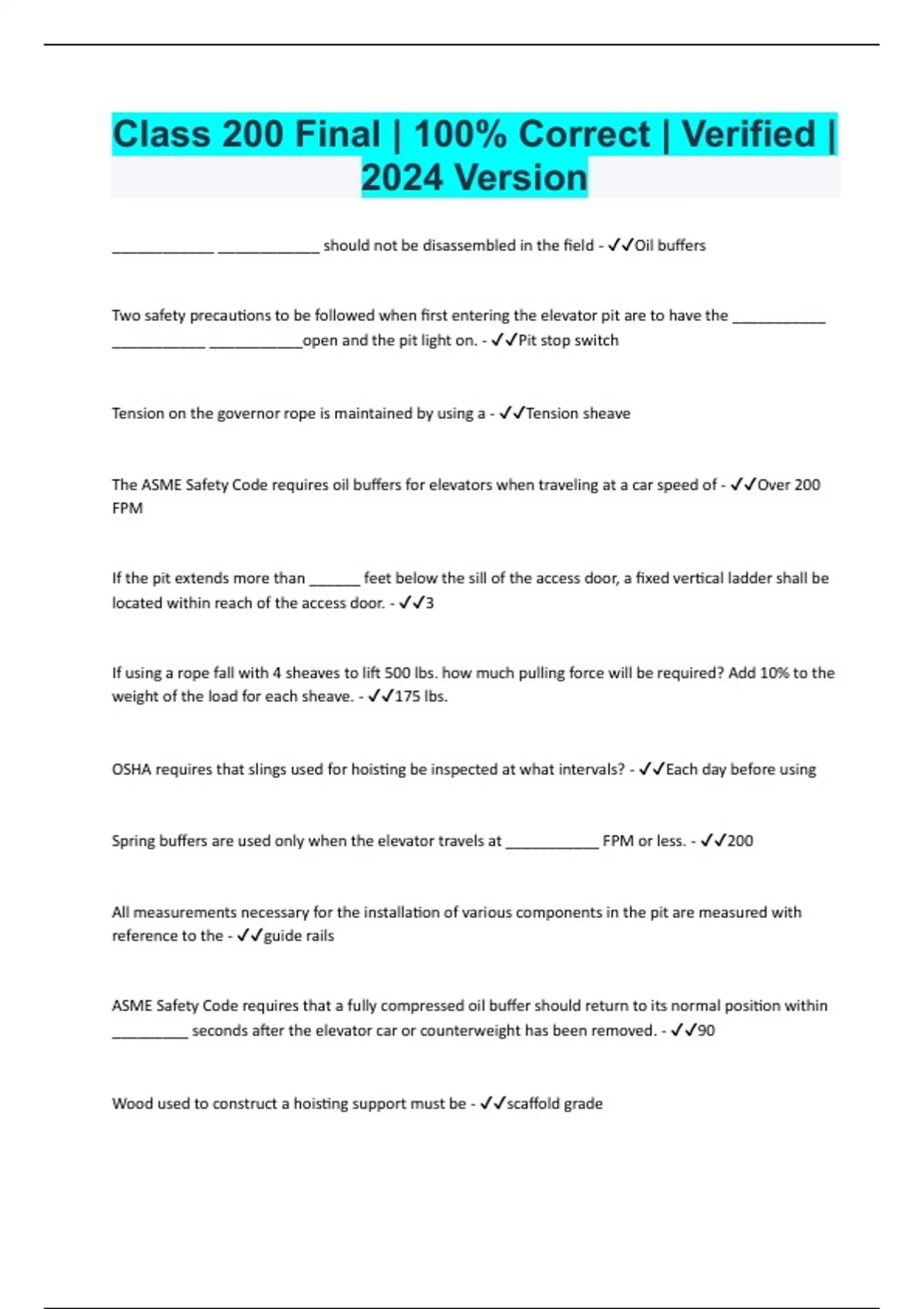

Class 200 Final | 100% Correct | Verified |
2024 Version
____________ ____________ should not be disassembled in the field - ✔✔Oil buffers
Two safety precautions to be followed when first entering the elevator pit are to have the ___________
___________ ___________open and the pit light on. - ✔✔Pit stop switch
Tension on the governor rope is maintained by using a - ✔✔Tension sheave
The ASME Safety Code requires oil buffers for elevators when traveling at a car speed of - ✔✔Over 200
FPM
If the pit extends more than ______ feet below the sill of the access door, a fixed vertical ladder shall be
located within reach of the access door. - ✔✔3
If using a rope fall with 4 sheaves to lift 500 lbs. how much pulling force will be required? Add 10% to the
weight of the load for each sheave. - ✔✔175 lbs.
OSHA requires that slings used for hoisting be inspected at what intervals? - ✔✔Each day before using
Spring buffers are used only when the elevator travels at ___________ FPM or less. - ✔✔200
All measurements necessary for the installation of various components in the pit are measured with
reference to the - ✔✔guide rails
ASME Safety Code requires that a fully compressed oil buffer should return to its normal position within
_________ seconds after the elevator car or counterweight has been removed. - ✔✔90
Wood used to construct a hoisting support must be - ✔✔scaffold grade
, What is a sign of poor quality manila rope? - ✔✔Dark colored fibers
(True/False) All synthetics are impervious to sunlight. - ✔✔False
(True/False) Good quality manila rope has a light yellow color with a silvery or pearly luster. - ✔✔True
What is the minimum number and proper spacing of crosby clips for rope diameters from 1/2 to 3/4. -
✔✔3 crosby clips 6 times the rope diameter apart
The cutting force is applied on the (forward/return) stroke when using a hacksaw. - ✔✔forward
What type of lumber must be used for decking on scaffolding? - ✔✔Scaffold grade
Glass must be either ____________ or ____________ to hold the glass together if broken. -
✔✔Laminated, Bonded
What is the required height of an OSHA approved barricade? - ✔✔42"
(True/False) The star symbol is used on the COP to designate the main floor. - ✔✔True
The distance between the ladder feet and the wall the top is leaning against should be ___________ of
the height of the ladder. - ✔✔1/4
Generally, what type of rail guides are used on freight elevators? - ✔✔Solid guide shoes
(True/False)A double insulated tool is an electrical tool having twice the required insulation. - ✔✔True
