Engineering Mechanics_Analysis of Forces

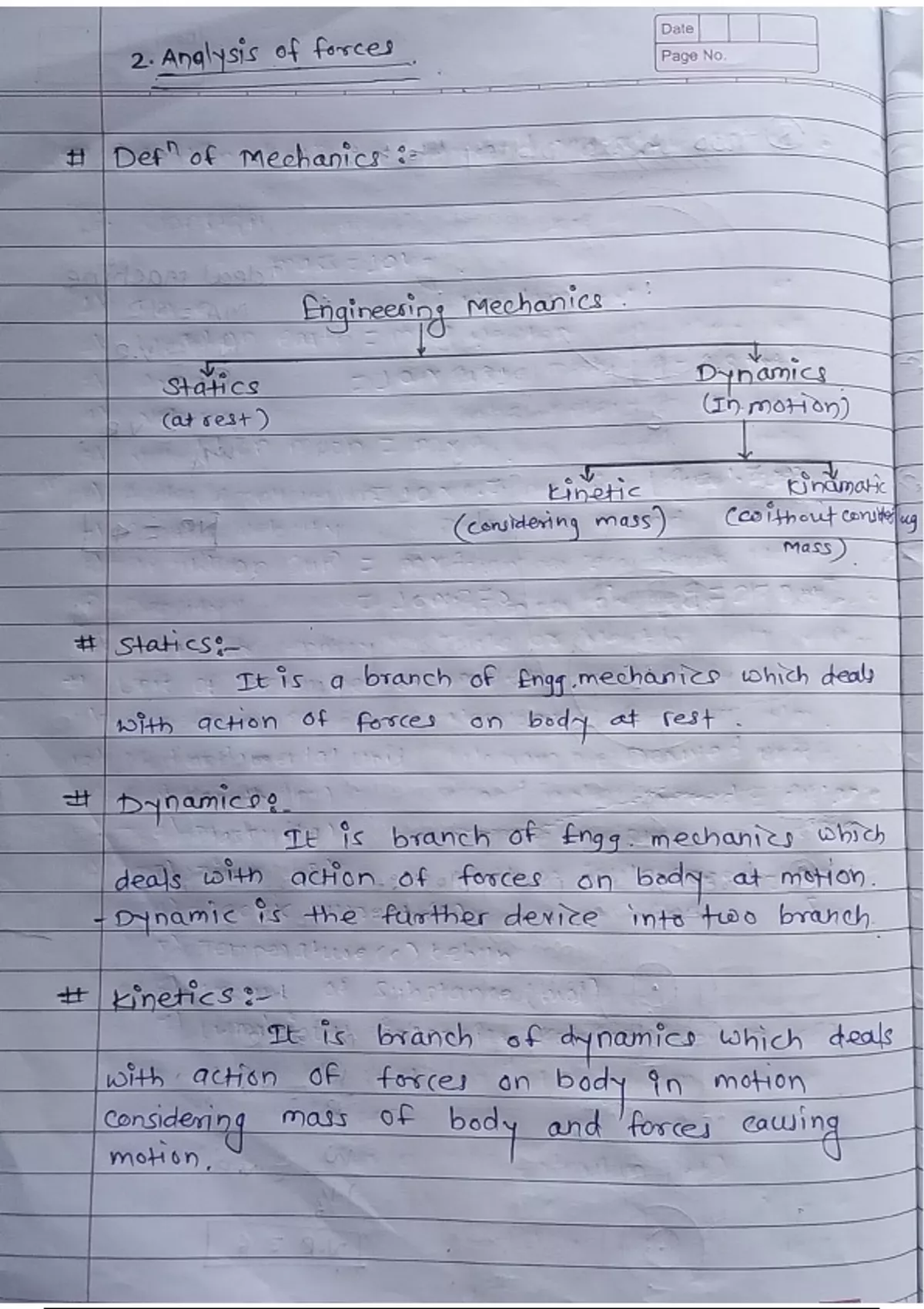

Engineering mechanics involves the study of forces and their effects on bodies. It can be broadly divided into two categories: statics and dynamics. Statics deals with bodies at rest or in equilibrium, where the sum of forces and moments acting on the body is zero. Dynamics involves bodies in motion and is further divided into kinematics (study of motion without considering forces) and kinetics (study of motion considering forces). ### Analysis of Forces in Engineering Mechanics 1. **Force**: A vector quantity characterized by magnitude, direction, and point of application. Forces can be contact forces (e.g., friction, tension) or body forces (e.g., gravitational, magnetic). 2. **Resultant Force**: The single force that has the same effect as a combination of forces acting on a body. It can be found by vector addition of all individual forces. 3. **Equilibrium of Forces**: For a body to be in equilibrium: - The sum of all horizontal forces must be zero: ( sum F_x = 0 ) - The sum of all vertical forces must be zero: ( sum F_y = 0 ) - The sum of all moments about any point must be zero: ( sum M = 0 ) 4. **Free Body Diagram (FBD)**: A crucial tool in mechanics, representing a body isolated from its surroundings, showing all the forces and moments acting on it. 5. **Types of Forces**: - **Normal Force**: Perpendicular contact force exerted by a surface on an object. - **Frictional Force**: Opposes relative motion between surfaces in contact. - **Tension Force**: Force transmitted through a string, rope, or cable when pulled tight by forces acting at each end. - **Applied Force**: External force applied
