CONVERSION OF NFA TO DFA

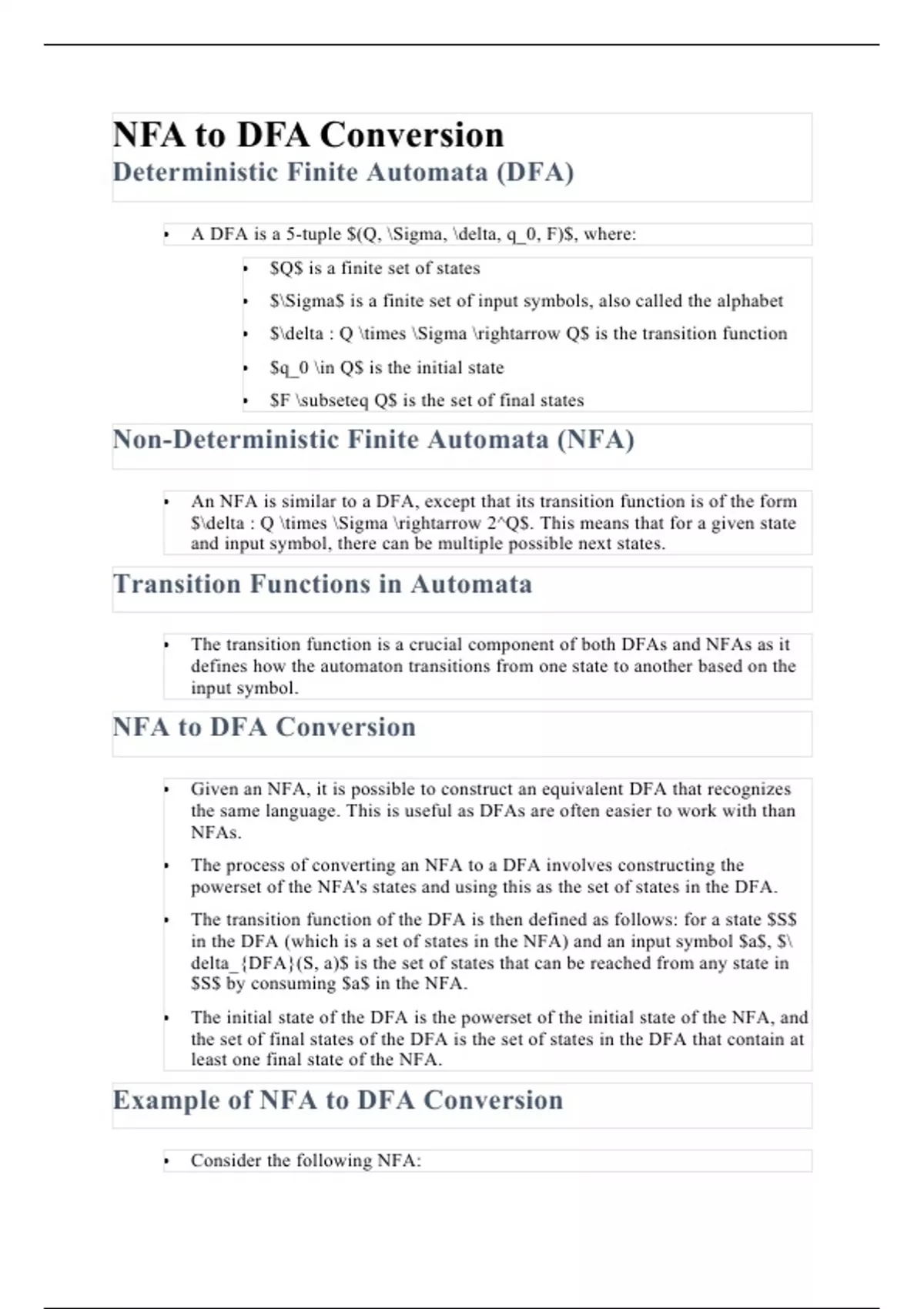

NFA to DFA Conversion
Deterministic Finite Automata (DFA)

 A DFA is a 5-tuple $(Q, \Sigma, \delta, q_0, F)$, where:
 $Q$ is a finite set of states
 $\Sigma$ is a finite set of input symbols, also called the alphabet
 $\delta : Q \times \Sigma \rightarrow Q$ is the transition function
 $q_0 \in Q$ is the initial state
 $F \subseteq Q$ is the set of final states

Non-Deterministic Finite Automata (NFA)

 An NFA is similar to a DFA, except that its transition function is of the form
$\delta : Q \times \Sigma \rightarrow 2^Q$. This means that for a given state
and input symbol, there can be multiple possible next states.

Transition Functions in Automata

 The transition function is a crucial component of both DFAs and NFAs as it
defines how the automaton transitions from one state to another based on the
input symbol.

NFA to DFA Conversion

 Given an NFA, it is possible to construct an equivalent DFA that recognizes
the same language. This is useful as DFAs are often easier to work with than
NFAs.
 The process of converting an NFA to a DFA involves constructing the
powerset of the NFA's states and using this as the set of states in the DFA.
 The transition function of the DFA is then defined as follows: for a state $S$
in the DFA (which is a set of states in the NFA) and an input symbol $a$, $\
delta_{DFA}(S, a)$ is the set of states that can be reached from any state in
$S$ by consuming $a$ in the NFA.
 The initial state of the DFA is the powerset of the initial state of the NFA, and
the set of final states of the DFA is the set of states in the DFA that contain at
least one final state of the NFA.

Example of NFA to DFA Conversion

 Consider the following NFA:

,  $Q = {q_0, q_1, q_2}$
 $\Sigma = {0, 1}$
 $\delta(q_0, 0) = {q_0}$, $\delta(q_0, 1) = {q_1}$
 $\delta(q_1, 0) = \varnothing$, $\delta(q_1, 1) = {q_2}$
 $\delta(q_2, 0) = {q_2}$, $\delta(q_2, 1) = \varnothing$
 $q_0$ is the initial state, and $F = {q_2}$ is the set of final states.
 The powerset of $Q$ is:
 ${{q_0}, {q_1}, {q_2}, {q_0, q_1}, {q_0, q_2}, {q_1, q_2}, {q_0,
q_1, q_2}}$
 The transition function of the DFA is:
 $\delta({q_0}, 0) = {{q_0}}$, $\delta({q_0}, 1) = {{q_1}}$
 $\delta({q_1}, 0) = \varnothing$, $\delta({q_1}, 1) = {{q_2}}$
 $\delta({q_2}, 0) = {{q_2}}$, $\delta({q_2}, 1) = \varnothing$
 $\delta({q_0, q_1}, 0) = {{q_0}}$, $\delta({q_0, q_1}, 1) =
{{q_1}}$
 $\delta({q_0, q_2}, 0) = {{q_0, q_2}}$, $\delta({q_0, q_2}, 1) =
{{q_1, q_2}}$
 $\delta({q_1, q_2}, 0) = \varnothing$, $\delta({q_1, q_2}, 1) =
{{q_2}}$
 $\delta({q_0, q_1, q_2}, 0) = {{q_0, q_2}}$, $\delta({q_0, q_1,
q_2}, 1) = {{q_1, q_2}}$
 The initial state of the DFA is ${{q_0}}$, and the set of final states is $
{{q_2}, {q_0, q_2}, {q_1, q_2}, {q_0, q_1, q_2}}$.
