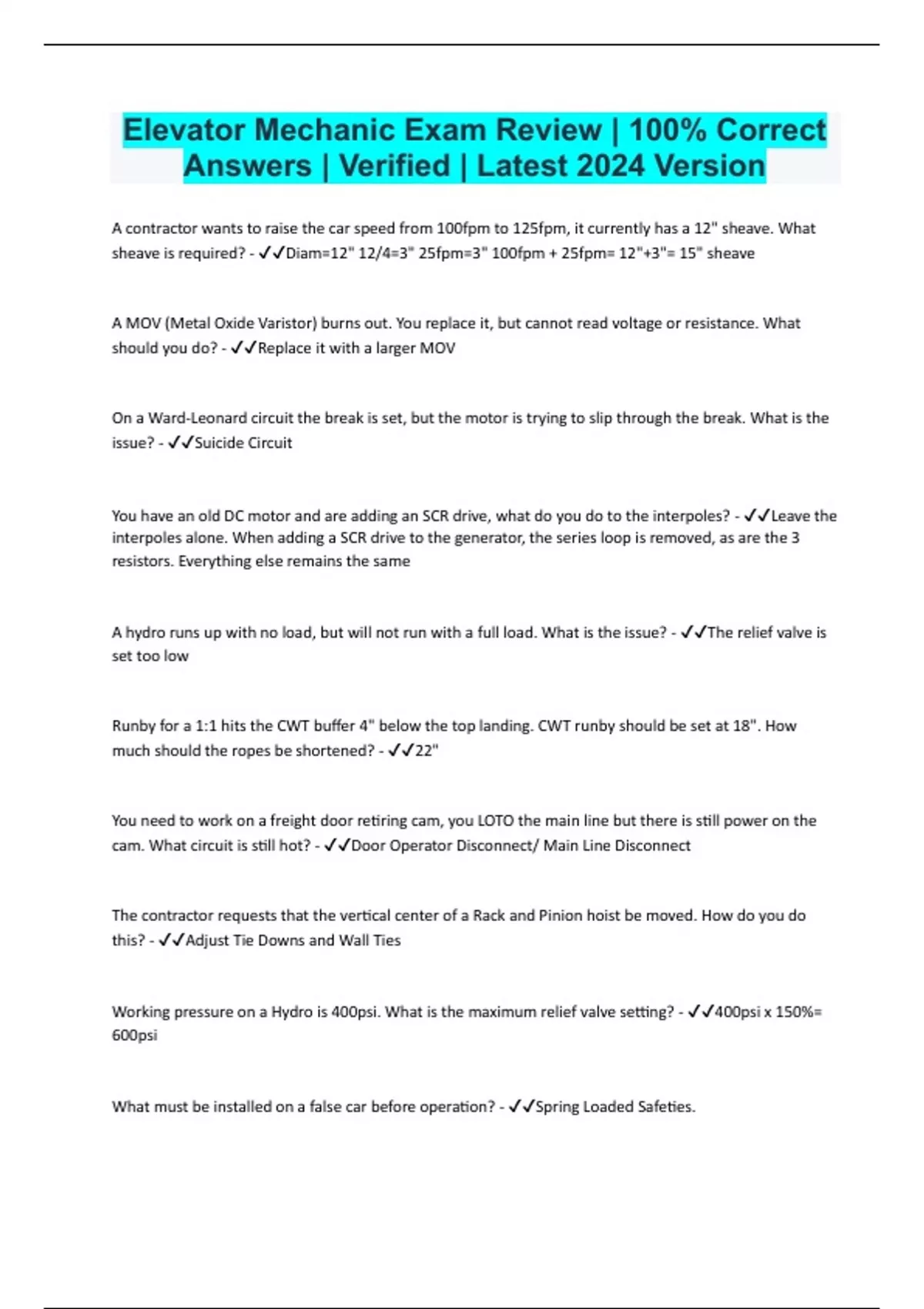

Elevator Mechanic Exam Review | 100% Correct
Answers | Verified | Latest 2024 Version
A contractor wants to raise the car speed from 100fpm to 125fpm, it currently has a 12" sheave. What
sheave is required? - ✔✔Diam=12" 12/4=3" 25fpm=3" 100fpm + 25fpm= 12"+3"= 15" sheave
A MOV (Metal Oxide Varistor) burns out. You replace it, but cannot read voltage or resistance. What
should you do? - ✔✔Replace it with a larger MOV
On a Ward-Leonard circuit the break is set, but the motor is trying to slip through the break. What is the
issue? - ✔✔Suicide Circuit
You have an old DC motor and are adding an SCR drive, what do you do to the interpoles? - ✔✔Leave the
interpoles alone. When adding a SCR drive to the generator, the series loop is removed, as are the 3
resistors. Everything else remains the same
A hydro runs up with no load, but will not run with a full load. What is the issue? - ✔✔The relief valve is
set too low
Runby for a 1:1 hits the CWT buffer 4" below the top landing. CWT runby should be set at 18". How
much should the ropes be shortened? - ✔✔22"
You need to work on a freight door retiring cam, you LOTO the main line but there is still power on the
cam. What circuit is still hot? - ✔✔Door Operator Disconnect/ Main Line Disconnect
The contractor requests that the vertical center of a Rack and Pinion hoist be moved. How do you do
this? - ✔✔Adjust Tie Downs and Wall Ties
Working pressure on a Hydro is 400psi. What is the maximum relief valve setting? - ✔✔400psi x 150%=
600psi
What must be installed on a false car before operation? - ✔✔Spring Loaded Safeties.
,There is slight arcing between the brush and commutator. What action must be taken? - ✔✔None.
Heavy arcing=Light brush pressure. Heavy bush pressure=mechanical wear
If rigging gear is roped 3:1 and a BEAM CLAMP is used to lift a 6,000lb load. What is the beam capacity? -
✔✔18,000lbs. Beam capacity is cut in half with use of clamp, when rigging all blocks, rope, and clamps
will be Equal to the lowest load rating
How much resistance is measured over a normally closed switch? - ✔✔1.2ohms. should be zero, but will
never be that low
A car traveling in the hoistway always stops at the same spot and blows a fuse. What causes this? -
✔✔Traveling cable has a cut/exposed wire or a short
How is a class 1 yearly buffer test preformed? - ✔✔Car at bottom landing and on inspection, jump out
direction and final limits. With pit clear, run down to compress buffers, buffers should fully extend within
90 seconds.
5yr: Full load Full speed
CWT: Full speed Empty
How many strain supports are required on a 350ft raceway? - ✔✔4. 1 every 100ft
How is stainless steel drilled out? - ✔✔Slow speed and constant pressure
What is the required amount of retainer clips for wedge shackles and what is the spacing? -
✔✔Minimum 2 clips. 1st at a maximum 4x the diameter of the rope
2nd at a maximum 8x the diameter above the 1st clip
A 300ohm resistor burns out, but you don't have another one. How can you make one? - ✔✔2 600ohm
resistors in parallel is 300ohms. Resistance is half of highest resistor in parallel circuit.
3 225ohm resistors in parallel is 75ohms.
, When cutting laminated panels, which direction should the finish side face? - ✔✔Finish side facing the
cutting edge of the tool. Blade will burr the backside
How do you cut a finished floor? - ✔✔Cutting blade away from finished side
A 480vac stepdown 240vac transformer is connected to a 3 phase rectifier, what is the output voltage? -
✔✔320vac
3 phase full wave = 1.33x output voltage
A car is loaded with 125% and sinks, why? - ✔✔Slipping through the break
If you find a broken or missing barricade what should you do? - ✔✔Write up a formal inspection request
What are the consequences of misaligned joints on a Rack and Pinion? - ✔✔Broken Gear teeth. CWT
derailment. Excessive wear/ crease the surface of the tube
A dumbwaiter is 9sqft in area, 4ft high, and capacity is 13.9lb/ft3. What is total capacity? - ✔✔9 x 4 x
13.9= 500lbs Max capacity
You must enter a pit with a toxic atmosphere, how do you proceed? - ✔✔Following proper OSHA
procedure with proper training and PPE
When changing a 1:1 car rated at 600fpm and 2,000lb capacity to a 2:1, what are the new ratings? -
✔✔300fpm 4,000lbs capacity
Half the speed, Double the capacity
A vertical platform lift has a clearance of 1 inch. How much will it have to move to meet code? -
✔✔Move in ¼ inch. Code is ¾ inch
