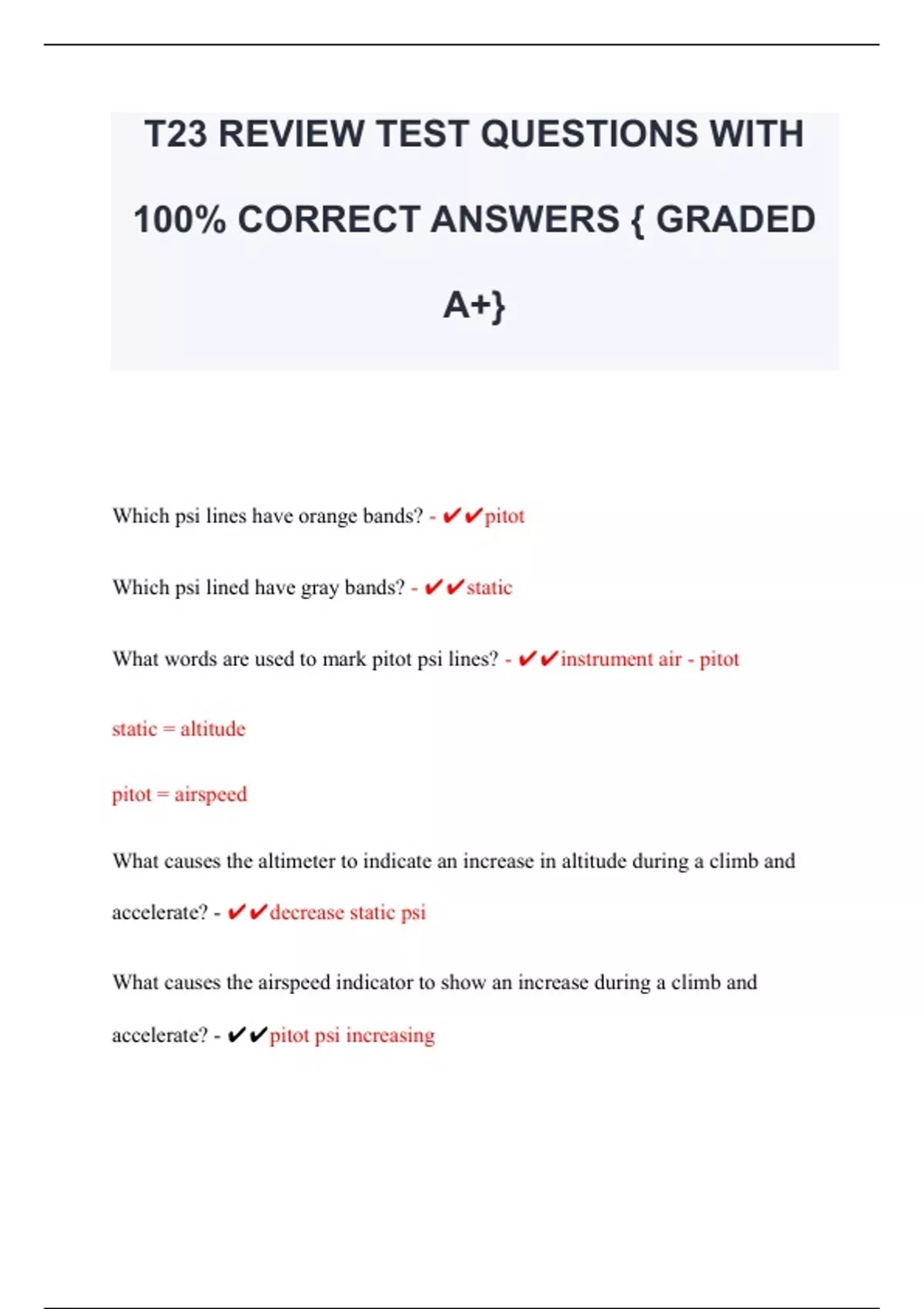

T23 REVIEW TEST QUESTIONS WITH
100% CORRECT ANSWERS { GRADED
A+}
Which psi lines have orange bands? - ✔✔pitot
Which psi lined have gray bands? - ✔✔static
What words are used to mark pitot psi lines? - ✔✔instrument air - pitot
static = altitude
pitot = airspeed
What causes the altimeter to indicate an increase in altitude during a climb and
accelerate? - ✔✔decrease static psi
What causes the airspeed indicator to show an increase during a climb and
accelerate? - ✔✔pitot psi increasing
, It is not necessary to disconnect the instruments or ADC when attempting to clean
or unblock the system using high psi air - ✔✔False
It is safe to connect or disconnect psi lines when using high psi air supplied by the
Air Data Test Set - ✔✔False
What type of fault would show erratic or sluggish indicator observed on one or
more affected indicators? - ✔✔excessive moisture
Which Angle of Attack component measures the true angle of attack by
determining the angular difference between local airflow and fuselage reference
plane? - ✔✔Airstream Direction Detection (ADD) Transmitter
Where is the output of the Airstream Direction Detector (ADD) Transmitter sent? -
✔✔to the amplifier of AOA indicator
The indexer and approach lights are disabled when indexer lights relay is
____________ and the approach lights relay is ___________ - ✔✔energized
de-energized
What is the purpose of the AOA lights transformer? - ✔✔provides 6.2 VAC to the
indicator cam switches for indexer and approach lights operation
