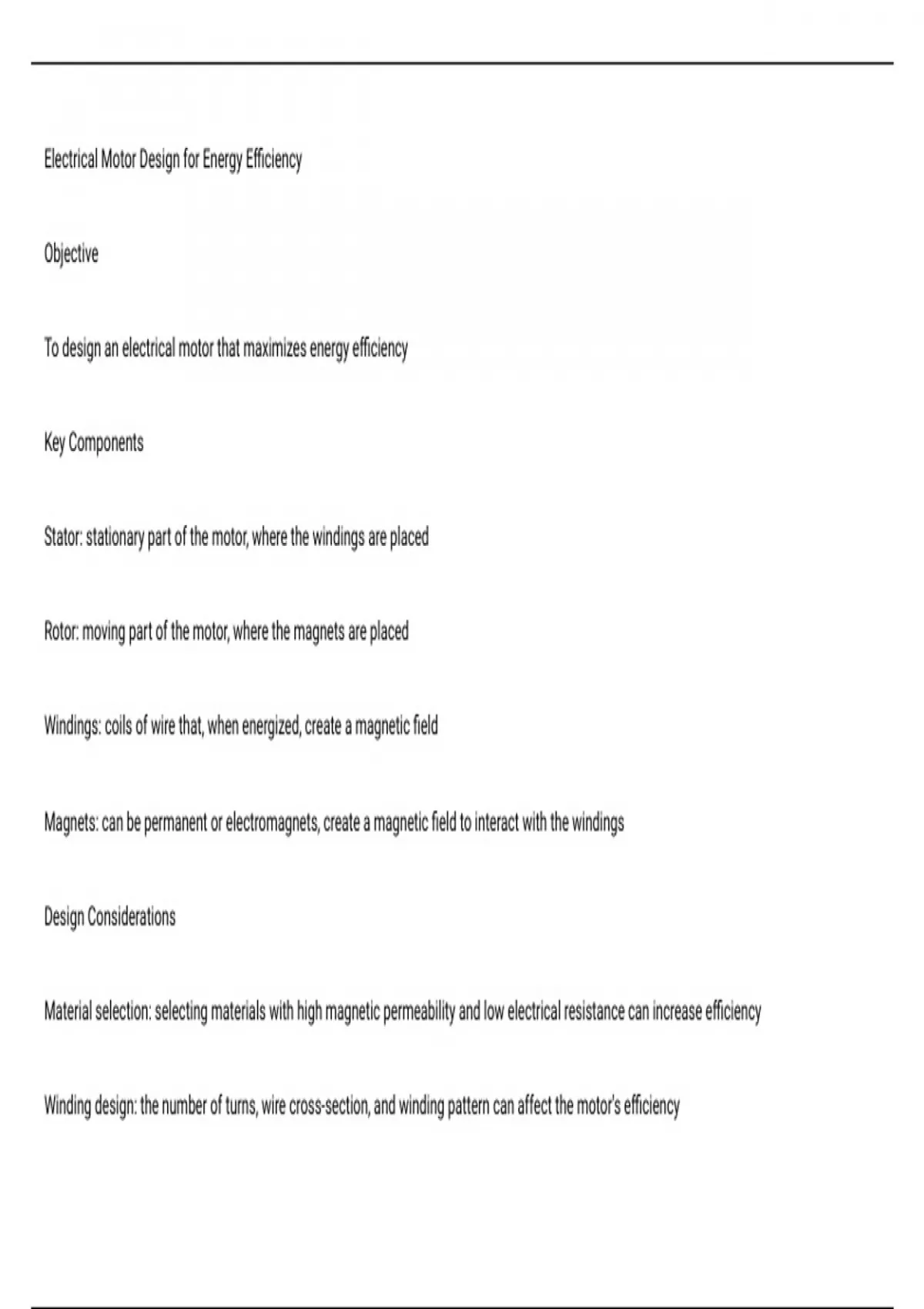

Electrical Motor Design for Energy Efficiency
Objective
To design an electrical motor that maximizes energy efficiency
Key Components
Stator: stationary part of the motor, where the windings are placed
Rotor: moving part of the motor, where the magnets are placed
Windings: coils of wire that, when energized, create a magnetic field
Magnets: can be permanent or electromagnets, create a magnetic field to interact with the windings
Design Considerations
Material selection: selecting materials with high magnetic permeability and low electrical resistance can increase efficiency
Winding design: the number of turns, wire cross-section, and winding pattern can affect the motor's efficiency
