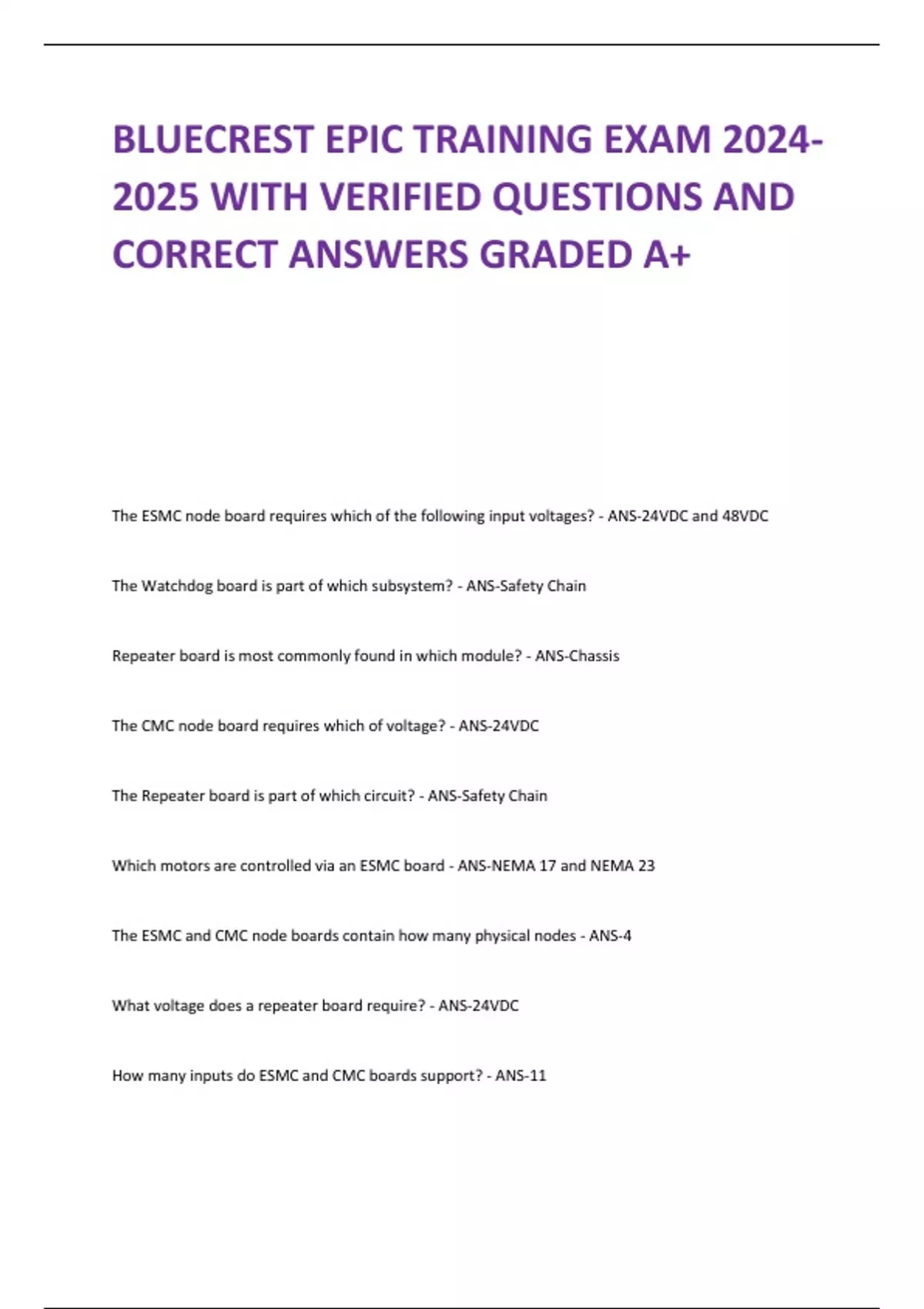

BLUECREST EPIC TRAINING EXAM WITH VERIFIED QUESTIONS AND CORRECT ANSWERS GRADED A+

BLUECREST EPIC TRAINING EXAM 2024- 2025 WITH VERIFIED QUESTIONS AND CORRECT ANSWERS GRADED A+ The ESMC node board requires which of the following input voltages? - ANS-24VDC and 48VDC The Watchdog board is part of which subsystem? - ANS-Safety Chain Repeater board is most commonly found in which module? - ANS-Chassis The CMC node board requires which of voltage? - ANS-24VDC The Repeater board is part of which circuit? - ANS-Safety Chain Which motors are controlled via an ESMC board - ANS-NEMA 17 and NEMA 23 The ESMC and CMC node boards contain how many physical nodes - ANS-4 What voltage does a repeater board require? - ANS-24VDC How many inputs do ESMC and CMC boards support? - ANS-11 How many outputs do ESMC and CMC boards support? - ANS-8 How many E-stop and interlocks do ESMC and CMC boards support - ANS-2 E-stop 3 Interlocks Which motors are controlled with a CMC board? - ANS-Emerson and Baldor Which nodes are supported on ESMC and CMC boards? - ANS-2 servo, 1 analog, 1 I/O What are the correct servo motor connections on an ESMC board? - ANS-2 Hall, 2 Encoder, and 2 Power/Phase What are the correct servo motor connections on a CMC board? - ANS-J2 Amp control and J4 Amp control How many Grounding planes are there on ESMC and CMC boards? - ANS-4 Which of the following diagnostic tools provides real-time histogram of events? - ANS-Health Monitor What is the best diagnostic tool for troubleshooting intermittent photocell flicker? - ANS-Logic analyzer In order to acquire additional information regarding the 4-digit code that is displayed in a DC error message, which tool would you use? - ANS-Faults dialog Which icon/tool would you use in DC to select the Servo Diagnostic tool? - ANS-Node List True or False: The Rocket Port connects to the Chassis RTP - ANS-False What is the purpose for the Health Check button located at the bottom of the Node Card I/O dialog box? - ANS-To test photocells True or False: The inserter uses time-base for tracking and mail pieces - ANS-False The Health Monitor and the Shutdown script uses which type of communications? - ANS-Ethernet Can you use a White LED to replace a Grey LED? - ANS-No What can you use to determine if a photocell is operating properly? - ANS-Flashlight What can you use to determine if the LED is operating properly? - ANS-Phone camera What do you use to troubleshoot a photocell on a Bingo Board? - ANS-Voltmeter and a piece of paper Ture or False: You can use the Serial Diagnostics to troubleshoot scanning - ANS-True What diagnostics tools acan be used to troubleshoot "Over Run" errors? - ANS-Health Monitor, Logic Analyzer In the Logic Analyzer, what do the Vertical Green and Red Lines mean? - ANS-Green is "Machine Start" and Red is "Error" What will the Keyboard Up, Down, Left, and Right arrows do in the Logic Analyzer? - ANS-Zoom in and out and scroll left/right What are the correct voltages of a photocell? - ANS-Greater than 4v Blocked and less than 0.5v unblocked Where can you go in DC to view Photocell voltages - ANS-Node I/O
