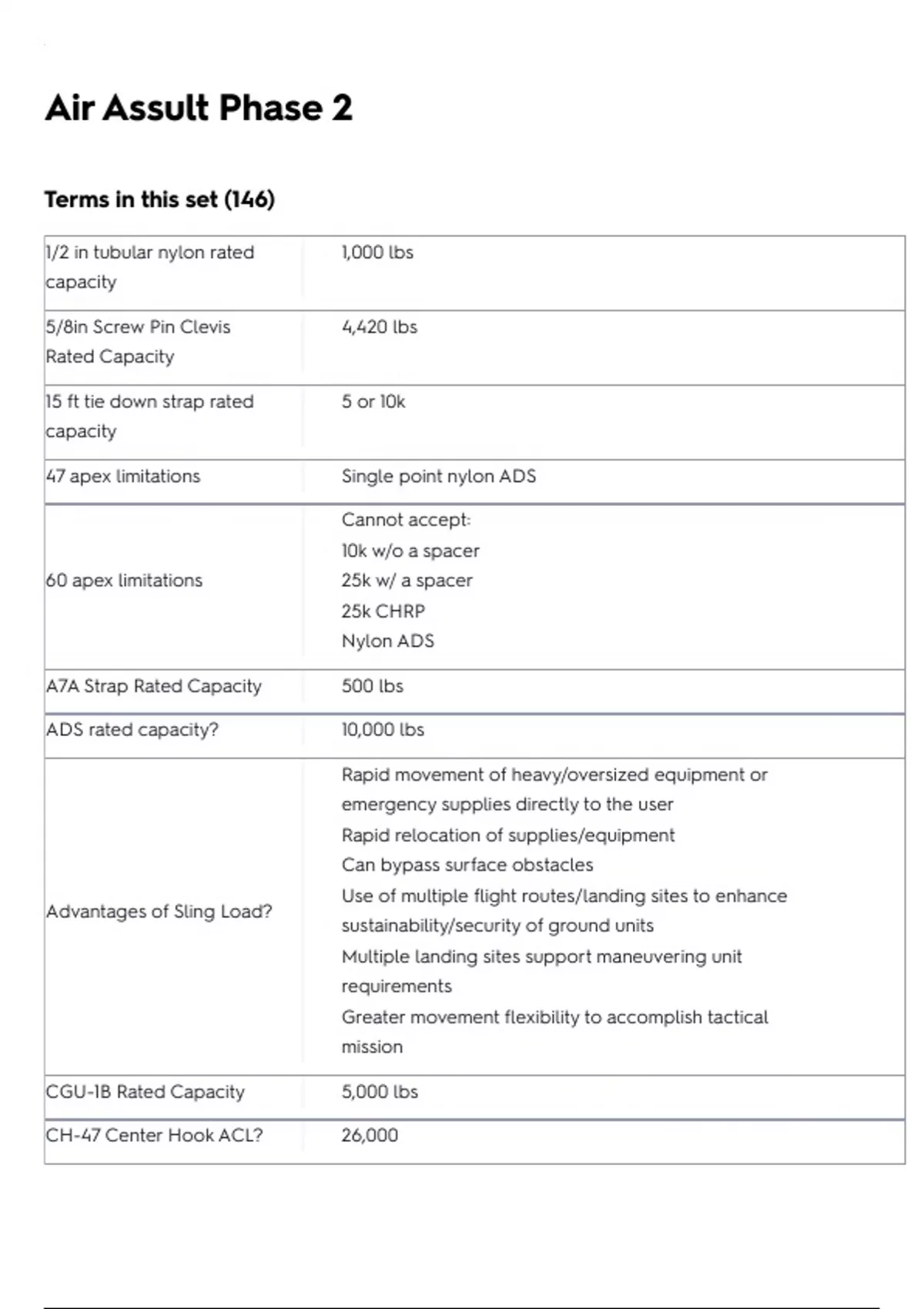

Air Assult Phase 2
Terms in this set (146)
1/2 in tubular nylon rated 1,000 lbs
capacity
5/8in Screw Pin Clevis 4,420 lbs
Rated Capacity
15 ft tie down strap rated 5 or 10k
capacity
47 apex limitations Single point nylon ADS
Cannot accept:
10k w/o a spacer
60 apex limitations 25k w/ a spacer
25k CHRP
Nylon ADS
A7A Strap Rated Capacity 500 lbs
ADS rated capacity? 10,000 lbs
Rapid movement of heavy/oversized equipment or
emergency supplies directly to the user
Rapid relocation of supplies/equipment
Can bypass surface obstacles
Use of multiple flight routes/landing sites to enhance
Advantages of Sling Load?
sustainability/security of ground units
Multiple landing sites support maneuvering unit
requirements
Greater movement flexibility to accomplish tactical
mission
CGU-1B Rated Capacity 5,000 lbs
CH-47 Center Hook ACL? 26,000
, CH-47 front and rear hook 25,000
combined ACL?
CH-47 Front and Rear Hook 17000
individual ACL?
Pilot/crew chief can release hooks electronically
Crew can release all hooks manually from inside
Fore/aft hooks have manual release knob on right side,
CH-47 hook release turned counterclockwise, 13 ft apart
Center hook has no release lever for ground crew.
Manually depress spring loaded keeper and remove
apex
CN you swap the spacers No
on a 10k and 25k sling set?
Components of a Type 4 Base plate, 2 aluminum rollers and 1 locking plate
connector link
2 in tape
Type 3 nylon
Equipment needed for a
1/2 in cotton webbing
5/10k cargo net?
Collar
Net apex fitting
2 in tape
Equipment needed for A-22
Type 3 nylon
cargo net
Medium clevis
2 in tape
Equipment needed for a
Type 3 nylon
M1102 high mobility trailer?
1/4 in cotton webbing
2 in tape
Equipment needed for a
Type 3 nylon
M1151 HMMWV?
1/2 in cotton webbing
How do you affect the Drag Link count
surface in a sling load?
