Metal cutting involves removing material from a workpiece to shape or finish it, using processes like turning, milling, drilling, and grinding. Machine tools, such as lathes, milling machines, and grinders, facilitate these operations, providing precision and control. Metrology in this context ensures accuracy and quality by measuring dimensions, surface finish, and geometric tolerances. Tools like micrometers, calipers, coordinate measuring machines (CMMs), and surface profilometers are employed for this purpose. Together, these disciplines ensure the precise fabrication of components, critical for various engineering applications, from automotive to aerospace industries.

Show more Read less
Institution
IIT BOMBAY
Course
MEC (MEC)

Content preview

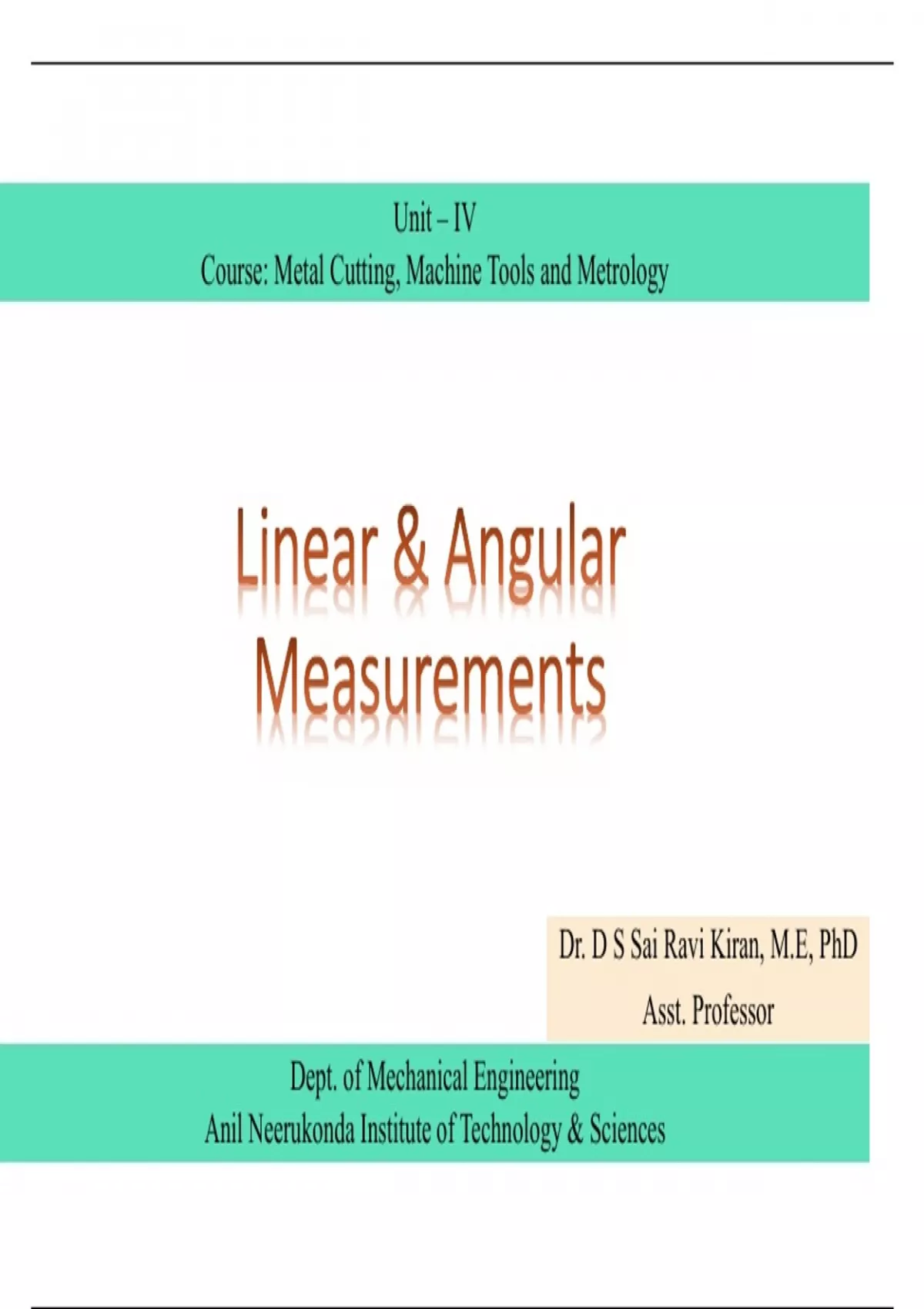

Unit – IV
Course: Metal Cutting, Machine Tools and Metrology




Dr. D S Sai Ravi Kiran, M.E, PhD
Asst. Professor
Dept. of Mechanical Engineering
Anil Neerukonda Institute of Technology & Sciences

,SYLLABUS

,Linear Measurement
• Vernier Instruments
• Vernier Calliper
• Vernier height gauge
• Vernier Depth Gauge

• Micrometer
• Outside Micrometer
• Depth Micrometer Linear measurement applies to measurement of
• Inside Micrometer
lengths, diameters, heights, and thickness
• Dial Indicators

• Slip Gauges including external and internal measurements

, Vernier Calliper
