Pneumatics (Amatrol Quizzes) Latest Update Graded A+

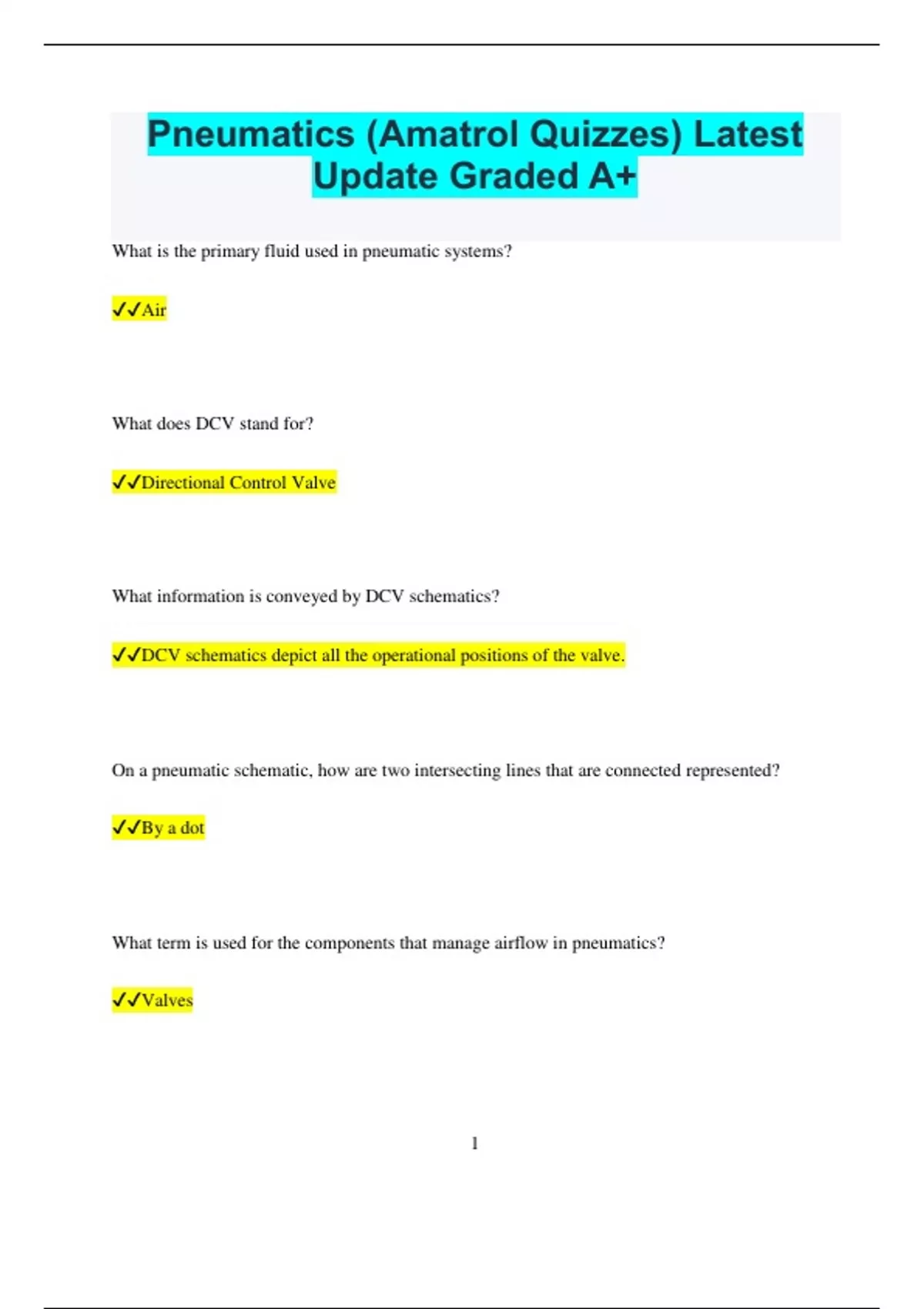

Pneumatics (Amatrol Quizzes) Latest Update Graded A+ What is the primary fluid used in pneumatic systems? Air What does DCV stand for? Directional Control Valve What information is conveyed by DCV schematics? DCV schematics depict all the operational positions of the valve. On a pneumatic schematic, how are two intersecting lines that are connected represented? By a dot What term is used for the components that manage airflow in pneumatics? Valves 2 Why should all pneumatic systems include filters? Because atmospheric air contains dust. How are smaller particles of dirt filtered out of the air in a pneumatic system? By the filter’s element Which fitting connects two branch circuits to a single supply line? Tee What closes the poppet in a pressure regulator? Downstream pressure What is the recommended maximum pressure (psi) for pneumatic safety? 30 psi What does pressure measure in a pneumatic system? Force intensity 3 In a 5-port, 3-position DCV, what keeps the valve in the central position? Springs What factors are used to classify DCVs? Number of ways, number of positions, and type of operator What is the function of a regulator in
