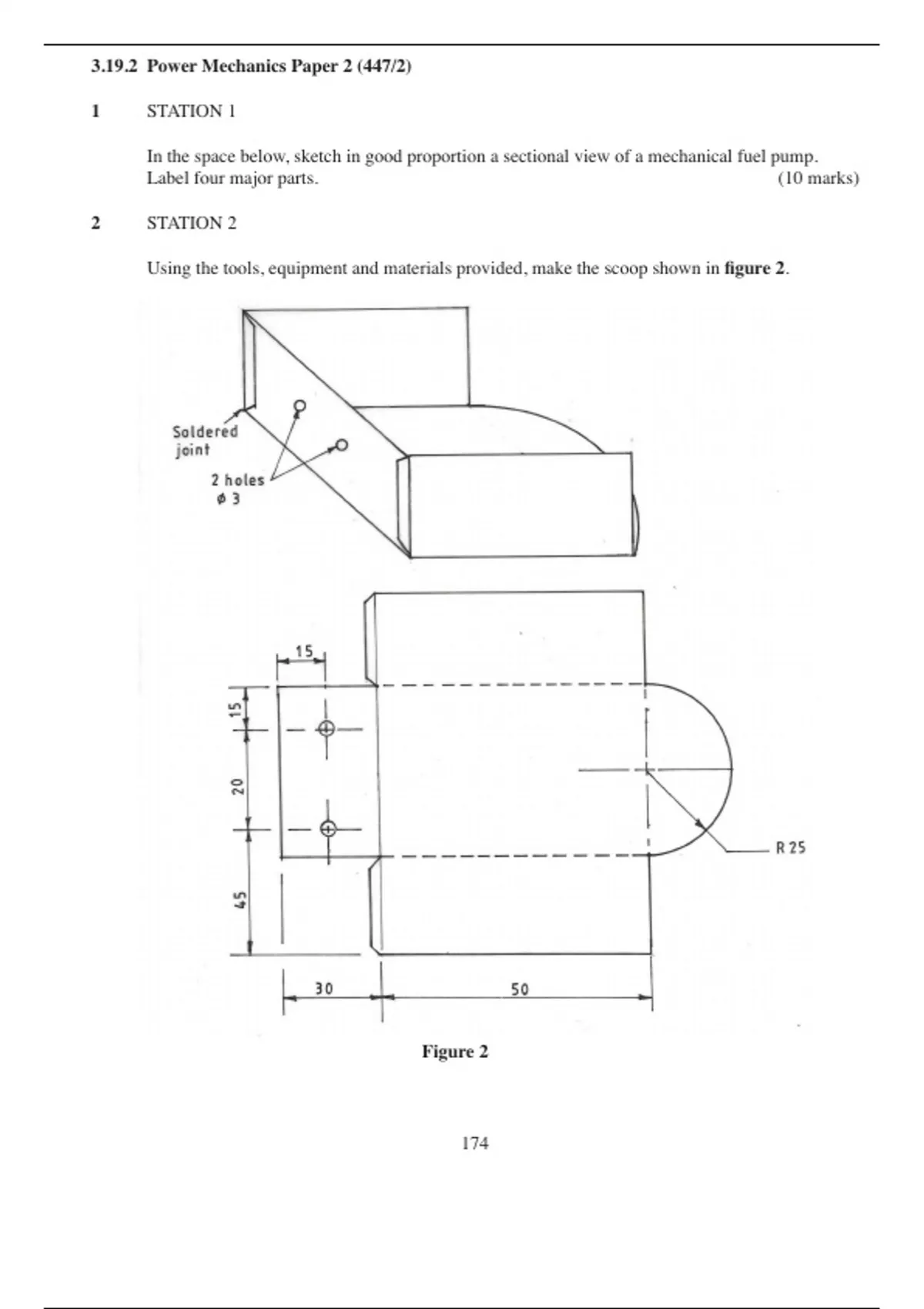

3.19.2 Power Mechanics Paper 2 (447/2)
1 STATION 1
In the space below, sketch in good proportion a sectional view of a mechanical fuel pump.
Label four major parts. (10 marks)
2 STATION 2
Using the tools, equipment and materials provided, make the scoop shown in !"#$%&.
Figure 2
174
