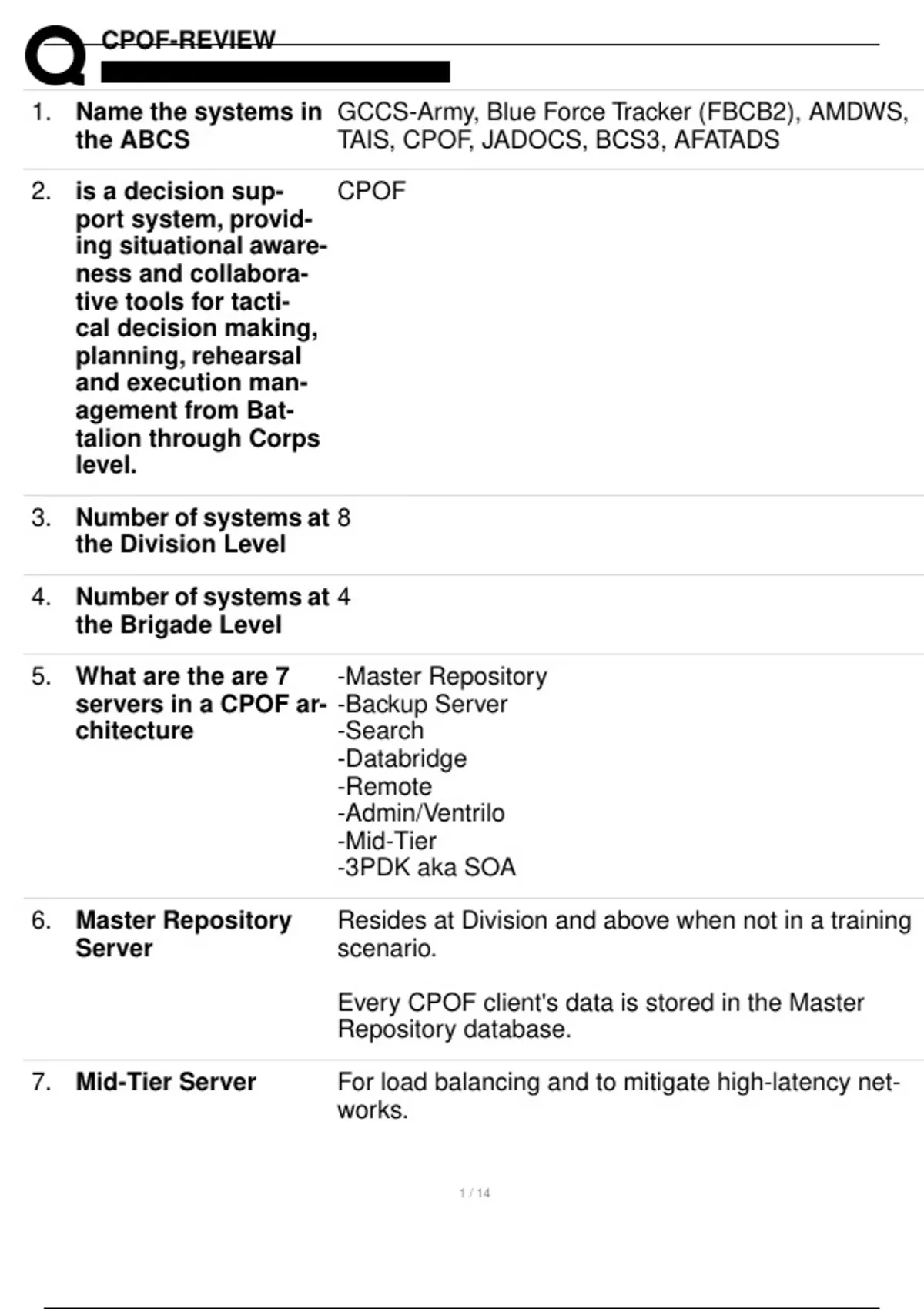

CPOF-REVIEW
1. Name the systems in GCCS-Army, Blue Force Tracker (FBCB2), AMDWS,
the ABCS TAIS, CPOF, JADOCS, BCS3, AFATADS
2. is a decision sup- CPOF
port system, provid-
ing situational aware-
ness and collabora-
tive tools for tacti-
cal decision making,
planning, rehearsal
and execution man-
agement from Bat-
talion through Corps
level.
3. Number of systems at 8
the Division Level
4. Number of systems at 4
the Brigade Level
5. What are the are 7 -Master Repository
servers in a CPOF ar- -Backup Server
chitecture -Search
-Databridge
-Remote
-Admin/Ventrilo
-Mid-Tier
-3PDK aka SOA
6. Master Repository Resides at Division and above when not in a training
Server scenario.
Every CPOF client's data is stored in the Master
Repository database.
7. Mid-Tier Server For load balancing and to mitigate high-latency net-
works.
, CPOF-REVIEW
Acts as an intermediary between the Master server.
8. Backup Server -Directly connected (physically or virtually) to the
Master Repository Server.
-Changes received by the Master Repository are sent
to the Backup and applied every 3 hours.
-Is not a high availability solution. It is a backup solu-
tion. As a backup solution, it does not take the place
of tape backups, etc.
-In a BC10 CPOF environment the Search Server
may use this server for searches.
9. Search Server Creates and periodically refreshes search indices for
pre-defined types of information within CPOF. The
Search server creates these indices against the Mas-
ter version of the repository.
10. Remote Admin/Ven- Allows administrators to monitor CPOF systems and
trilo do preventive maintenance.
Hosts the Ventrilo VoIP service.
11. Databridge -Single point of interface between CPOF and other
ABCS systems such as FBCB2/JCR,JBC-P, BCS3,
TAIS, DCGS-A, etc.
-Supports two-way exchange of data between the
various ABCS systems and CPOF.
-Runs Microsoft IIS which is used to import images
into CPOF system via Drag and Drop or the Snagit
application.
-Provides a means to import and export graphics in
various formats.
12. Data Dissemination Middleware infrastructure product, based on Web
Service (DDS) Services standards, that provides a foundation for the
exchange of data between ABCS WFAs.
Resides in a server on the BCCS stacks at Division
and Brigade. At the Battalion echelon it is on the TMC
Gateway.
