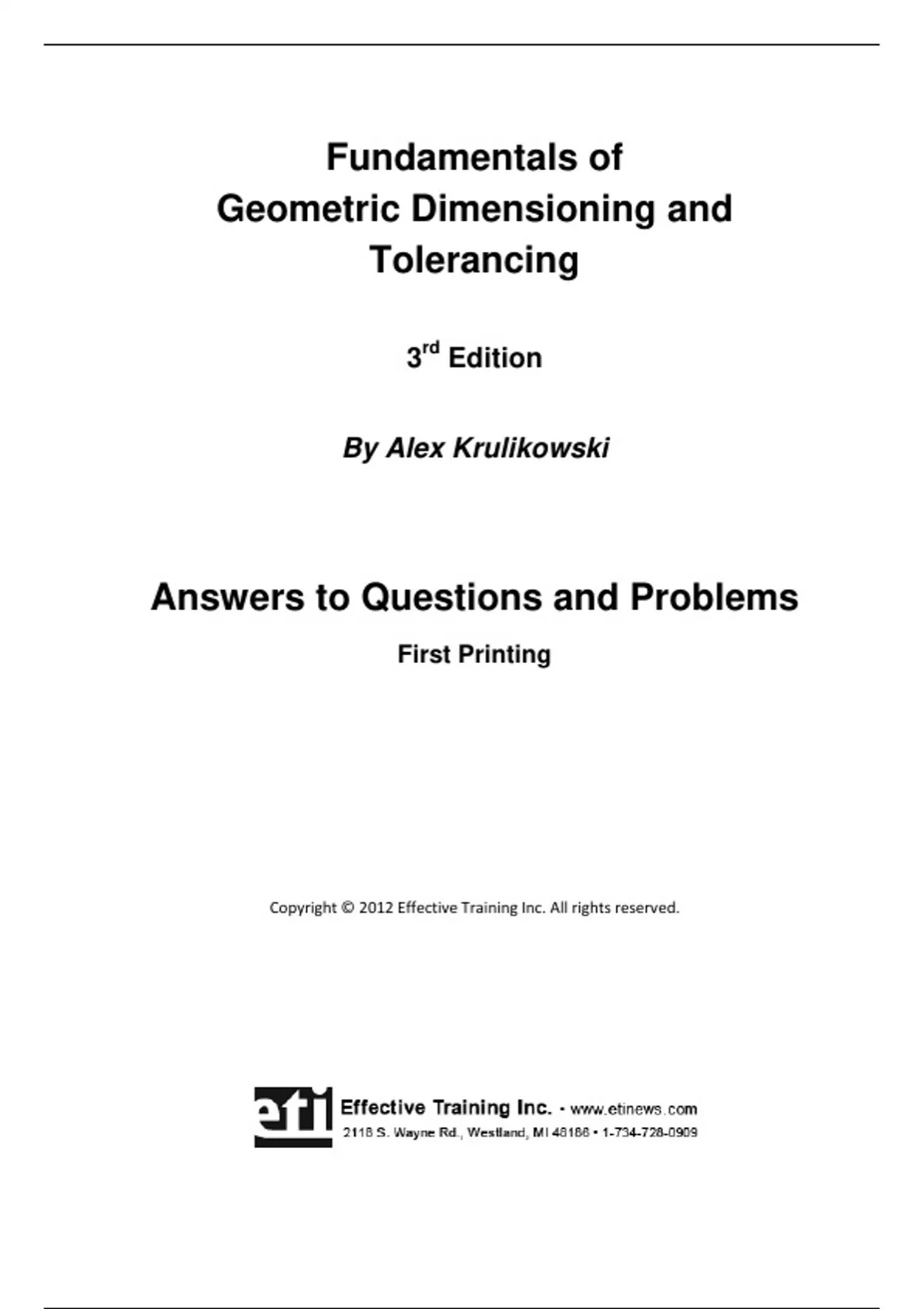

Fundamentals of Geometric Dimensioning and Tolerancing 3 rd Edition

undamentals of GD&T, 3rd Edition, by Alex Krulikowski – Answer Guide 11JUN12 Copyright © 2012 Effective Training Inc. Page 3 of 15 Chapter 1 True / False Multiple Choice Application Problems 1. T 2. F 3. F 4. T 5. T 6. T 7. T 1. C 2. D 3. D 4. D 5. D 1. ASME Y14.5-2009 2. Yes; it may be used as part of a contract, to resolve product acceptance disputes, or to prove compliance with regulations 3. It will cost a company in the form of money, time, materials, or customer satisfaction 4. Manufacturers need to interpret details to select a capable process, feed rates, and identify support fixtures Chapter 2 True / False Multiple Choice Application Problems 1. F 2. T 3. F 4. T 5. F 6. T 7. F 8. F 9. F 10. F 1. D 2. D 3. A 4. D 5. D 6. C 7. D 1. 1, 2, 3, 4, 5 – All of the notes under the notes section are general notes 2. THRU, THRU, 2 SURFACES, ELECTRO ETCH PART NUMBER AND REVISION LETTER HERE 3MM 3. None – There are no flags (polygons) around the general note numbers 4. A and G 5. B and E 6. C and F 7. E, F, and G 8. 59 1, 12 , 9. Millimeters 10. Degrees 11. No; because the user cannot determine if they are decimal degrees 12. Through general note #2 Chapter 3 True / False Multiple Choice Application Problems 1. F 2. F 3. T 4. T 5. F 6. T 7. T 8. F 9. F 1. D 2. B 3. A 4. D 5. C 6. C 7. B 8. B 1. A combination of coordinate tolerancing and GD&T 2. Not specified; most inspectors wouldn’t report a location for the hole 3. None; there is no location relationship tolerance (geometric tolerance) for this hole 4. More difficult because coordinate tolerances cannot express many of the relationships required for this part to function, and coordinate tolerances are more vague specifications 32.4 32.0 0 - 0.1 Fundamentals of GD&T, 3rd Edition, by Alex Krulikowski –
