Summary Electrical Cricut theory Basic formulas

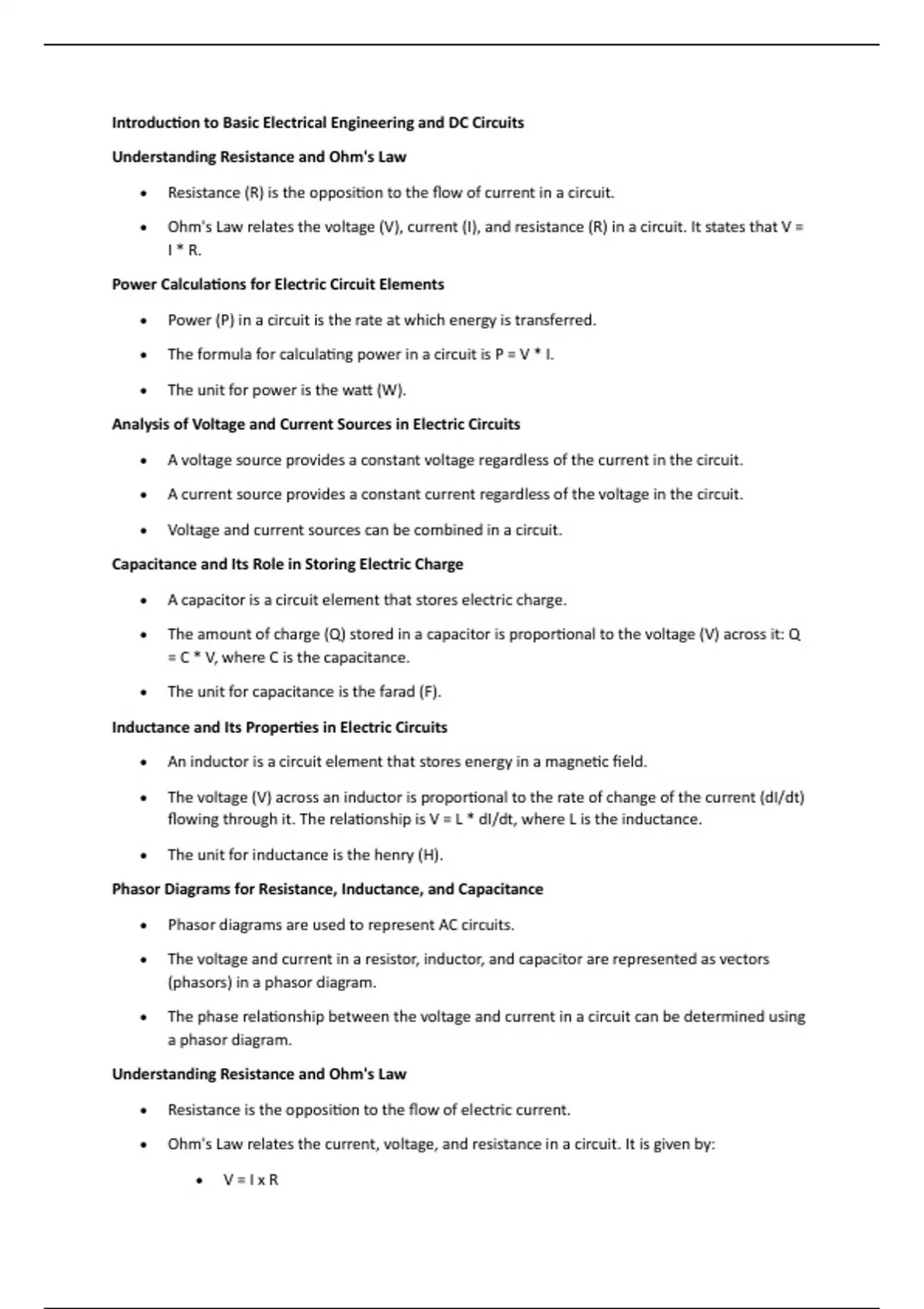

Introduction to Basic Electrical Engineering and DC Circuits

Understanding Resistance and Ohm's Law

• Resistance (R) is the opposition to the flow of current in a circuit.

• Ohm's Law relates the voltage (V), current (I), and resistance (R) in a circuit. It states that V =
I * R.

Power Calculations for Electric Circuit Elements

• Power (P) in a circuit is the rate at which energy is transferred.

• The formula for calculating power in a circuit is P = V * I.

• The unit for power is the watt (W).

Analysis of Voltage and Current Sources in Electric Circuits

• A voltage source provides a constant voltage regardless of the current in the circuit.

• A current source provides a constant current regardless of the voltage in the circuit.

• Voltage and current sources can be combined in a circuit.

Capacitance and Its Role in Storing Electric Charge

• A capacitor is a circuit element that stores electric charge.

• The amount of charge (Q) stored in a capacitor is proportional to the voltage (V) across it: Q
= C * V, where C is the capacitance.

• The unit for capacitance is the farad (F).

Inductance and Its Properties in Electric Circuits

• An inductor is a circuit element that stores energy in a magnetic field.

• The voltage (V) across an inductor is proportional to the rate of change of the current (dI/dt)
flowing through it. The relationship is V = L * dI/dt, where L is the inductance.

• The unit for inductance is the henry (H).

Phasor Diagrams for Resistance, Inductance, and Capacitance

• Phasor diagrams are used to represent AC circuits.

• The voltage and current in a resistor, inductor, and capacitor are represented as vectors
(phasors) in a phasor diagram.

• The phase relationship between the voltage and current in a circuit can be determined using
a phasor diagram.

Understanding Resistance and Ohm's Law

• Resistance is the opposition to the flow of electric current.

• Ohm's Law relates the current, voltage, and resistance in a circuit. It is given by:

• V=IxR

, • V is the voltage in volts

• I is the current in amperes

• R is the resistance in ohms

Power Calculations for Resistive Circuit Elements

• Power in an electric circuit is given by:

• P=VxI

• P is the power in watts

• For a resistive circuit element, power can also be calculated using Ohm's Law:

• P = I^2 x R

• P = V^2 / R

Analysis of Resistive Circuit Elements

• Voltage division:

• The voltage across any resistor in a series circuit can be calculated using:

• Vx = (Rx / Rtotal) x Vtotal

• Current division:

• The current through any resistor in a parallel circuit can be calculated using:

• Ix = (Rx / Rtotal) x Itotal

Basic Electrical Engineering and DC Circuits

• A DC circuit is a circuit in which the voltage and current do not vary with time.

• Basic electrical engineering involves the study of DC circuits, as well as other topics like
power systems and control systems.

Capacitance and Its Role in Storing Electric Charge

• A capacitor is a device that stores electric charge.

• The amount of charge that a capacitor can store is given by:

• Q=CxV

• Q is the charge in coulombs

• C is the capacitance in farads

• V is the voltage in volts

Inductance and Its Properties in Electric Circuits

• Inductance is the property of a circuit that opposes changes in current.

• The unit of inductance is the henry.
