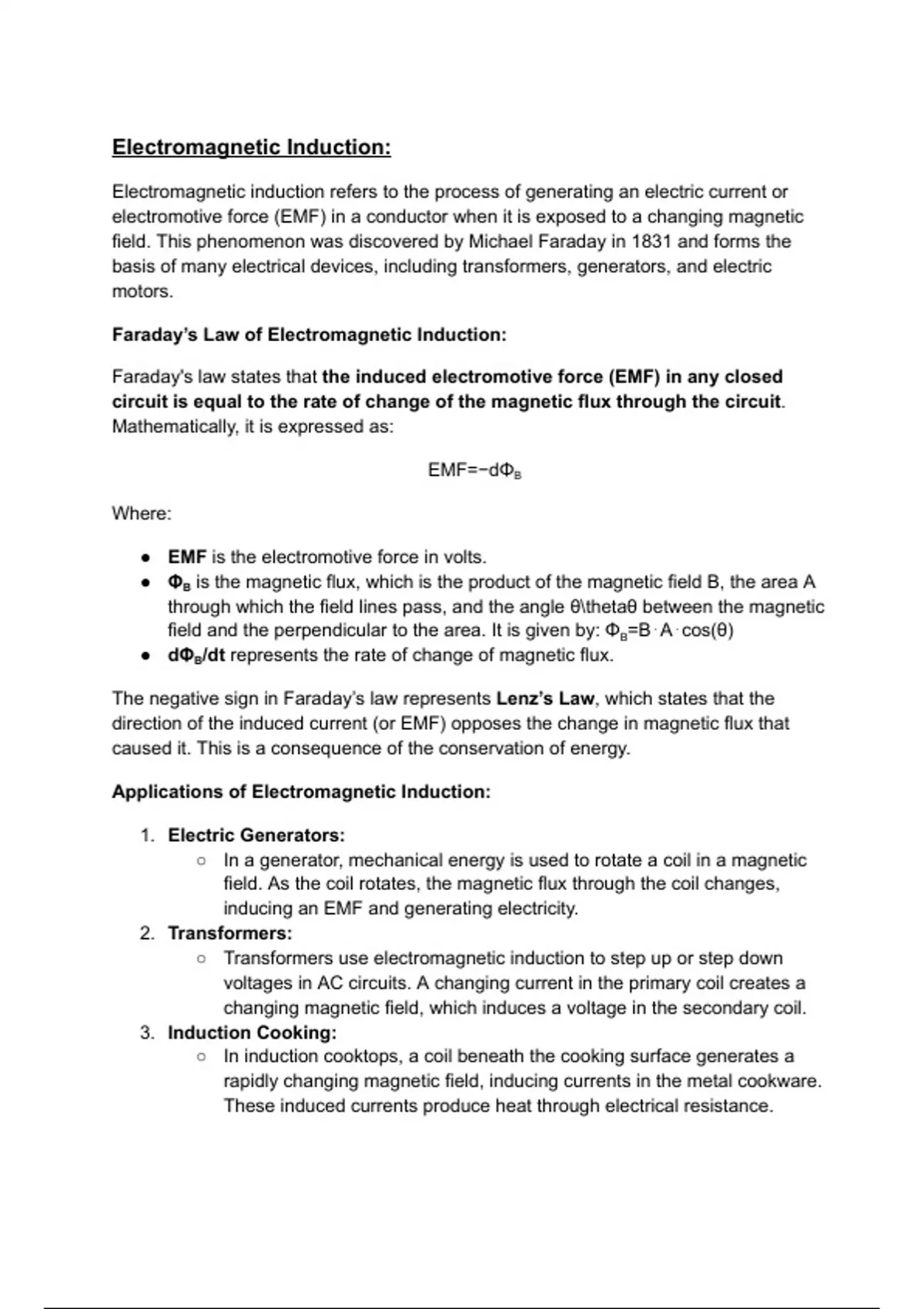

Electromagnetic Induction:
Electromagnetic induction refers to the process of generating an electric current or
electromotive force (EMF) in a conductor when it is exposed to a changing magnetic
field. This phenomenon was discovered by Michael Faraday in 1831 and forms the
basis of many electrical devices, including transformers, generators, and electric
motors.
Faraday’s Law of Electromagnetic Induction:
Faraday's law states that the induced electromotive force (EMF) in any closed
circuit is equal to the rate of change of the magnetic flux through the circuit.
Mathematically, it is expressed as:
EMF=−dΦB
Where:
● EMF is the electromotive force in volts.
● ΦBis the magnetic flux, which is the product of the magnetic field B, the area A
through which the field lines pass, and the angle θ\thetaθ between the magnetic
field and the perpendicular to the area. It is given by: ΦB=B⋅A⋅cos(θ)
● dΦB/dt represents the rate of change of magnetic flux.
The negative sign in Faraday’s law represents Lenz’s Law, which states that the
direction of the induced current (or EMF) opposes the change in magnetic flux that
caused it. This is a consequence of the conservation of energy.
Applications of Electromagnetic Induction:
1. Electric Generators:
○ In a generator, mechanical energy is used to rotate a coil in a magnetic
field. As the coil rotates, the magnetic flux through the coil changes,
inducing an EMF and generating electricity.
2. Transformers:
○ Transformers use electromagnetic induction to step up or step down
voltages in AC circuits. A changing current in the primary coil creates a
changing magnetic field, which induces a voltage in the secondary coil.
3. Induction Cooking:
○ In induction cooktops, a coil beneath the cooking surface generates a
rapidly changing magnetic field, inducing currents in the metal cookware.
These induced currents produce heat through electrical resistance.
